MPW/MPF – Polypropylene film Capacitors
  • MPW/MPF – Polypropylene film Capacitors

Photos are for informational purposes only. View product specification

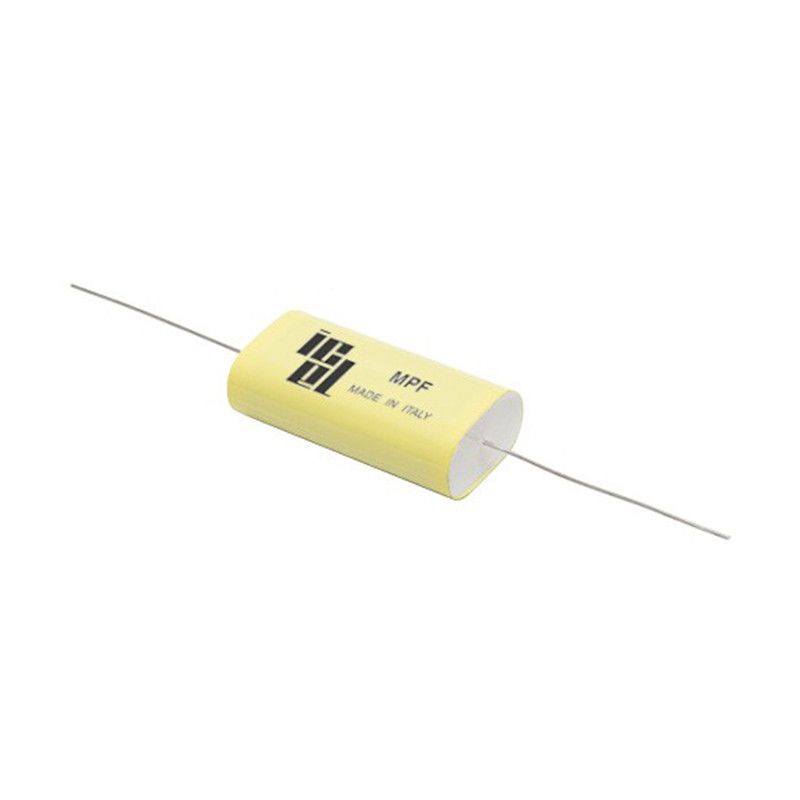

MPW/MPF – Polypropylene film Capacitors

Main Application

  • Blocking, filtering, bypassing, timing, coupling, decoupling,
  • audio applications, general applications in electronics
  • Low power switching applications
  • Medium-low pulse operation


Execution and reference standard

  • Extended metallized film
  • Internal series connection for Ur≥1000Vdc.
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/16, IEC 60068, RoHS

MPWUrCn (μF)du/dt (V/μs)Nom. size D (mm) x L (mm)
160 Vdc (90 Vac)0.068 ÷ 339 ÷ 445x13 ÷ 33.5x44
250 Vdc (200 Vac)0.022 ÷ 1511 ÷ 555x13 ÷ 34.5x44
400 Vdc (220 Vac)0.01 ÷ 6.822 ÷ 1105x13 ÷ 30x44
630 Vdc (250 Vac)0.0068 ÷ 4.733 ÷ 1905x13 ÷ 33.5x44
1000 Vdc (450 Vac)0.015 ÷ 0.4770 ÷ 1508.5x19 ÷ 22x32
1500 Vdc (600 Vac)0.001 ÷ 0.3390 ÷ 2504.5x13 ÷ 23x32



MPFUrCn (μF)du/dt (V/μs)Nom. size B (mm) x H (mm) x L (mm)
160 Vdc (90 Vac)0.33 ÷ 159 ÷ 255x9x19 ÷ 18x28x44
250 Vdc (200 Vac)0.15 ÷ 6.811 ÷ 315x9x19 ÷ 18.5x29x44
400 Vdc (220 Vac)0.068 ÷ 3.322 ÷ 615x8x19 ÷ 15x25x44
630 Vdc (250 Vac)0.033 ÷ 2.233 ÷ 1005x9x19 ÷ 17.5x27.5x44
1000 Vdc (450 Vac)0.047 ÷ 0.3370 ÷ 82.56x10x27 ÷ 13.5x23.5x32
1500 Vdc (600 Vac)0.01 ÷ 0.2290 ÷ 187.55x9x19 ÷ 14x23.5x32



Product Card - Download
