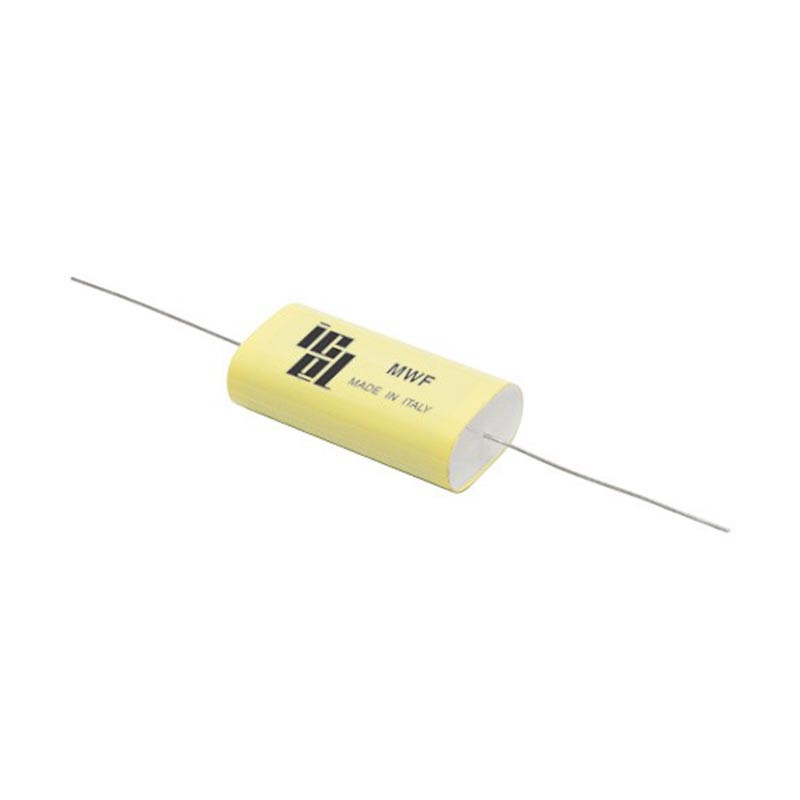

Photos are for informational purposes only. View product specification

MWR_MWF Polyester film Capacitors

Main applications

  • Blocking, filtering, bypassing, timing, coupling, decoupling, general applications in electronics
  • Low AC voltage motor running
  • Low power switching applications
  • Low pulse operation

Execution and Reference Standard

  • Extended metallized film
  • Internal series connection for Ur≥1000Vdc.
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/2, IEC 60068, RoHS


MWRUrCn (μF)du/dt (V/μs)Nom. size D (mm) x L (mm)
50 Vdc (30 Vac)1.5 ÷ 106 ÷ 97x13 ÷ 12x19
63 Vdc (40 Vac)0.22 ÷ 1004 ÷ 115x13 ÷ 30.5x44
100 Vdc (63 Vac)0.15 ÷ 684 ÷ 125x13 ÷ 32x44
250 Vdc (160 Vac)0.068 ÷ 336.5 ÷ 254.5x13 ÷ 35x44
400 Vdc (200 Vac)0.022 ÷ 1010 ÷ 404.5x13 ÷ 31.5x44
630 Vdc (220 Vac)0.01 ÷ 4.714 ÷ 604.5x13 ÷ 32.5x44
1000 Vdc (400 Vac)0.0047 ÷ 2.220 ÷ 805x13 ÷ 30x44
1500 Vdc (440 Vac)0.001 ÷ 1.525 ÷ 904.5x13 ÷ 31.5x44

MWFUrCn (μF)du/dt (V/μs)Nom. size D (mm) x L (mm)
63 Vdc (40 Vac)1.5 ÷ 334 ÷ 75.5x9.5x19 ÷ 15.5x25.5x32
100 Vdc (63 Vac)1 ÷ 474 ÷ 95x9x19 ÷ 20x30x44
250 Vdc (160 Vac)0.47 ÷ 156.5 ÷ 185.5x10x19 ÷ 18x28x44
400 Vdc (200 Vac)0.15 ÷ 6.810 ÷ 255x9x19 ÷ 20x30x44
630 Vdc (220 Vac)0.068 ÷ 3.314 ÷ 355x9x19 ÷ 21.5x31x44
1000 Vdc (400 Vac)0.033 ÷ 1.520 ÷ 404.5x9.5x19 ÷ 19x29x44
1500 Vdc (440 Vac)0.015 ÷ 125 ÷ 505x9x19 ÷ 20x30x44
