NE Multi Color Signal Light
  • NE Multi Color Signal Light

Photos are for informational purposes only. View product specification

Manufacturer: Patlite

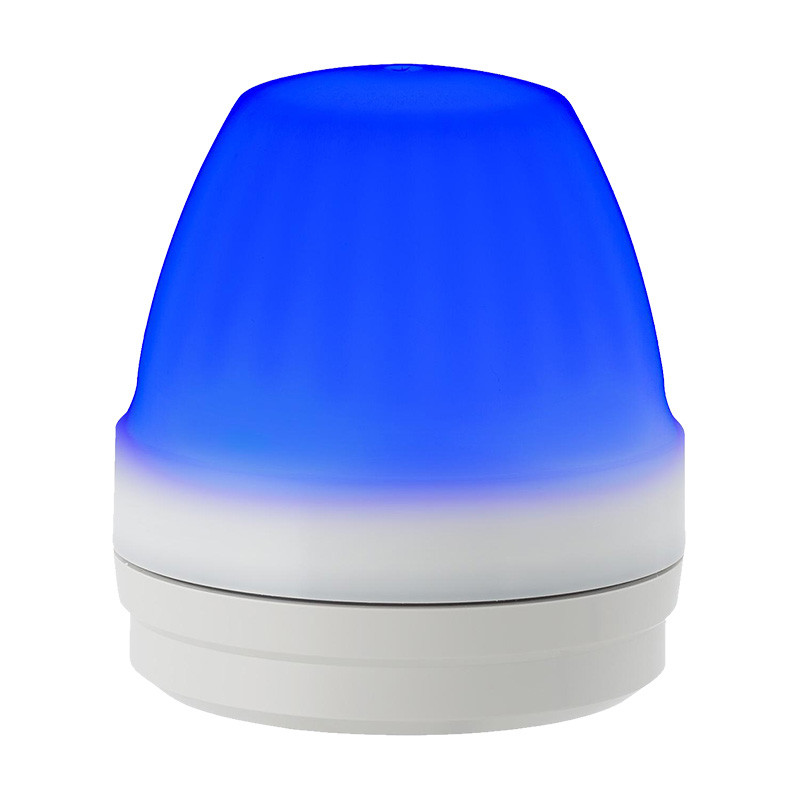

NE Multi Color Signal Light

Multi Color Signal Light NE-M1-CL7

This newly innovative compact LED signal light is designed for a long service life, multi-colored LED array for easy application in any environment, and excellent protection against moisture and dust with a protection rating of IP66 and IP67.

Specification

Model NE-M1-CL7
Operating voltages 24VDC (10V ~30V DC)
Power Red 50 mA
  Orange 53 mA
  Green 44 mA
  Blue 48 mA
  White 53 mA
  Blue 53 mA
  Purple 56 mA
Temperature -30º C…+60ºC
Mounting Surface mount, Threaded mount, Indoors only (any direction)
Protection ratings IP66
Cable 2m
Vibration resistance 19,6 m/s2
Weight 50 g

Dimensions
