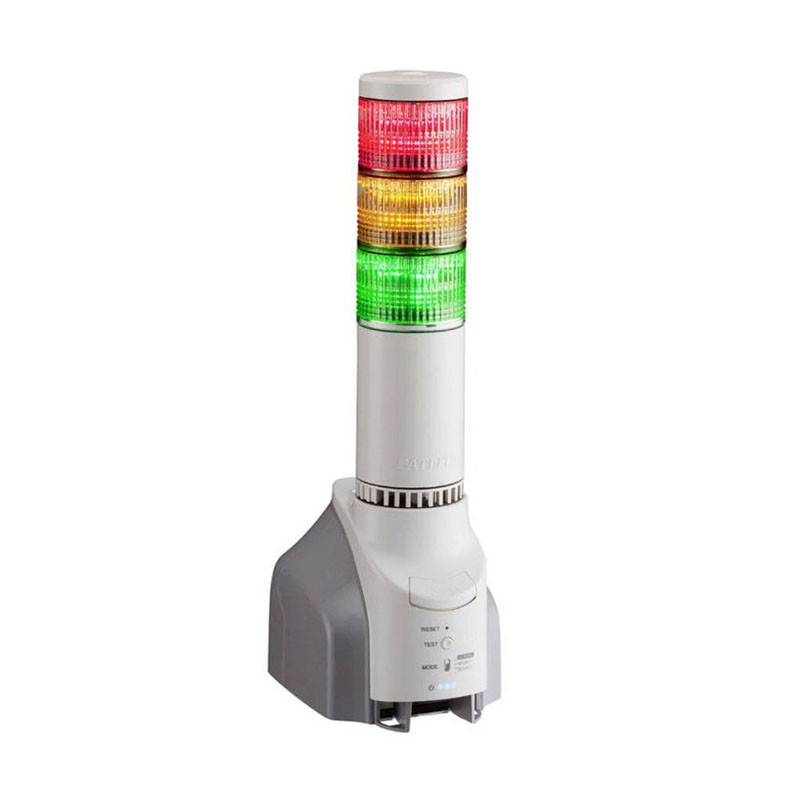

Network Monitor Signal Tower with MP3 NHL-3FV2/NHP-3FV2

Network Monitor Signal Tower with MP3 NHL-3FV2/NHP-3FV2

Monitor your network and be notified in real-time of predesignated events and device failures via visual and voice annunciator signals, and email alerts.

Product Features

Give Your Equipment a Voice

Alleviate alarm fatigue by utilizing the built-in MP3 voice annunciator feature. This feature allows you to load custom voice recordings to allow the NHL to tell your operators exactly what is happening on your network.

Quicker Response

Ping up to 24 devices and notify operators of ping failures in real-time with unambiguous visual and audible alerts.

Know You're Connected


The green LED unit can be configured to indicate the connection status between the NHL and your network.

Customizable to Fit Your Application

Standard configuration consists of a light tower with three LED segments and a programmable audible alarm with volume settings. Add up to 5 LED units for highly effective visual signaling.

Email Notifications

Alarms can trigger emails to be sent to up to 8 addresses per event so you will never miss a network signal.

Protocol Support

The NHL supports SNMP, HTTP, PNS (Developed by PATLITE), Socket Transmission command protocols. Alarms can send SNMP traps to network management systems.

Model Specifications
DIMENSIONSTower diameter : 60mm (NHL), 40mm (NHP)
OPERATING VOLTAGES24V DC (AC Adaptor 100V AC ~ 240V AC)
PROTOCOLS
  • Physical Layer : 10 BASE-T/100 BASE-TX
  • Data Link Layer : CSMA/CD
  • Network Layer : IP/ICMP/B6
  • Transport Layer : TCP/UDP
  • Application Layer : HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
FUNCTIONS
  • Ping Device Monitor
  • RSH Command
  • SNMP v1・v2C
  • Application Monitor
  • SOCKET
  • E-mail Transmission
  • Line Out
  • Easy Access Volume Control
  • Preset Sound : Buzzer ; 4 Selections Chime ; 3 Selections Message ; 3 Selections
MODULE COLORS
  • LED source Color : Red / Amber / Green
  • Lens Color : clear Lens
AUDIBLE STYLE
  • Audio File Formal : MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz
  • Bite Rate : 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s Constant Bit Rate (CBR) Only
  • Number of Playback Messages : USB Memory Transfer Package : 30 kinds, Web Setup Tool Registrations : 30 kinds, Preset Registrations : 10 kinds
CONFORMITY STANDARDS
  • RoHS Directive (EN 50581)
  • EMC Directive (EN 55032, EN 55024)
  • FCC Part15 Subpart B Class A, ICES-003 Class A
  • UL 1638, UL 464 CSA C22.2 No.205
  • KC (KN 61000-6-2, KN 61000-6-4)*1
  • PSE Compliant AC Adaptor

*1：Only N type and W type
 CE Marking
 UL/cUL Listed
 W type is an intemational model.
