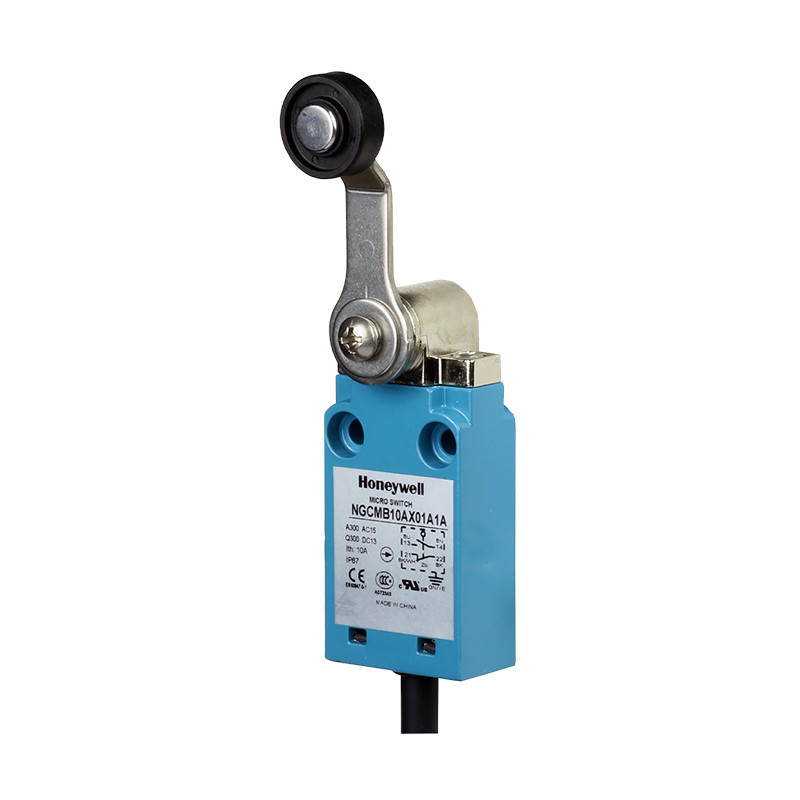

End switches of the NGC series

End switches of the NGC series

NGC series compact circuit breakers come in many different configurations. Depending on the needs, different working elements, different housing materials, single or double contacts (1NC / 1NO, 2NC / 2NO) are available. At the same time, they are combined with very good parameters such as IP67 protection, they can be used in places exposed to weather conditions. Additionally, they can be integrated with a cable that comes out from the bottom or side of the switch housing. Versions with M12 connector are also available. Switches have many approvals, including UL, CE, cUL and CCC.



Technical specifications:

contacts:
Case material:
Level of security:
Permissible operating temperature:
Contact load:


Permissible operating humidity:
Shock resistance:
SPDT lub DPDT
plastic or metal
IP67
-25*C do +70*C
1NC/1NO: 10 A; 2NC/2NO: 5 A
1NC/1NO: 400 V as per IEC 60947-5-1
2NC/2NO: 250 V as per IEC 60947-5-1
95%
10g (IEC 60068-2-6), allowable vibration range from 10 to 500 Hz. It has railway approvals.

Model configuration:
NGCMA2AX1A11
|
|
|
|
|
|
|
|
|
|
|



Dimensions of popular models:

Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG
Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG
Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG


Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG
Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG
Wyłączniki krańcówe serii NG Wyłączniki krańcówe serii NG
