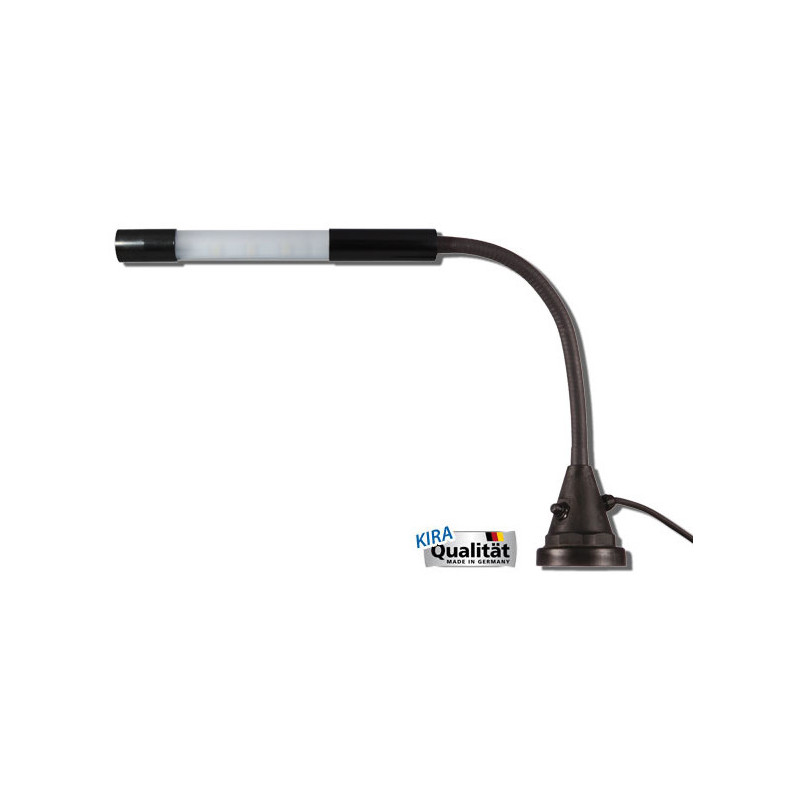

KE-LED 3003-P | LED WORKPLACE LAMP

KE-LED 3003-P | LED WORKPLACE LAMP
The KE-LED 3003-P/A is perfect for illuminating workstations on workbenches, machines or systems. Thanks to the flexible light holder tube, which is available in different lengths, the working light can be optimally aligned. Due to the special prism protection tube, a glare-free light is guaranteed. For easy and flexible mounting, the luminaire is available with a permanent magnet or a table screw clamp and for fixed mounting with a mounting plate.


Technical Data KE-LED 3003-P
Illuminant3x Power LEDs / 5000 Kelvin
Luminous fluxca. 350 Lumen
Voltages230V / 110V / 24V / 12V
Protective tubepolycarbonate, 30 mm Ø
Installationwith magnet, plate or clamp
Cable5 m H05RN-F 2 x 1,0 mm²
PlugSchuko-contour-plug (only 230V version)
Light holderflexibel, 300mm (optional 400mm or 500mm)
On-/Off switchyes
Protection (IP)IP54
Length of the lamp713 mm

with 230VVersionVoltageAmp.PlugWeightArt.-No.
KE-LED 3003-P/A-M-230with magnet230V AC0,060contour-1,5 kg131333
KE-LED 3003-P/A-P-230with plate230V AC0,060contour-1,4 kg131332
KE-LED 3003-P/A-K-230with clamp230V AC0,060contour-1,5 kg131329

with 110VVersionVoltageAmp.PlugWeightArt.-No.
KE-LED 3003-P/A-M-110with magnet110V AC/DC0,035w/o1,5 kg131346
KE-LED 3003-P/A-P-110with plate110V AC/DC0,035w/o1,4 kg131348
KE-LED 3003-P/A-K-110with clamp110V AC/DC0,035w/o1,5 kg131345

with 42VVersionVoltageAmp.PlugWeightArt.-No.
KE-LED 3003-P/A-M-42with magnet42V AC/DC0,085w/o1,5 kg131335
KE-LED 3003-P/A-P-42with plate42V AC/DC0,085w/o1,4 kg131349
KE-LED 3003-P/A-K-42with clamp42V AC/DC0,085w/o1,5 kg131343

with 24VVersionVoltageAmp.PlugWeightArt.-No.
KE-LED 3003-P/A-M-24with magnet24V AC/DC0,170w/o1,5 kg131347
KE-LED 3003-P/A-P-24with plate24V AC/DC0,170w/o1,4 kg131374
KE-LED 3003-P/A-K-24with clamp24V AC/DC0,170w/o1,5 kg131344

with 12VVersionVoltageAmp.PlugWeightArt.-No.
KE-LED 3003-P/A-M-12with magnet12V AC/DC0,170w/o1,5 kg131347
KE-LED 3003-P/A-P-12with plate12V AC/DC0,170w/o1,4 kg131374
KE-LED 3003-P/A-K-12with clamp12V AC/DC0,170w/o1,5 kg131344



TypeDimensions in mm
abcd
KE-LED 3003-P/...71315030300
