One phase capacitors for power factor correction
  • One phase capacitors for power factor correction

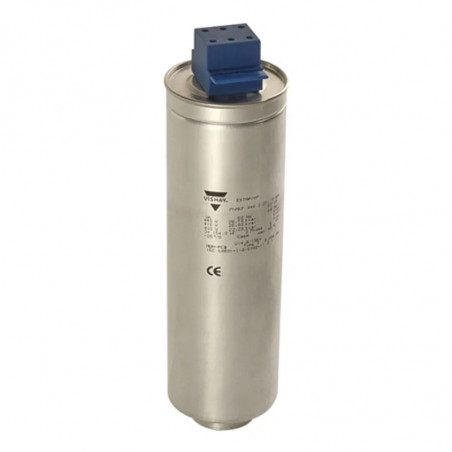

Photos are for informational purposes only. View product specification

Manufacturer: Vishay

One phase capacitors for power factor correction

ONE PHASE CAPACITORS FOR POWER FACTOR CORRECTION

TypeCatalogue numberPower
[kVAr]
Capacity
[µF]
Current
[A]
Dimensions
ØxH [mm]
Weight
[kg]
Drawing number
PhMKP400.1.01,67 26186 1,67 33,2 4,2 64x72 0,3 1
PhMKP400.1.02,50 46232 2,5 49,7 6,3 64x82 0,4 1
PhMKP400.1.03,33 33324 3,33 66,2 8,3 64x97 0,4 1
PhMKP400.1.05 33325 5 99,5 12,5 64x140 0,5 1
PhMKP400.1.06,67 33326 6,67 132,7 16,7 64x190 0,7 1
PhMKP400.1.08,33 46233 8,33 165,7 20,8 64x190 0,9 1
PhMKP400.1.10 46235 10 199 25 84,4x140 1,4 2
PhMKP400.1.16,7 33413 16,7 331 41,6 84,4x240 1,7 2

Caution
  Nominal voltage 400V*, 50Hz
* - Operation at 415 V possible

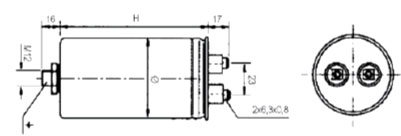

Drawing 1
Drawing 2
