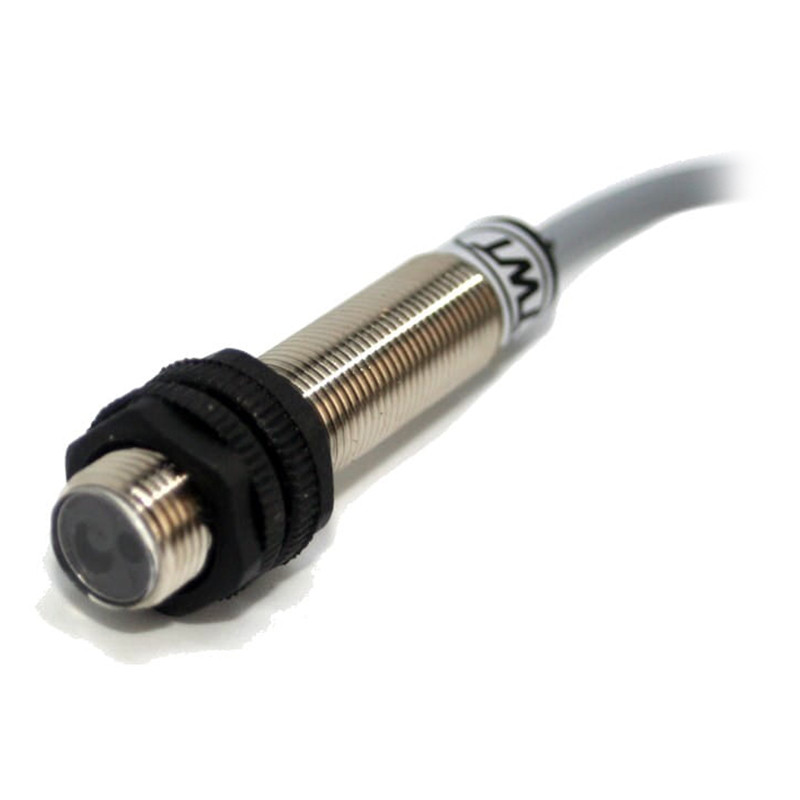

Optic reflection sensors - TOO series - npn/pnp DC 4 wires
  • Optic reflection sensors - TOO series - npn/pnp DC 4 wires

Photos are for informational purposes only. View product specification

Optic reflection sensors - TOO series - npn/pnp DC 4 wires

Properties
NPN/PNP - 4 cable output NO or NC
• metal casing
• 10 - 30V DC, 150mA
• current and over voltage output protection.
• LED signalisation
• IP65
Specification
Supply voltage
10-30V DC
Supply voltage ripple
≤ 3,5V
Load current
150mA
Current consumption
< 20mA
Residual voltage
< 2,5V DC
Residual current
<10μA
Output resistance
Open collector
Light source
LED IR
Output
NPN/PNP NO and NC
Switching frequency (impulse/break 1:1)          150Hz
Optic circuit
Glass lens
Operation temperature
-10°C - +55°C
Protection level
IP 65
Casing
Nickled brass
Connection method
PCW cable 2m., 4x0,14mm2

TOO OPTIC REFLECTION SENSORS with output cable
Metal casing M18x1 M18x1 M18x1 M18x1 M30x1,5
Sensitivity zone 100 200 400 1000 2000
Operation area 0-100mm 0-200mm 0-400mm 0-1000mm 0-2000mm
Object dimensions white cardboard
200X200mm
white cardboard
200X200mm
  white cardboard
200X200mm
white cardboard
200X200mm
Sensitivity regulation potentiometer potentiometer potentiometer potentiometer potentiometer
Sensor marking NC
NO
TOO18-100R
TOO18-100Z
TOO18-200R
TOO18-200Z
TOO18-400R
TOO18-400Z
TOO18-1000R
TOO18-1000Z
TOO30-2000R
TOO30-2000Z


TOO OPTIC REFLECTION SENSORS M12 with connector
Operation area M18x1 M18x1 M18x1 M18x1 M30x1,5
Sensitivity area 100 200 400 1000 2000
Operation zone 0-100mm 0-200mm 0-400mm 0-1000mm 0-2000mm
Object dimensions white cardboard 200X200mm white cardboard 200X200mm   white cardboard
200X200mm
white cardboard 200X200mm
Sensitivity control - - - - potentiometer
Sensor marking NC
NO
TOO18-100RK
TOO18-100ZK
TOO18-200RK
TOO18-200ZK
TOO18-400RK
TOO18-400ZK
TOO18-1000RK
TOO18-1000ZK
TOO30-2000RK
TOO30-2000ZK

M12-connector in sensor
Połączenia
1 10-30V DC brown
2 wy NPM white
3 0V DC blue
