Optic reflection sensors - tor series - npn/pnp DC 4 wires
  • Optic reflection sensors - tor series - npn/pnp DC 4 wires

Photos are for informational purposes only. View product specification

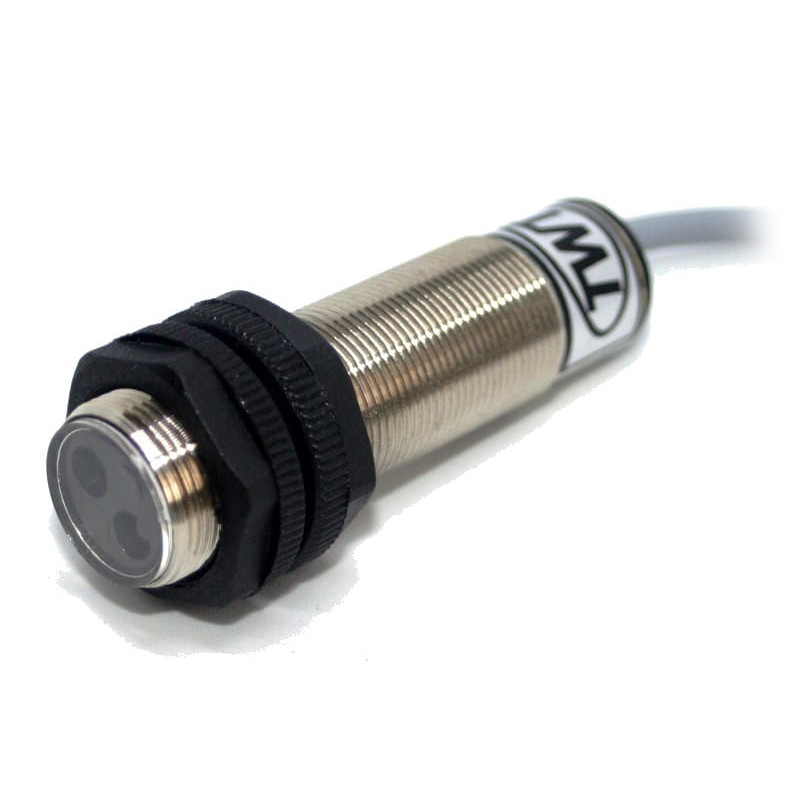

Optic reflection sensors - tor series - npn/pnp DC 4 wires

Properties
• PNP - 4 cable output NO or NC
• metal casing
• 10 - 30V DC, 150mA
• current and overvoltage output
• LED signalisation
• IP65
Specification
Power supply
10-30V DC
Power supply ripple
≤ 3,5V
Load current
150mA
Power consumption
< 20mA
Residual voltage
< 2,5V DC
Residual current
< 10µA
Output resistance
Open collector
Output
NPN/PNP NOor NC
Light source
LED IR
Switching frequency (impulse/break 1:1)          150Hz
Optic circuit
glass lens
Operation temperature
-10°C - +55°C
Protection level
IP 65
Casing
Nickled brass
Connection type
calbe PCW 2m., 4x0,14mm2


TOO OPTIC REFLECTION SENSORS with output cable
Metal casing M18x1 M18x1 M30x1,5 M30x1,5
Sensitivity area 1000 3000 4000 8000
Range 0-1m 0-3m 0-4m 0-8m
Reflection element reflector Ø80mm reflector Ø80mm reflector Ø80mm reflector Ø80mm
Sensitivity control potentiometer potentiometer potentiometer potentiometer
Sensor marking output NC
output NO
TOR18-1000R
TOR18-1000Z
TOR18-3000R TOR18-3000Z TOR18-4000R TOR18-4000Z TOR18-8000R
TOR18-8000Z


TOO OPTIC REFLECTION SENSOR with M12 connector
Metal casing M18x1 M18x1 M30x1,5 M30x1,5
Sensitivity area 1000 3000 4000 8000
Range 0-1m 0-3m 0-4m 0-8m
Reflection element reflector Ø80mm reflector Ø80mm reflector Ø80mm reflector Ø80mm
Sensitivity control - - - potentiometer
Sensor marking output NC
output NO
TOR18-1000RK TOR18-1000ZK TOR18-3000RK TOR18-3000ZK TOR18-4000RK
TOR18-4000ZK
TOR18-8000RK
TOR18-8000ZK

M12 - connector in sensor
Połączenia
1 10-30V DC brown
2 wy npn white
3 0V DC blue
4 wy PNP black
