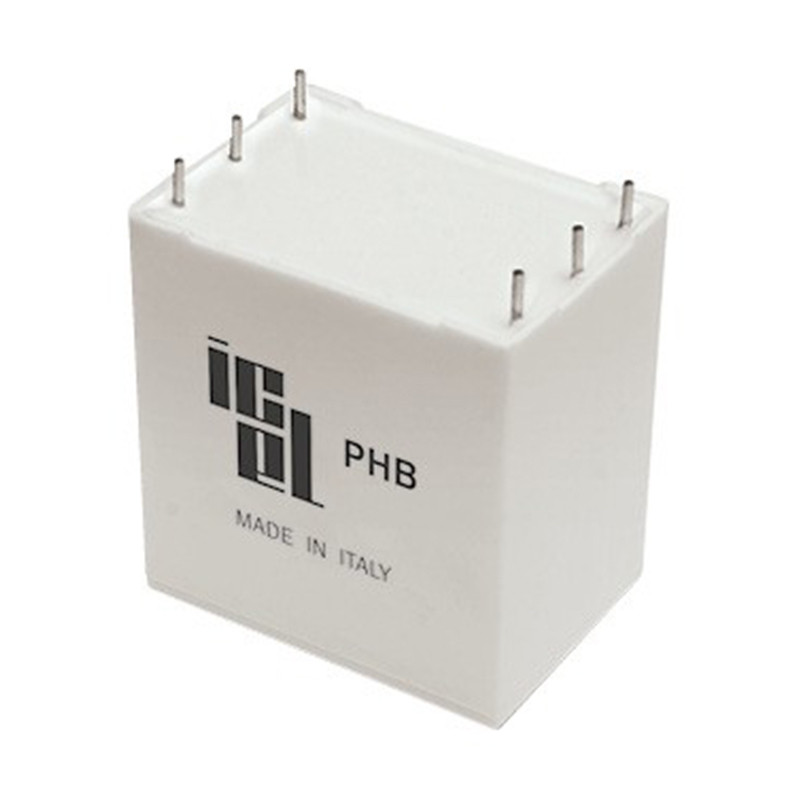

PHB/RHB – Polypropylene film Capacitors
  • PHB/RHB – Polypropylene film Capacitors

Photos are for informational purposes only. View product specification

PHB/RHB – Polypropylene film Capacitors

Main applications

  • Switching capacitor for industrial and motor speed controls
  • High frequency electronic ballasts, switching mode power supplies,
  • resonant circuits, induction heaters, high-end audio applications

Execution and reference standard

  • Extended metallized film
  • Internal series connection for Ur≥850Vdc
  • Box with multiple (2, 4 or 6) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS


PHB/RHBUrCn (μF)du/dt (V/μs)Irms max. (A)Nom. size D (mm) x L (mm)Pitch (mm)
250 Vdc (150/160 Vac)1 ÷ 10015 ÷ 504.5 ÷ 34.57x16x26.5 ÷ 38x57.5x57.522.5 ÷ 52.5
330 Vdc (200/220 Vac)0.68 ÷ 6017 ÷ 605 ÷ 337x16x26.5 ÷ 38x57.5x57.522.5 ÷ 52.5
400 Vdc (275 Vac)0.47 ÷ 3520 ÷ 754.5 ÷ 30.57x16x26.5 ÷ 38x57.5x57.522.5 ÷ 52.5
435 Vdc (260 Vac)4.7 ÷ 4032.5 ÷ 7011 ÷ 2718x33x32 ÷ 38x57.5x57.527.5 ÷ 52.5
570 Vdc (330 Vac)1.5 ÷ 2543.5 ÷ 957 ÷ 2915x24.5x32 ÷ 38x57.5x57.527.5 ÷ 52.5
600 Vdc (350Vac)0.22 ÷ 2030 ÷ 953.5 ÷ 30.57x16x26.5 ÷ 38x57.5x57.527.5 ÷ 52.5
675 Vdc (370 Vac)1.2 ÷ 18.550 ÷ 1106.5 ÷ 28.515x24.5x32 ÷ 38x57.5x57.527.5 ÷ 52.5
700 Vdc (400 Vac)0.15 ÷ 12.540 ÷ 1354 ÷ 29.57x16x26.5 ÷ 38x57.5x57.527.5 ÷ 52.5
850 Vdc (500 Vac)0.1 ÷ 8.2110 ÷ 3754 ÷ 367x16x26.5 ÷ 38x57.5x57.527.5 ÷ 52.5

Product Card - Download
