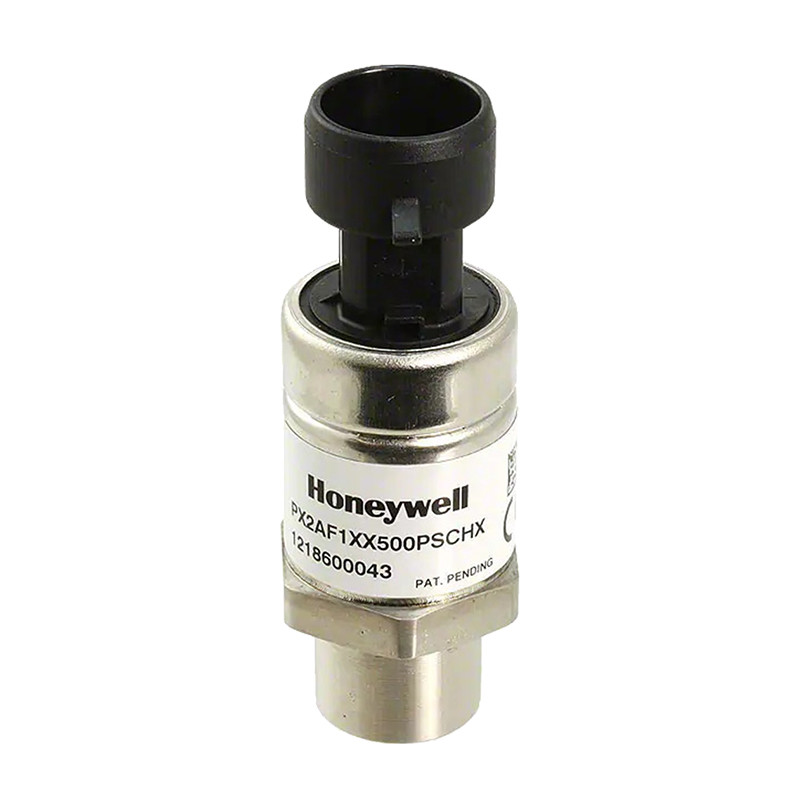

Pressure Transducers series PX2
  • Pressure Transducers series PX2

Photos are for informational purposes only. View product specification

Manufacturer: Honeywell

Pressure Transducers series PX2

Pressure Transducers series PX2

PX2 Series Pressure Transmitters is a solution designed to measure the pressure in both the gas, dedicated to applications such as:
• Compressors
• Cooling systems
• pneumatic systems

Pressure ranges: 1 bar to 46 bar
100 kPa to 4.6 MPa
15 psi to 667 psi
Pressure reference: Absolute or sealed gage.
Port types:: NPT 1/4-18 ; NPT 1/8-27 ; 9/16-18 UNF ; 7/16-20 UNF ;
M12 x 1.5 ; G1/4 ; G1/8
Connector types: Konektor (różne rodzaje) / Przewód (od 1m do 5m)
Housing: 304 stainless steel, plastic electrical connection
Operating temperature: -40 °C to 125 °C
Accuracy: 0,25% full scale
The maximum error: 2% full scale
Output signal: an analog signal proportional to the voltage power supply orlub 1..6 VDC / 0,25..10,25 VDC / 0,5..4,5 VDC
/ 1..5 VDC / 4..20 mA
