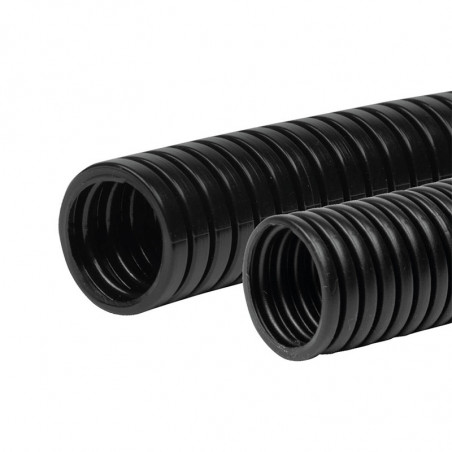

Protective pipes FFMYD PA12 BS
  • Protective pipes FFMYD PA12 BS

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Fränkische

Protective Peszel FFMYD PA12 BS

Technical data

Material
PA 12 z ochroną ogniową
Max operation temperature
3000 h 110 OC

500 h 150 OC
Min operation temperature
-40OC
Flammability class
FMVSS 302 UL94 V2

self extinguishing
Non halogen
no
Material declaration needed
no
other informations
Chemical resistance

Fuels, Mineral oils, grease, dis solvents.
cut products
420-xxx-10
cut products
request
special colours
request


Dimensions

product number black colour cut product number grey colour Nominal diameter NW Ø - I
[mm]
Ø - A
[mm]

420-003-00

422-003-10

3

3,0

5,1

420-004-00

422-004-10

4,5

4,5

7,1

420-005-00

422-005-10

5

5,0

7,1

420-006-00

422-006-10

6

6,1

8,7

420-007-00

422-007-10

7,5

6,6

10,0

420-008-00

422-008-10

8,5

8,4

11,5

420-010-00

422-010-10

10

9,8

12,8

420-011-00

422-011-10

11

10,5

13,6

420-012-00

422-012-10

12

12,3

15,7

420-013-00

422-013-10

13

12,7

16,0

420-014-00

422-014-10

14

14,2

18,5

420-016-00

422-016-10

16

14,9

18,9

420-017-00

422-017-10

17

16,6

21,1

420-019-00

422-019-10

19

19,2

24,2

420-022-00

422-022-10

22

21,2

25,5

420-023-00

422-023-10

23

23,1

28,4

420-026-00

422-026-10

26

25,7

31,2

420-029-00

422-029-10

29

28,9

34,5

420-033-00

422-033-10

33

32,8

38,3

420-037-00

422-037-10

37

34,0

42,2

420-050-00

422-050-10

50

45,6

53,8

420-065-00

422-065-10

65

62,7

73,5

420-075-00

422-075-10

75

76,7

85,2

420-100-00

422-100-10

100

101,0

110,0
