PVC insulated heating cords - C1P - C1P/T - C1P/I

PVC insulated heating cords - C1P - C1P/T - C1P/I

Aplications

C1P, C1P/T and C1P/I heating cords are mainly used in the household electrical or refrigeration industries, or in machines requiring protection against freezing or temperature maintenance. To ensure that these heating cables elements enjoy a long service life, we recommend using a control device.


Characterictics
  • UL Recognized cords on request.

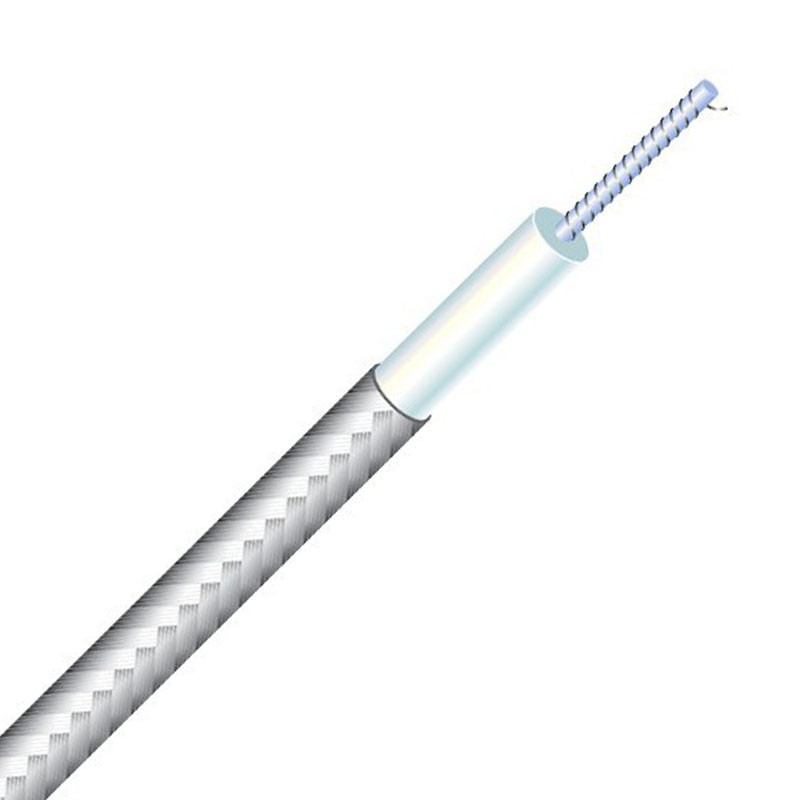

  • C1P: PVC insulated heating cords.
  • C1P/T: PVC insulated heating cords with tinned copper braid for mechanical protection and earthing.
  • C1P/I: PVC insulated heating cords with stainless steel braid for mechanical protection and earthing.

PRODUCTSINSULATION CLASS
C1PCLASS 0 (single insualated)
CLASS III (if low voltage)
C1P/T – C1P/ICLASS I (earthing)

 C1PC1P/T - C1P/
SupportFibre glass
Ø 0.7 or Ø 1.1 mm
Heating wirenickel-copper or nickel-chrome
InsultaionPVC 105°C
Diameter2.0 to 3.0 mm2.3 to 3.3 mm
Max. ohmic value5000 Ω/m
Max. power15 W/m
Max. voltage600 V
Permissible surface temperaturefrom - 30 °C to + 200 °C
TolerancesResistance ± 10 %
Diameter + 0.2 /- 0.1 mm
