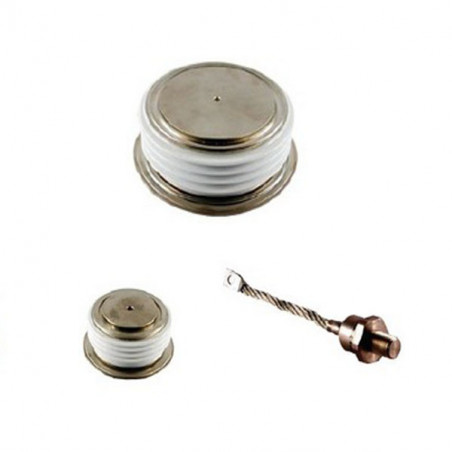

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: KUBARA LAMINA S.A.

Rectifier diodes

TypeIF(AV)/TC
 [A/°C]		URRM
[V]		IFSM
[A]		I2t
 [A2s]		Rthjc
[°C/W]		Torque ForceCasing Drawing number:
D22-10(R) 10/105 100-1600 190 180 2 1,2-1,5 1
D32-32(R) 32/100 100-1400 500 1250 0,9 2,0-2,5 2
D42-40(R) 40/95 100-1400 600 1800 0,9 Nm
D52-100(R) 100/140 400-1200 2100 22000 0,25 14-17 3,4
  100/125 1400-1600       Nm
D51-100(R) 100/125 1800-2000
D52-150(R) 150/120 400-1200 2700 36000 0,25 14-17
  150/105 1400-1600       Nm
D52-200(R) 200/110 400-1200 2900 42000 0,25 14-17
  200/95 1400-1600 2900 42000 0,25 14-17
D62-200(R); D66-200(R) 200/140 400-1200 5000 125000 0,17 28-32 5,6
  200/125 1400-1600       Nm
D61-200(R); D64-200(R) 200/125 1800-3200
D62-250(R); D66-250(R) 250/130 400-1200 5500 150000
  250/115 1400-1600
D61-250(R); D64-250(R) 250/115 1800-3200
D62-300(R); D66-300(R) 300/125 400-1200 6300 198000 0,15
  300/110 1400-1600
D61-300(R); D64-300(R) 300/115 1800-2000
D71-300(R); D74-300(R) 300/115 2000-4000 6300 200000 0,12 38-41 7
D71-450(R); D74-450(R) 450/115 400-1200 7700 300000 0,12 Nm
  450/100 1400-3200
D71-600(R); D74-600(R) 600/100 400-1200 9000 405000 0,12
D63-300 300/140 400-1200 5000 125000 0,095 4,5-6,2 9
  300/125 1400-3000       kN
D63-400 400/125 400-1200 5500 150000
  400/110 1400-3000
D73-500 500/115 2000-4400 6400 204000 0,07 9-11 10
D73-800 800/95 400-1200 7700 30000   kN
  800/80 1400-3200
D75-1100 1100/75 1400-2400 9000 405000 0,04 9-11 11
D75-1400 1400/75 400-1200 11000 605000   kN
D83-1000 1000/65 400-4400 11400 650000 0,037 12-14 10
D83-1200 1200/85 400-3200 14800 1090000   kN
D83-1400 1400/70 400-800 15800 1250000
D95-1600 1600/85 3000-4400 17000 1440000 0,023 22,5-25 12
D95-1800 1800/120 400-2000 19600 1920000   kN
  1800/105 2200-3200
D95-2200 2200/100 1400-1600 23000 2640000
D95-3000 3000/90 200-1200 25000 3120000
