Reversible relays - type RCI
  • Reversible relays - type RCI

Photos are for informational purposes only. View product specification

Manufacturer: Danfoss

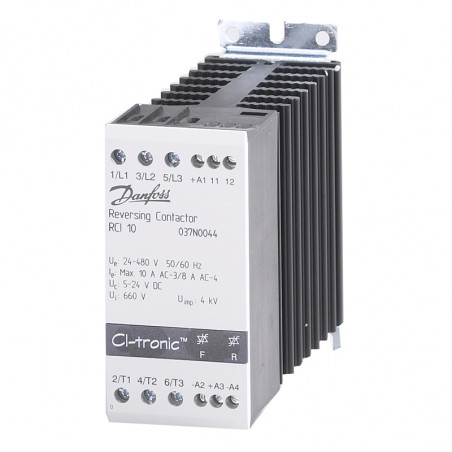

Reversible relays - type RCI

Reversible relays - type RCI
Technical data
•Module assembly with radiator
• DIN assembled
• internal protection varistor,
• current  up to 10 A (AC-3),
• power supply 480 VAC,
• universal control voltage
• Build in operation status indicator,

•Typical application:
belt conveyor flight,packing lines
•Execution standard
IEC/EN 60947-4-2
• Certificates
CE, CSA i NRTL/C

Table

Power supply
[VAC]
Max motor current
[A]
Max motor power
[kW/HP]
Control voltageDimensions
[mm]
TypeCatalogue number
200-480 10 4 kW/5.5 HP 24-230 V AC/DC 45 RCI 10 037N0043
200-480 10 4 kW/5.5 HP 5-24 V DC 45 RCMO 037N0044

Wymiary[mm]

Connection scheme

General parameters

ParameterValue
Type 1 fuse protection 50A gL/ gG
Type 2 fuse protection 450 A2s
