Photos are for informational purposes only. View product specification
please use latin characters

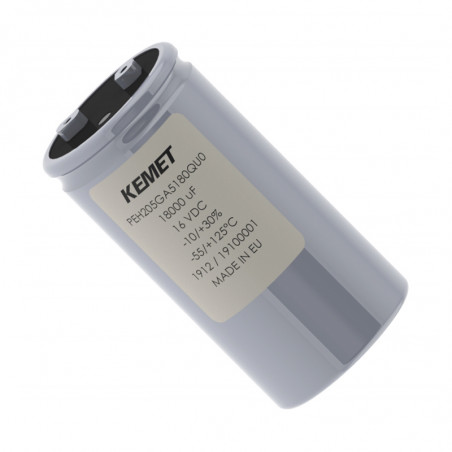

Series PEH205, +125°C
Marking method
PEH205 | G | A | 518 | 0 | Q | U0 |
---|---|---|---|---|---|---|
Series | Rated voltage (VDC) | Casing Code | Capacitance Code (μF) | Version | Capacitance Tolerance | Mounting Method |
Electrolytic Capacitor | G = 16 H = 25 K = 40 L = 55 M = 63 P = 100 |
See table | The last two digits represent significant figures. The first digit specifies the total number of digits. | 0 = Standard | Q = −10 + 30% |
U0 = without fastening screw |
Special features
Item | Special features | ||
---|---|---|---|
Capacitance range | 1,500 – 390,000 µF | ||
Voltage range | 16 – 100 VDC | ||
Operating Temperature | −55 to +125°C | ||
Capacity tolerance | −10/+30% at 100 Hz/+20°C | ||
Life Time | D (mm) | VN i IR w +125°C (h) | |
D ≤ 50 | 4,000 | ||
D > 50 | 8,000 | ||
Storage time | 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC | ||
Norms | IEC 60384–4 long |
Tabela wymiarów
Reference Size (mm) | Casing | Dimensions in [mm] | Weight [g] | ||||
---|---|---|---|---|---|---|---|
D | L1 | L3 | a | Fixing screw (M x H) | |||
±0.4 | ±1.0 | ±1.0 | ±0.5 | Nominal | |||
35 x 51 | A | 35.0 | 51.5 | 58.0 | 13.0 | M8 x 12 | 70.0 |
35 x 75 | C | 35.0 | 73.5 | 80.0 | 13.0 | M8 x 12 | 105.0 |
35 x 95 | D | 35.0 | 94.5 | 101.0 | 13.0 | M8 x 12 | 130.0 |
50 x 75 | H | 50.0 | 74.5 | 81.0 | 22.0 | M12 x 16 | 180.0 |
65 x 105 | O | 65.0 | 106.0 | 111.3 | 28.5 | M12 x 16 | 415.0 |
75 x 105 | T | 75.0 | 106.0 | 111.3 | 32.0 | M12 x 16 | 585.0 |
75 x 145 | V | 75.0 | 146.0 | 151.3 | 32.0 | M12 x 16 | 800.0 |
Type of Terminals
Reference Diameter | Thread | Style | Dimensions in [mm] | |
---|---|---|---|---|
d | b | |||
35 | M5 | Okrągły | 8 | |
50 | M5 | Owalne | 15 | 13 |
65 | M5 | Owalne | 15 | 13 |
75 | M5 | Owalne | 15 | 13 |
UN VDC |
CN | Casing | Dimensions | Ripple current | ESR Max | Maximun Impedance | Type | ||
---|---|---|---|---|---|---|---|---|---|
100 Hz 20°C (µF) | D x L (mm) | 100 Hz 125°C (A) | 100 Hz 85°C (A) | 100 Hz 40°C (A) | 100 Hz 20°C (mΩ) | 10 kHz 20°C (mΩ) | |||
16 | 18000 | A | 35 x 51 | 6.2 | 17.2 | 24.2 | 23 | 16 | PEH205GA5180Q(1) |
16 | 33000 | C | 35 x 75 | 8.1 | 22.5 | 31.6 | 15 | 11 | PEH205GC5330Q(1) |
16 | 39000 | D | 35 x 95 | 8.5 | 23.6 | 33.1 | 13 | 9 | PEH205GD5390Q(1) |
16 | 68000 | H | 50 x 75 | 13.7 | 37.8 | 53.1 | 10 | 8 | PEH205GH5680Q(1) |
16 | 180000 | O | 65 x 105 | 17.4 | 48.1 | 67.5 | 6 | 7 | PEH205GO6180Q(1) |
16 | 270000 | T | 75 x 105 | 22.9 | 63.3 | 80.0 | 6 | 8 | PEH205GT6270Q(1) |
16 | 390000 | V | 75 x 145 | 24.8 | 68.8 | 80.0 | 6 | 8 | PEH205GV6390Q(1) |
25 | 10000 | A | 35 x 51 | 5.3 | 14.7 | 20.7 | 27 | 17 | PEH205HA5100Q(1) |
25 | 18000 | C | 35 x 75 | 7.0 | 19.4 | 27.2 | 17 | 11 | PEH205HC5180Q(1) |
25 | 22000 | D | 35 x 95 | 7.5 | 20.6 | 29.0 | 15 | 10 | PEH205HD5220Q(1) |
25 | 39000 | H | 50 x 75 | 12.0 | 33.4 | 46.8 | 11 | 8 | PEH205HH5390Q(1) |
25 | 120000 | O | 65 x 105 | 19.8 | 54.8 | 76.9 | 7 | 7 | PEH205HO6120Q(1) |
25 | 180000 | T | 75 x 105 | 20.8 | 57.7 | 80.0 | 7 | 8 | PEH205HT6180Q(1) |
25 | 270000 | V | 75 x 145 | 23.5 | 65.1 | 80.0 | 6 | 8 | PEH205HV6270Q(1) |
40 | 4700 | A | 35 x 51 | 4.8 | 13.2 | 18.5 | 32 | 17 | PEH205KA4470Q(1) |
40 | 10000 | C | 35 x 75 | 6.8 | 18.9 | 26.6 | 18 | 10 | PEH205KC5100Q(1) |
40 | 15000 | D | 35 x 95 | 8.1 | 22.4 | 31.5 | 15 | 9 | PEH205KD5150Q(1) |
40 | 22000 | H | 50 x 75 | 11.7 | 32.4 | 45.5 | 11 | 8 | PEH205KH5220Q(1) |
40 | 47000 | O | 65 x 105 | 18.1 | 50.1 | 70.4 | 7 | 7 | PEH205KO5470Q(1) |
40 | 68000 | T | 75 x 105 | 19.9 | 55.2 | 77.6 | 7 | 8 | PEH205KT5680Q(1) |
40 | 100000 | V | 75 x 145 | 22.2 | 61.5 | 80.0 | 6 | 8 | PEH205KV6100Q(1) |
55 | 3300 | A | 35 x 51 | 4.4 | 12.2 | 17.2 | 40 | 23 | PEH205LA4330Q(1) |
55 | 5600 | C | 35 x 75 | 5.8 | 16.1 | 22.7 | 25 | 15 | PEH205LC4560Q(1) |
55 | 8200 | D | 35 x 95 | 7.0 | 19.3 | 27.1 | 19 | 12 | PEH205LD4820Q(1) |
55 | 12000 | H | 50 x 75 | 10.3 | 28.4 | 39.9 | 17 | 9 | PEH205LH5120Q(1) |
55 | 33000 | O | 65 x 105 | 17.3 | 48.0 | 67.4 | 8 | 8 | PEH205LO5330Q(1) |
55 | 47000 | T | 75 x 105 | 19.0 | 52.7 | 74.0 | 8 | 8 | PEH205LT5470Q(1) |
55 | 68000 | V | 75 x 145 | 21.7 | 60.0 | 80.0 | 7 | 8 | PEH205LV5680Q(1) |
63 | 2200 | A | 35 x 51 | 4.1 | 11.4 | 16.1 | 43 | 24 | PEH205MA4220Q(1) |
63 | 4700 | C | 35 x 75 | 6.1 | 17.0 | 23.8 | 24 | 14 | PEH205MC4470Q(1) |
63 | 6800 | D | 35 x 95 | 7.2 | 19.9 | 28.0 | 19 | 11 | PEH205MD4680Q(1) |
63 | 10000 | H | 50 x 75 | 10.1 | 27.9 | 39.2 | 14 | 9 | PEH205MH5100Q(1) |
63 | 22000 | O | 65 x 105 | 16.3 | 45.2 | 63.4 | 9 | 8 | PEH205MO5220Q(1) |
63 | 33000 | T | 75 x 105 | 18.0 | 49.7 | 69.9 | 9 | 9 | PEH205MT5330Q(1) |
63 | 47000 | V | 75 x 145 | 20.7 | 57.3 | 80.0 | 7 | 8 | PEH205MV5470Q(1) |
100 | 1500 | A | 35 x 51 | 3.0 | 8.4 | 11.7 | 83 | 53 | PEH205PA4150Q(1) |
100 | 2200 | C | 35 x 75 | 3.7 | 10.3 | 14.4 | 56 | 36 | PEH205PC4220Q(1) |
100 | 3300 | D | 35 x 95 | 4.7 | 13.0 | 18.3 | 37 | 26 | PEH205PD4330Q(1) |
100 | 4700 | H | 50 x 75 | 6.9 | 19.0 | 26.7 | 29 | 19 | PEH205PH4470Q(1) |
100 | 15000 | O | 65 x 105 | 13.4 | 37.0 | 51.9 | 13 | 10 | PEH205PO5150Q(1) |
100 | 22000 | T | 75 x 105 | 15.2 | 42.0 | 59.0 | 11 | 10 | PEH205PT5220Q(1) |
100 | 33000 | V | 75 x 145 | 18.5 | 51.2 | 71.8 | 9 | 9 | PEH205PV5330Q(1) |
(1) Fastening code: U0 = without fastening screw, B0 = fastening screw
Marking
Budowa
Send an inquiry
Are you interested in this product? Do you need additional information or individual pricing?
Contact us
Series PEH205, +125°C
Marking method
PEH205 | G | A | 518 | 0 | Q | U0 |
---|---|---|---|---|---|---|
Series | Rated voltage (VDC) | Casing Code | Capacitance Code (μF) | Version | Capacitance Tolerance | Mounting Method |
Electrolytic Capacitor | G = 16 H = 25 K = 40 L = 55 M = 63 P = 100 |
See table | The last two digits represent significant figures. The first digit specifies the total number of digits. | 0 = Standard | Q = −10 + 30% |
U0 = without fastening screw |
Special features
Item | Special features | ||
---|---|---|---|
Capacitance range | 1,500 – 390,000 µF | ||
Voltage range | 16 – 100 VDC | ||
Operating Temperature | −55 to +125°C | ||
Capacity tolerance | −10/+30% at 100 Hz/+20°C | ||
Life Time | D (mm) | VN i IR w +125°C (h) | |
D ≤ 50 | 4,000 | ||
D > 50 | 8,000 | ||
Storage time | 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC | ||
Norms | IEC 60384–4 long |
Tabela wymiarów
Reference Size (mm) | Casing | Dimensions in [mm] | Weight [g] | ||||
---|---|---|---|---|---|---|---|
D | L1 | L3 | a | Fixing screw (M x H) | |||
±0.4 | ±1.0 | ±1.0 | ±0.5 | Nominal | |||
35 x 51 | A | 35.0 | 51.5 | 58.0 | 13.0 | M8 x 12 | 70.0 |
35 x 75 | C | 35.0 | 73.5 | 80.0 | 13.0 | M8 x 12 | 105.0 |
35 x 95 | D | 35.0 | 94.5 | 101.0 | 13.0 | M8 x 12 | 130.0 |
50 x 75 | H | 50.0 | 74.5 | 81.0 | 22.0 | M12 x 16 | 180.0 |
65 x 105 | O | 65.0 | 106.0 | 111.3 | 28.5 | M12 x 16 | 415.0 |
75 x 105 | T | 75.0 | 106.0 | 111.3 | 32.0 | M12 x 16 | 585.0 |
75 x 145 | V | 75.0 | 146.0 | 151.3 | 32.0 | M12 x 16 | 800.0 |
Type of Terminals
Reference Diameter | Thread | Style | Dimensions in [mm] | |
---|---|---|---|---|
d | b | |||
35 | M5 | Okrągły | 8 | |
50 | M5 | Owalne | 15 | 13 |
65 | M5 | Owalne | 15 | 13 |
75 | M5 | Owalne | 15 | 13 |
UN VDC |
CN | Casing | Dimensions | Ripple current | ESR Max | Maximun Impedance | Type | ||
---|---|---|---|---|---|---|---|---|---|
100 Hz 20°C (µF) | D x L (mm) | 100 Hz 125°C (A) | 100 Hz 85°C (A) | 100 Hz 40°C (A) | 100 Hz 20°C (mΩ) | 10 kHz 20°C (mΩ) | |||
16 | 18000 | A | 35 x 51 | 6.2 | 17.2 | 24.2 | 23 | 16 | PEH205GA5180Q(1) |
16 | 33000 | C | 35 x 75 | 8.1 | 22.5 | 31.6 | 15 | 11 | PEH205GC5330Q(1) |
16 | 39000 | D | 35 x 95 | 8.5 | 23.6 | 33.1 | 13 | 9 | PEH205GD5390Q(1) |
16 | 68000 | H | 50 x 75 | 13.7 | 37.8 | 53.1 | 10 | 8 | PEH205GH5680Q(1) |
16 | 180000 | O | 65 x 105 | 17.4 | 48.1 | 67.5 | 6 | 7 | PEH205GO6180Q(1) |
16 | 270000 | T | 75 x 105 | 22.9 | 63.3 | 80.0 | 6 | 8 | PEH205GT6270Q(1) |
16 | 390000 | V | 75 x 145 | 24.8 | 68.8 | 80.0 | 6 | 8 | PEH205GV6390Q(1) |
25 | 10000 | A | 35 x 51 | 5.3 | 14.7 | 20.7 | 27 | 17 | PEH205HA5100Q(1) |
25 | 18000 | C | 35 x 75 | 7.0 | 19.4 | 27.2 | 17 | 11 | PEH205HC5180Q(1) |
25 | 22000 | D | 35 x 95 | 7.5 | 20.6 | 29.0 | 15 | 10 | PEH205HD5220Q(1) |
25 | 39000 | H | 50 x 75 | 12.0 | 33.4 | 46.8 | 11 | 8 | PEH205HH5390Q(1) |
25 | 120000 | O | 65 x 105 | 19.8 | 54.8 | 76.9 | 7 | 7 | PEH205HO6120Q(1) |
25 | 180000 | T | 75 x 105 | 20.8 | 57.7 | 80.0 | 7 | 8 | PEH205HT6180Q(1) |
25 | 270000 | V | 75 x 145 | 23.5 | 65.1 | 80.0 | 6 | 8 | PEH205HV6270Q(1) |
40 | 4700 | A | 35 x 51 | 4.8 | 13.2 | 18.5 | 32 | 17 | PEH205KA4470Q(1) |
40 | 10000 | C | 35 x 75 | 6.8 | 18.9 | 26.6 | 18 | 10 | PEH205KC5100Q(1) |
40 | 15000 | D | 35 x 95 | 8.1 | 22.4 | 31.5 | 15 | 9 | PEH205KD5150Q(1) |
40 | 22000 | H | 50 x 75 | 11.7 | 32.4 | 45.5 | 11 | 8 | PEH205KH5220Q(1) |
40 | 47000 | O | 65 x 105 | 18.1 | 50.1 | 70.4 | 7 | 7 | PEH205KO5470Q(1) |
40 | 68000 | T | 75 x 105 | 19.9 | 55.2 | 77.6 | 7 | 8 | PEH205KT5680Q(1) |
40 | 100000 | V | 75 x 145 | 22.2 | 61.5 | 80.0 | 6 | 8 | PEH205KV6100Q(1) |
55 | 3300 | A | 35 x 51 | 4.4 | 12.2 | 17.2 | 40 | 23 | PEH205LA4330Q(1) |
55 | 5600 | C | 35 x 75 | 5.8 | 16.1 | 22.7 | 25 | 15 | PEH205LC4560Q(1) |
55 | 8200 | D | 35 x 95 | 7.0 | 19.3 | 27.1 | 19 | 12 | PEH205LD4820Q(1) |
55 | 12000 | H | 50 x 75 | 10.3 | 28.4 | 39.9 | 17 | 9 | PEH205LH5120Q(1) |
55 | 33000 | O | 65 x 105 | 17.3 | 48.0 | 67.4 | 8 | 8 | PEH205LO5330Q(1) |
55 | 47000 | T | 75 x 105 | 19.0 | 52.7 | 74.0 | 8 | 8 | PEH205LT5470Q(1) |
55 | 68000 | V | 75 x 145 | 21.7 | 60.0 | 80.0 | 7 | 8 | PEH205LV5680Q(1) |
63 | 2200 | A | 35 x 51 | 4.1 | 11.4 | 16.1 | 43 | 24 | PEH205MA4220Q(1) |
63 | 4700 | C | 35 x 75 | 6.1 | 17.0 | 23.8 | 24 | 14 | PEH205MC4470Q(1) |
63 | 6800 | D | 35 x 95 | 7.2 | 19.9 | 28.0 | 19 | 11 | PEH205MD4680Q(1) |
63 | 10000 | H | 50 x 75 | 10.1 | 27.9 | 39.2 | 14 | 9 | PEH205MH5100Q(1) |
63 | 22000 | O | 65 x 105 | 16.3 | 45.2 | 63.4 | 9 | 8 | PEH205MO5220Q(1) |
63 | 33000 | T | 75 x 105 | 18.0 | 49.7 | 69.9 | 9 | 9 | PEH205MT5330Q(1) |
63 | 47000 | V | 75 x 145 | 20.7 | 57.3 | 80.0 | 7 | 8 | PEH205MV5470Q(1) |
100 | 1500 | A | 35 x 51 | 3.0 | 8.4 | 11.7 | 83 | 53 | PEH205PA4150Q(1) |
100 | 2200 | C | 35 x 75 | 3.7 | 10.3 | 14.4 | 56 | 36 | PEH205PC4220Q(1) |
100 | 3300 | D | 35 x 95 | 4.7 | 13.0 | 18.3 | 37 | 26 | PEH205PD4330Q(1) |
100 | 4700 | H | 50 x 75 | 6.9 | 19.0 | 26.7 | 29 | 19 | PEH205PH4470Q(1) |
100 | 15000 | O | 65 x 105 | 13.4 | 37.0 | 51.9 | 13 | 10 | PEH205PO5150Q(1) |
100 | 22000 | T | 75 x 105 | 15.2 | 42.0 | 59.0 | 11 | 10 | PEH205PT5220Q(1) |
100 | 33000 | V | 75 x 145 | 18.5 | 51.2 | 71.8 | 9 | 9 | PEH205PV5330Q(1) |
(1) Fastening code: U0 = without fastening screw, B0 = fastening screw
Marking

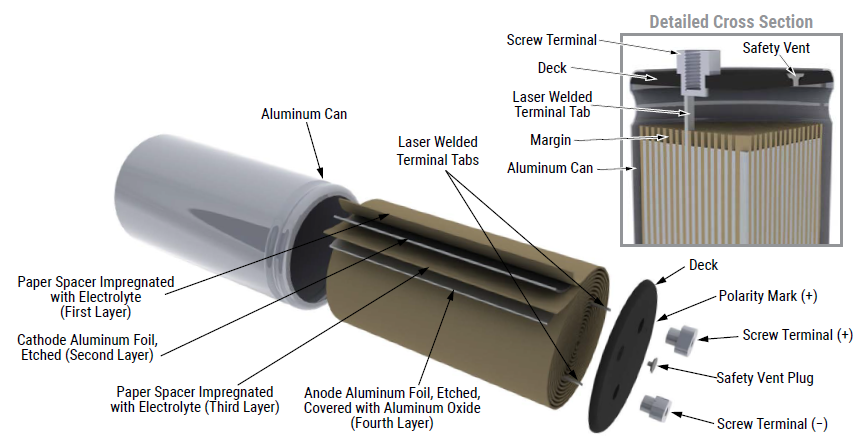

Budowa
Related articles
-
Co to jest kondensator elektrolityczny? Budowa, zalety i rodzaje.Kondensator elektrolityczny to odrębny typ kondensatora, w którym jedna z elektrod jest elektrolitem, a druga jest...Read more
-
Kondensatory, budowa i zasada działaniaKondensator to urządzenie, które występuje w każdym nawet najmniejszym układnie elektronicznym. Zapotrzebowanie na...Read more
