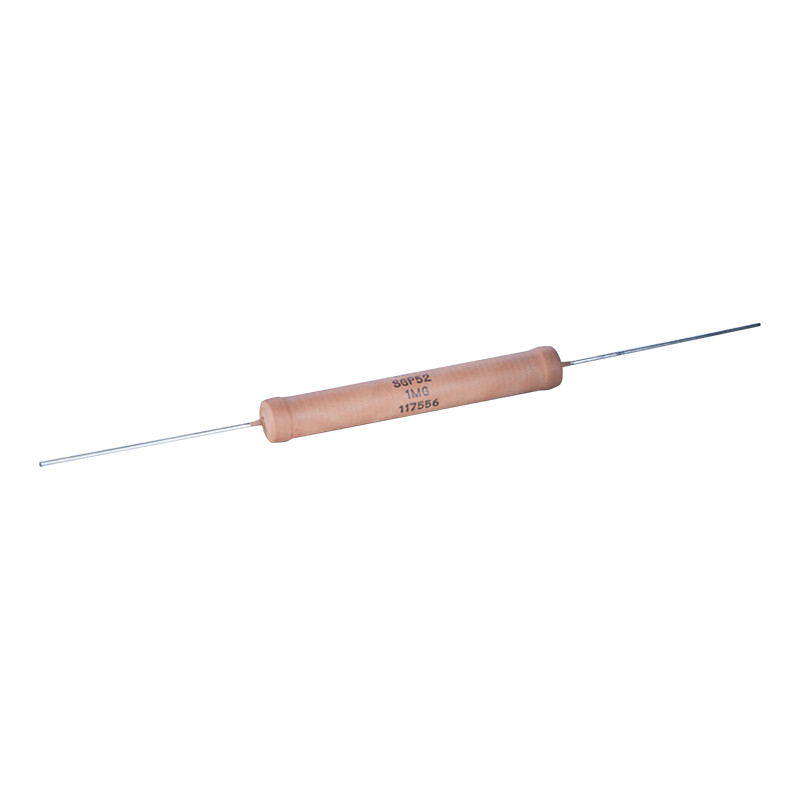

 SGP/OGP SERIES

Main parameters:
• Resistance range up to 10GΩ
• Tolerance 0.1% - 10%
• Temperature coefficient 80ppm/°C
• Maximum constant operating voltage up to 48kV
• stability 0.02% @ 1000h
• Operating temperature range do 225°C
• 60% higher voltages available for special order by adding letter "s" to standard marking



Technical data
Tolerance
standard 0.1% , 0.25%, 0.5%, 1%, 2%, 5%, 10%
Temperature coefficient
standard 80ppm/°C od -15°C do 105°Cw @ 25°C
Voltage coefficient
on the characteristic
Dielectric withstand
10OOVDC
Insulation resistance
10GΩ min
Overload
5 x nominal power @125°C and U<1.5Un during  5s,∆R=0.5%max


Dimensions

Table. Technical data


TypePn
75°C

[W]
Pn
125°C

[W]
UN


[kV]
Us
„s”

[kV]
ResistanceResistance “s”
RSmax(tolerance 2%)
[Ω]
dimensions
Rmin

[Ω]
Rmax

[Ω]
A±0,5

[mm]
B±0,5

[mm]
C±0,05

[mm]
OGP 13 1 0,6 1,5 2,4 100 50M 500M 13,3 4,2 0,6
OGP 20 1/5 1 2 3,2 200 100M 1G 19,7 4,2 0,6
OGP 26 1,9 0,25 4 6,4 300 150M 2G 26,2 4,2 0,6
OGP 30 2,5 1,5 5 8 500 250M 3G 32,3 4,2 0,6
OGP 39 3 2 6 9,6 700 300M 5G 39,4 4,2 0,6
OGP 52 3,3 2,5 10 12 400 2G - 49,5 4,2 0,6
SGP 20 2,5 1,5 3 4,8 200 250M 1G 20,2 8,2 1
SGP 26 3,7 2,5 4 6,4 250 300M 1G 26,9 8,2 1
SGP 32 4,5 3 5 8 300 400M 1G5 33 8,2 1
SGP 39 5,2 5 8 12,8 400 500M 1G5 39,5 8,2 1
SGP 52 7,5 5 10 16 500 750M 2G5 52,1 8,2 1
SGP 78 11 7,5 15 24 900 1G 4G 77,7 8,2 1
SGP 103 12 8 20 32 1k2 1G 2G 102,9 8,2 1
SGP 124 15 10 25 40 1k5 1G 8G 123,7 8,2 1
SGP 148 30 20 45 - 10k 3G 10G 148 8,2 -
SGP 154 20 15 30 48 2k 2G 10G 153,7 8,2 1
Caution
„s” – Special resistor - operating voltage US =1,6 VNS
RSmax – resistance available for "s" resistors
Characteristic
