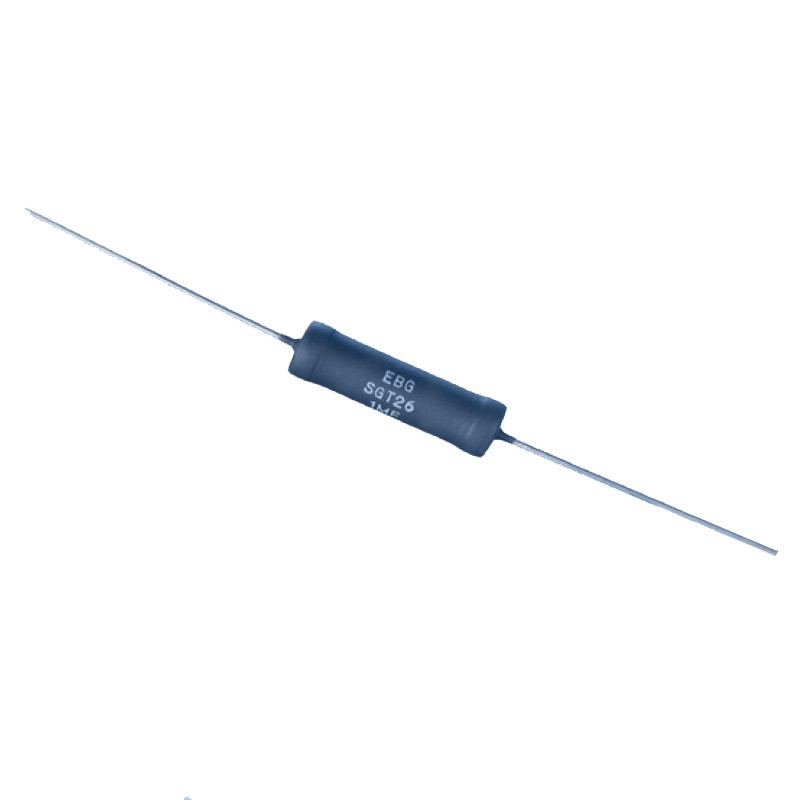

SGT series.
  • SGT series.

Photos are for informational purposes only. View product specification

Manufacturer: EBG

SGT series.

HIGH VOLTAGE RESISTORS

SGT SERIES

Main parameters:
• Resistance range 100kΩ - 1GΩ
• Tolerance 0.1% - 1%
• Temperature coefficient 25ppm/°C  -15°C - 85°C
• stability 0.25% -1000h @ 125°C
• Non-inductive casing
• Maximum long operating temperature 225°C



Technical data
Tolerance
1%
Temperature coefficient
25ppm/°C @  25°C
Dielectric withstand
10OOVDC
Insulation resistance
10GΩ min
Overload
5 x nominal power @ U<1.5Un during 5s, ∆R=0.2%max

Dimensions


Table.technical data


TypePn


[W]
UN


[V]
Resistance
Rmin

[Ω]
Resistance
min
R"s"min
[Ω]
Resistance max

[Ω]
Dimensions
A±0,5

[mm]
B±0,5

[mm]
C±0,05

[mm]
SGT 26 1 4000 100k 40M 250M 26,9 8,2 1
SGT 39 1,5 6000 150k 60M 400M 39,5 8,2 1
SGT 52 2 10000 200k 80M 500M 52,1 8,2 1
SGT 78 3 15000 300k 120M 700M 77,7 8,2 1
SGT 103 4 20000 400k 160M IG 102,9 8,2 1
SGT 124 5 25000 500k 190M IG 123,7 8,2 1
SGT 154 6 30000 600k 250M IG 153,7 8,2 1
Caution
„s” – Special resistor - operating voltage US =1,6 VN
R”s” min – resistance available for "s" resistors
Characteristic
