SILICABLE® ECSC-VDE and CNCSC-VDE Double insulating layer VDE approval -60 °C to +180 °C
  • SILICABLE® ECSC-VDE and CNCSC-VDE Double insulating layer VDE approval -60 °C to +180 °C

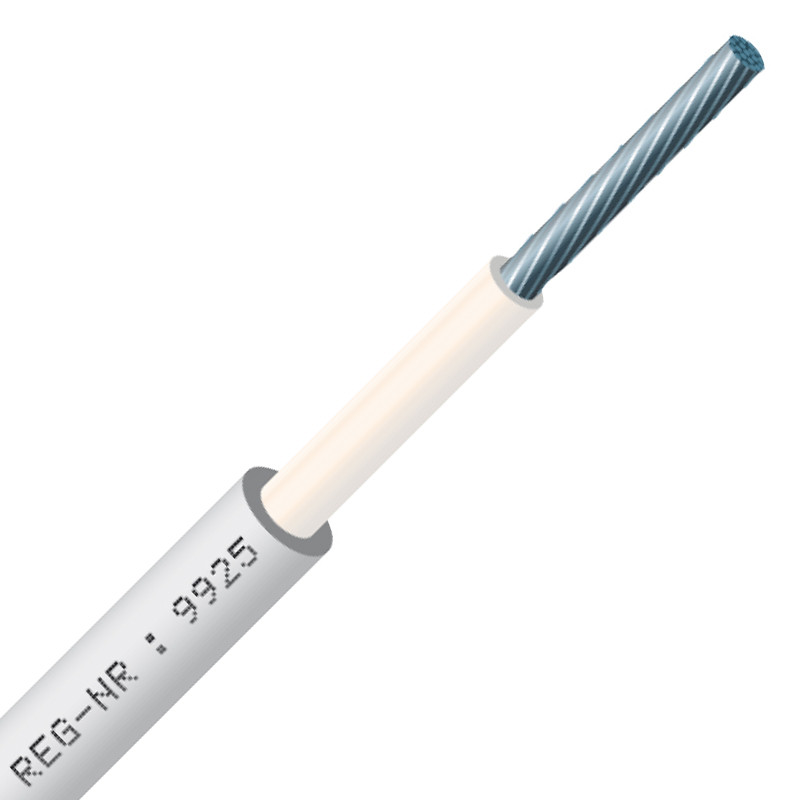

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILICABLE® ECSC-VDE and CNCSC-VDE Double insulating layer VDE approval -60 °C to +180 °C

SILICABLE® ECSC-VDE and CNCSC-VDE Double insulating layer VDE approval -60 °C to +180 °C

Characteristics

• Continuous operating temperatures: -60 °C to +180 °C.
• Good resistance to thermal shock and UV.
• Rated voltage: 300/300 V.
• Test voltage: 3750 V.

Standard products

• Inner insulating layer: white.
• Outer insulating layer: all colours including two-coloured.

Approvals - standards

• VDE approval: Licence No. 119365.
• Halogen-free: IEC 60754-1 / EN 60754-1.
• Safety of household and similar electrical appliances: NF EN 60335-1.

Applications

• Class 2 lighting equipment and convectors or any other household electrical appliance complying with standard NF EN 60335-1.
• Cabling for rotating machines (class H).

Options

• Solid tin-plated copper core (ref. RECSC-VDE) – class 1 as per IEC 60228:
> See details of the option below.
> Option not available in nickel-plated copper.

1 • Flexible tin-plated (ref. ECSC-VDE) or nickel-plated (ref. CNCSC-VDE) copper core - class 5 as per IEC 60228 / DIN VDE 0295.
2 • Insulation: Silicone rubber - type EI2 - DIN EN 50363-1.







Seria ECSC-VDE i CNCSC-VDE

Flexible core • class 5 as per IEC 60228INSULATED WIRE
Nominal cross-section (mm²Nominal strandingMaximum linear resistance at 20 °C (Ω/km) (tin-plated copper core)Nominal thickness of insulation (mm)Nominal diameter (mm)Approximate linear weight (kg/km)
on the inner layeron the outer layer
0,5 16x0,20 40.1 0.6 0.6 3.3 14.7
0,75 24 x 0,20 26.7 0.6 0.6 3.6 18.6
1 32 x 0,20 20.0 0.6 0.6 3.7 21.3
1,5 30 x 0,25 13.7 0.7 0.7 4.4 30.4
2,5 50 x 0,25 8.21 0.8 0.8 5.2 45.5


Seria RECSC-VDE

Flexible core • class 5 as per IEC 60228INSULATED WIRE
Nominal cross-section (mm²Nominal strandingMaximum linear resistance at 20 °C (Ω/km) (tin-plated copper core)Nominal thickness of insulation (mm)Nominal diameter (mm)Approximate linear weight (kg/km)
on the inner layeron the outer layer
0,5 1 x 0.80 36.7 0,6 0,6 3,2 14.2
0,75 1 x 0.98 24.8 0,6 0,6 3.4 17.5
1 1 x 1.13 18.2 0,6 0,6 3,6 20,9
1,5 1 x 1.38 12.2 0,7 0,7 4,2 29.4
2,5 1 x 1.77 7.56 0,8 0,8 5.0 44.4
