SILICABLE MA-CNVAS -60°C do +400°C
  • SILICABLE MA-CNVAS -60°C do +400°C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILICABLE MA-CNVAS -60°C do +400°C

SILICABLE MA-CNVAS -60°C do +400°C  kable na wysoką temperature

Characteristics

  • Continuous operating temperatures: -60 °C to +400 °C.
  • Good resistance to thermal shock.
  • Excellent ageing.
  • Rated voltage: 300/500 V.
  • Test voltage: 2000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer braid colour: grey.
  • Some cables may include a fibreglass tape or other separating tape under the outer braid.

Approvals - standards

  • Nickel-plated copper complying with the 2% class as per standard ASTM B355.
  • Halogen-free: IEC 60754-1 / EN 50267-2-1.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 50265-2-1 / NF C 32-070 test C2.

Applications

  • All cabling in hot atmospheres up to 400 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for industrial furnaces and air ovens, machines for thermoplastics or rubber, welding stations, etc.
  • Cabling for heating resistors, cartridges, bands and plates.

Options

  • Other nominal cross-sections and flexibility classes: contact us.
  • Other numbers of conductors: contact us.
  • Bare copper cores: ref. MA-VAS.
  • 27% nickel-plated copper cores as per ASTM B355: contact us.
  • Outer flexible armour:

> Galvanised steel braid: ref. BGMA-CNVAS.

> Stainless steel braid: ref. BIMA-CNVAS.

  • Electrical shielding:

> Nickel-plated copper braid: ref. MABCN-CNVAS.

  • Other options and/or combinations of the options outlined above: contact us.

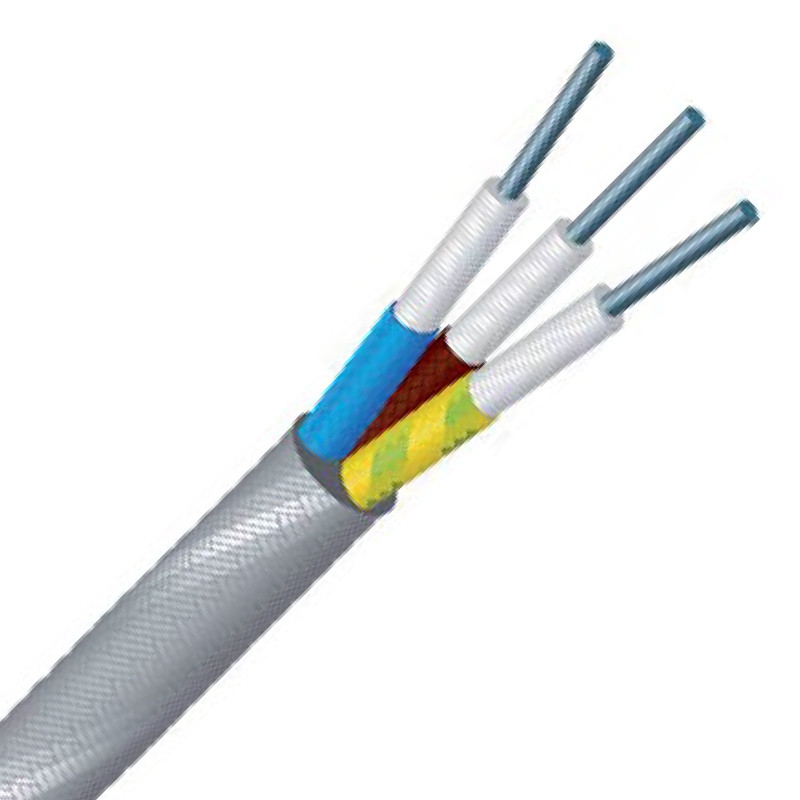

SILICABLE MA-CNVAS -60°C do +400°C kable na wysoką temperature

1 • Stranded nickel-plated copper core.
2 • Silicone impregnated fibreglass lappings.
3 • Silicone-coated mineral fibre braid.
4 • Fillers optional, not shown.
5 • Silicone-coated mineral fibre braid.


Standard conductor colours
Number of conductorsWith an earth wireWithout an earth wire
2 - Blue – Brown (or Grey)
3 Yellow - Green – Blue – Brown (or Grey) Brown – Black – Grey (or Blue)
4 Yello - Green – Brown – Black – Grey (or Blue) Blue – Brown – Black – Grey
5 Yellow - Green – Blue – Black – Grey – Brown (or Red) Blue – Brown – Black – Grey – Black (or Red)
≥6 Yellow - Green – Grey or White non-numbered Grey or White non-numbered

Conducting core

INSULATED CONDUCTORS

SHEATHED CABLE

Nominal cross-section (mm2)Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal thickness of insulation (mm)Nominal diameter of the conductor (mm)Nominal diameter of the cable (mm)Approximate linear weight (kg/km)
2 x 0.5 7 x 0.30 36.7 0.8 2.5 6.5 39.5
3 x 0.5 7 x 0.30 36.7 0.8 2.5 6.9 55.1
4 x 0.5 7 x 0.30 36.7 0.8 2.5 7.5 65.4
5 x 0.5 7 x 0.30 36.7 0.8 2.5 8.2 80.0
7 x 0.5 7 x 0.30 36.7 0.8 2.5 9.0 101
2 x 0.75 11 x 0.30 24.8 0.8 2.7 6.9 57.2
3 x 0.75 11 x 0.30 24.8 0.8 2.7 7.3 63.3
4 x 0.75 11 x 0.30 24.8 0.8 2.7 8.0 80.4
5 x 0,75 11 x 0.30 24.8 0.8 2.7 8.7 100
7 x 0,75 11 x 0.30 24.8 0.8 2.7 9.7 126
2 x 1 14 x 0,30 18.2 0.9 3.2 7.9 71.1
3 x 1 14 x 0,30 18.2 0.9 3.2 8.4 86.0
4 x 1 14 x 0,30 18.2 0.9 3.2 9.2 107
5 x 1 14 x 0,30 18.2 0.9 3.2 10.2 136
7 x 1 14 x 0,30 18.2 0.9 3.2 11.1 170
12 x 1 14 x 0,30 18.2 0.9 3.2 14.8 283
19 x 1 14 x 0,30 18.2 0.9 3.2 17.5 442
24 x 1 14 x 0,30 18.2 0.9 3.2 20.7 538
27 x 1 14 x 0,30 18.2 0.9 3.2 21.2 606
37 x 1 14 x 0,30 18.2 0.9 3.2 23.9 830
2 x 1,5 21 x 0.30 12.2 0.9 3.4 8.3 83.7
3 x 1,5 21 x 0.30 12.2 0.9 3.4 8.6 108
4 x 1,5 21 x 0.30 12.2 0.9 3.4 9.0 130
5 x 1,5 21 x 0.30 12.2 0.9 3.4 9.6 166
7 x 1,5 21 x 0.30 12.2 0.9 3.4 10.6 213
12 x 1.5 21 x 0.30 12.2 0.9 3.4 15.6 356
19 x 1.5 21 x 0.30 12.2 0.9 3.4 18.5 558
24 x 1.5 21 x 0.30 12.2 0.9 3.4 21.9 711
27 x 1.5 21 x 0.30 12.2 0.9 3.4 22.4 730
37 x 1.5 21 x 0.30 12.2 0.9 3.4 25.3 1001
2 x 2.5 35 x 0.30 7.56 0.9 4.0 9.5 101
3 x 2.5 35 x 0.30 7.56 0.9 4.0 10.0 149
4 x 2.5 35 x 0.30 7.56 0.9 4.0 11.2 180
5 x 2.5 35 x 0.30 7.56 0.9 4.0 12.3 221
7 x 2.5 35 x 0.30 7.56 0.9 4.0 13.5 275
12 x 2.5 35 x 0.30 7.56 0.9 4.0 18.1 467
2 x 4 56 x 0.30 4.70 1.0 4.5 10.5 162
3 x 4 56 x 0.30 4.70 1.0 4.5 11.2 217
4 x 4 56 x 0.30 4.70 1.0 4.5 12.4 262
5 x 4 56 x 0.30 4.70 1.0 4.5 13.7 332
7 x 4 56 x 0.30 4.70 1.0 4.5 15.0 440
2 x 6 84 x 0.30 3.11 1.0 5.0 11.5 200
3 x 6 84 x 0.30 3.11 1.0 5.0 12.3 289
4 x 6 84 x 0.30 3.11 1.0 5.0 13.6 340
5 x 6 84 x 0.30 3.11 1.0 5.0 15.1 434
7 x 6 84 x 0.30 3.11 1.0 5.0 16.5 569
2 x 10 80 x 0.40 1.84 1.6 8.0 17.5 350
3 x 10 80 x 0.40 1.84 1.6 8.0 18.7 467
4 x 10 80 x 0.40 1.84 1.6 8.0 20.8 668
2 x 16 126 x 0.40 1.16 1.7 9.0 19.5 593
3 x 16 126 x 0.40 1.16 1.7 9.0 20.9 790
4 x 16 126 x 0.40 1.16 1.7 9.0 23.2 936
2 x 25 196 x 0.40 0.734 1.8 10.6 22.7 748
3 x 25 196 x 0.40 0.734 1.8 10.6 24.3 1122
4 x 25 196 x 0.40 0.734 1.8 10.6 27.1 1496
2 x 35 276 x 0.40 0.529 2.2 13.0 27.5 1132
3 x 35 276 x 0.40 0.529 2.2 13.0 29.4 1650
4 x 35 276 x 0.40 0.529 2.2 13.0 32.9 2264
