SILICABLE® MA-CNVS -60 °C to +350 °C
  • SILICABLE® MA-CNVS -60 °C to +350 °C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILICABLE® MA-CNVS -60 °C to +350 °C

SILICABLE® MA-CNVS -60 °C to +350 °C

Characteristics

  • Continuous operating temperatures: -60 °C to +350 °C.
  • Good resistance to thermal shock.
  • Excellent ageing.
  • Rated voltage: 300/500 V.
  • Test voltage: 2000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer braid colour: grey.
  • Some cables may include a fibreglass tape or other separating tape under the outer braid.

Approvals - standards

  • Nickel-plated copper complying with the 2% class as per standard ASTM B355.
  • Halogen-free: IEC 60754-1 / EN 50267-2-1.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 50265-2-1 NF C 32-070 test C2.

Applications

  • All cabling in hot atmospheres up to +350 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for industrial furnaces and air ovens, machines for thermoplastics or rubber, welding stations, etc.

 Options

  • Other nominal cross-sections: contact us.
  • Class 5 flexible cores as per IEC 60228: contact us.
  • Other numbers of conductors (up to 37): contact us.
  • Outer flexible armour:

> Galvanised steel braid: ref. BGMA-CNVS.
> Stainless steel braid: ref. BIMA-CNVS

  • Electrical shielding:

> Nickel-plated copper braid: ref. MABCN-CNVS.

  • Other options and/or combinations of the options outlined above: contact us.

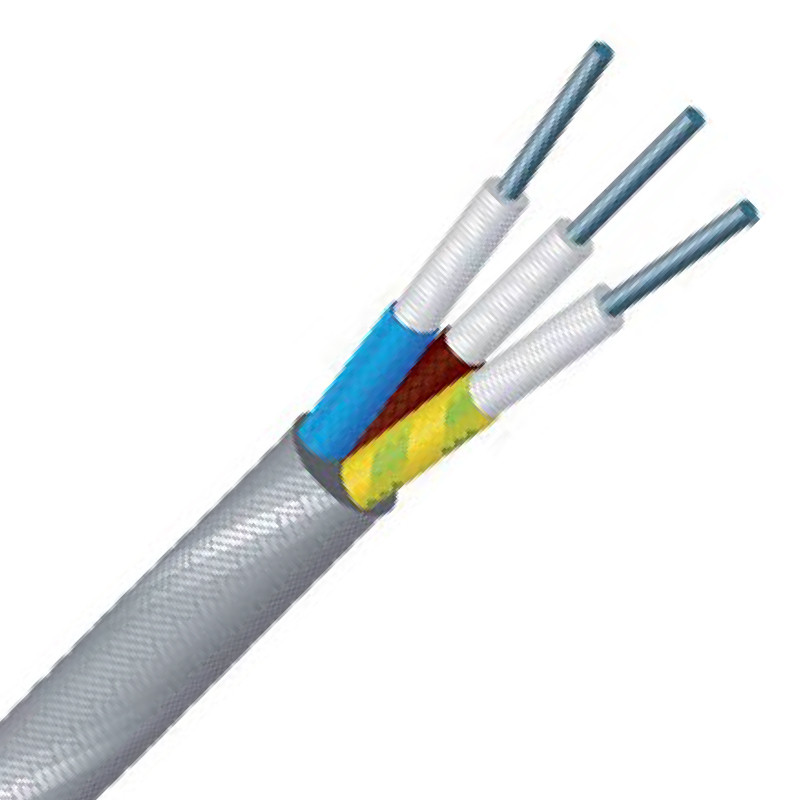

SILICABLE MA-CNVS -60°C do +350°C kable na wysoką temperature

1 • Stranded nickel-plated copper core.
2 • Silicone impregnated fibreglass lappings.
3 • Silicone-coated fibreglass braid.
4 • Fillers optional, not shown.
5 • Silicone-coated mineral fibre braid.


Standard conductor colours
Number of conductorsWith an earth wireWithout an earth wire
2 - Blue – Brown
3 Yellow - Green – Blue – Brown Brown – Black – Grey (or Blue)
4 Yellow - Green – Brown – Black – Grey (or Blue) Blue – Brown – Black – Grey
5 Yellow - Green – Blue – Brown – Black – Grey (or Red) Blue – Brown – Black – Grey – Black (or Red)
≥6 Yellow - Green – Black or White non-numbered Black or Grey non-numbered

Conducting core

INSULATED CONDUCTORS

SHEATHED CABLE

Nominal cross-section (mm2)Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal thickness of insulation (mmNominal diameter of the conductor (mmNominal diameter of the cable (mm)Approximate linear weight (kg/km)
2 x 0.5 7 x 0.30 36.7 0.6 2.1 5.6 27.4
3 x 0.5 7 x 0.30 36.7 0.6 2.1 5.9 39.8
4 x 0.5 7 x 0.30 36.7 0.6 2.1 6.5 52.8
5 x 0.5 7 x 0.30 36.7 0.6 2.1 7.1 66.0
7 x 0.5 7 x 0.30 36.7 0.6 2.1 7.7 92.5
2 x 0.75 11 x 0.30 24.8 0.6 2.4 6.3 33.9
3 x 0.75 11 x 0.30 24.8 0.6 2.4 6.6 49.9
4 x 0.75 11 x 0.30 24.8 0.6 2.4 7.2 64.9
5 x 0,75 11 x 0.30 24.8 0.6 2.4 7.9 83.4
7 x 0,75 11 x 0.30 24.8 0.6 2.4 8.6 116
2 x 1 14 x 0,30 18.2 0.6 2.5 6.4 47.7
3 x 1 14 x 0,30 18.2 0.6 2.5 6.8 59.0
4 x 1 14 x 0,30 18.2 0.6 2.5 7.4 77.0
5 x 1 14 x 0,30 18.2 0.6 2.5 8.1 98.5
7 x 1 14 x 0,30 18.2 0.6 2.5 8.9 131
12 x 1 14 x 0,30 18.2 0.6 2.5 11.8 223
19 x 1 14 x 0,30 18.2 0.6 2.5 13.9 340
24 x 1 14 x 0,30 18.2 0.6 2.5 16.4 430
27 x 1 14 x 0,30 18.2 0.6 2.5 16.8 483
37 x 1 14 x 0,30 18.2 0.6 2.5 19.0 661
2 x 1,5 21 x 0.30 12.2 0.6 2.8 7.2 59.6
3 x 1,5 21 x 0.30 12.2 0.6 2.8 7.4 81.2
4 x 1,5 21 x 0.30 12.2 0.6 2.8 8.2 100
5 x 1,5 21 x 0.30 12.2 0.6 2.8 9.0 131
7 x 1,5 21 x 0.30 12.2 0.6 2.8 9.8 171
12 x 1.5 21 x 0.30 12.2 0.6 2.8 13.0 293
19 x 1.5 21 x 0.30 12.2 0.6 2.8 15.4 465
24 x 1.5 21 x 0.30 12.2 0.6 2.8 18.2 586
27 x 1.5 21 x 0.30 12.2 0.6 2.8 18.6 660
37 x 1.5 21 x 0.30 12.2 0.6 2.8 21.1 905
2 x 2.5 35 x 0.30 7.56 0.6 3.2 7.8 77.0
3 x 2.5 35 x 0.30 7.56 0.6 3.2 8.3 113
4 x 2.5 35 x 0.30 7.56 0.6 3.2 9.1 150
5 x 2.5 35 x 0.30 7.56 0.6 3.2 10.1 193
7 x 2.5 35 x 0.30 7.56 0.6 3.2 11.2 256
12 x 2.5 35 x 0.30 7.56 0.6 3.2 21.2 437
2 x 4 56 x 0.30 4.70 0.8 4.0 9.4 130
3 x 4 56 x 0.30 4.70 0.8 4.0 10.0 182
4 x 4 56 x 0.30 4.70 0.8 4.0 11.1 238
5 x 4 56 x 0.30 4.70 0.8 4.0 12.2 308
7 x 4 56 x 0.30 4.70 0.8 4.0 13.4 409
2 x 6 84 x 0.30 3.11 0.8 4.6 10.6 184
3 x 6 84 x 0.30 3.11 0.8 4.6 11.3 256
4 x 6 84 x 0.30 3.11 0.8 4.6 12.8 343
5 x 6 84 x 0.30 3.11 0.8 4.6 13.9 428
2 x 10 80 x 0.40 1.84 1.2 6.6 14.6 310
3 x 10 80 x 0.40 1.84 1.2 6.6 15.4 431
4 x 10 80 x 0.40 1.84 1.2 6.6 17.5 570
