SILICABLE® MCBE-ECS and MCBAL-ECS -60 °C to +180 °C
  • SILICABLE® MCBE-ECS and MCBAL-ECS -60 °C to +180 °C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILICABLE® MCBE-ECS and MCBAL-ECS -60 °C to +180 °C

SILICABLE MCBE-ECS i MCBAL-ECS -60°C to + 180°C

Characteristics
  • Continuous operating temperatures: -60 °C to +180 °C.
  • Good resistance to thermal shock and UV.
  • Rated voltage: up to 600/1000 V.
  • Test voltage: up to 3000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer sheath colour: brick red.

Approvals - standards

  • Halogen-free: IEC 60754-1 / EN 60754-1.
  • Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 60332-1-2 / NF C 32-070 test C2.
  • Tests on electric cables under fire conditions Circuit integrity: IEC 60331-21.

Applications

  • Industrial cabling in hot atmospheres up to 180 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for furnaces, ovens, machines for thermoplastics and rubber, welding stations, etc.
  • Lights, spotlights, etc.

Options

  • Bare copper core: ref. MCBE-CS and ref. MCBAL-CS.
  • Inner protective sheath in silicone rubber between the conductor assembly and metal braid: ref. MCBEC-ECS and ref. MCBALC-ECS
  • Outer flexible armour: > Galvanised steel braid: ref. BGMCBE-ECS and ref. BGMCBAL-ECS. > Stainless steel braid: ref. BIMCBE-ECS and ref. BIMCBAL-ECS.
  • Outer braid in silicone coated fibreglass ref. VMCBE-ECS and VMCBAL-ECS.
  • Other nominal cross-sections: contact us.
  • Other nominal stranding: contact us.
  • Other colours: contact us.
SILICABLE MCBE-ECS i MCBAL-ECS -60°C do + 180°C

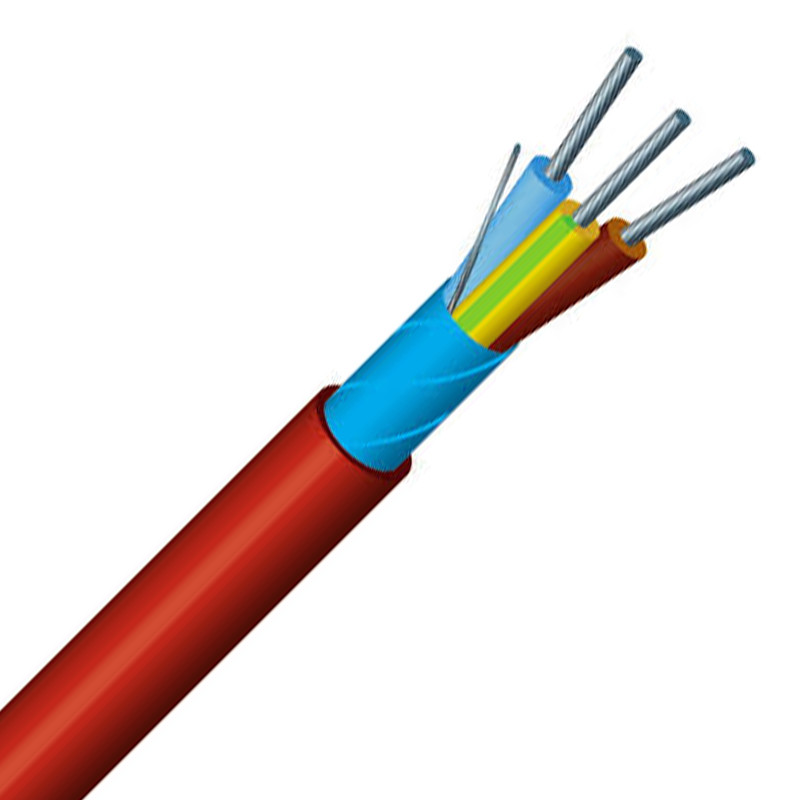

1 • Flexible tin-plated copper core - class 5 as per IEC 60228.
2 • Insulation: Silicone rubber.
3 • Optional separating tape.
4 • Electrical shielding: Aluminium/PET tape + continuity wire.
5 • Electrical shielding: Tin-plated copper braid.
6 • Outer sheath: Silicone rubber.

Identification
Standard conductor colours:
Number of conductors With an earth wire Without an earth wire
2 - blue – brown
3 yellow - green – blue – brown brown – black – grey
4 yellow - green – brown – black – grey blue – brown – black – grey
5 yellow - green – blue – brown – black – grey blue – brown – black – grey – black
≥6 yellow - green – grey numbered grey numbered


Flexible core • class 5 as per IEC 60228INSULATED CONDUCTORSSHEATHED CABLE
Nominal cross-section (mm2)Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal thickness of insulation (mm)Nominal diameter (mm)Nominal diameter (mm)Approximate linear weight (kg/km)
2 x 0,5 16 x 0,2 40.1 0.6 2.1 6.2 55.0
3 x 0,5 16 x 0,2 40.1 0.6 2.1 6.8 71.8
4 x 0,5 16 x 0,2 40.1 0.6 2.1 7.6 88.7
5 x 0,5 16 x 0,2 40.1 0.6 2.1 8.3 104
6 x 0,5 16 x 0,2 40.1 0.6 2.1 8.9 115
7 x 0,5 16 x 0,2 40.1 0.6 2.1 8.9 124
10 x 0,5 16 x 0,2 40.1 0.6 2.1 11.0 168
12 x 0.5 16 x 0,2 40.1 0.6 2.1 11.6 194
14 x 0.5 16 x 0,2 40.1 0.6 2.1 12.1 216
16 x 0.5 16 x 0,2 40.1 0.6 2.1 12.8 247
19 x 0.5 16 x 0,2 40.1 0.6 2.1 13.4 279
2 x 0,75 24 x 0,2 26.7 0.6 2.4 6.7 69.3
3 x 0,75 24 x 0,2 26.7 0.6 2.4 7.3 85.6
4 x 0,75 24 x 0,2 26.7 0.6 2.4 8.1 105
5 x 0,75 24 x 0,2 26.7 0.6 2.4 9.0 126
6 x 0,75 24 x 0,2 26.7 0.6 2.4 9.7 141
7 x 0,75 24 x 0,2 26.7 0.6 2.4 9.8 155
10 x 0,75 24 x 0,2 26.7 0.6 2.4 12.5 226
12 x 0,75 24 x 0,2 26.7 0.6 2.4 13.1 260
14 x 0,75 24 x 0,2 26.7 0.6 2.4 13.7 290
16 x 0,75 24 x 0,2 26.7 0.6 2.4 14.4 321
19 x 0,75 24 x 0.2 26.7 0.6 2.4 15.1 365
2 x 1 32 x 0,2 20.0 0.6 2.5 6.7 82.6
3 x 1 32 x 0,2 20.0 0.6 2.5 7.2 99.7
4 x 1 32 x 0,2 20.0 0.6 2.5 7.9 120
5 x 1 32 x 0,2 20.0 0.6 2.5 8.9 146
6 x 1 32 x 0,2 20.0 0.6 2.5 9.7 165
7 x 1 32 x 0,2 20.0 0.6 2.5 9.9 184
10 x 1 32 x 0,2 20.0 0.6 2.5 12.8 256
12 x 1 32 x 0,2 20.0 0.6 2.5 13.4 305
14 x 1 32 x 0,2 20.0 0.6 2.5 13.9 347
16 x 1 32 x 0,2 20.0 0.6 2.5 14.5 397
19 x 1 32 x 0,2 20.0 0.6 2.5 15.3 444
2 x 1,5 30 x 0,25 13.7 0.6 2.8 7.4 104
3 x 1,5 30 x 0,25 13.7 0.6 2.8 7.8 123
4 x 1,5 30 x 0,25 13.7 0.6 2.8 8.5 149
5 x 1,5 30 x 0,25 13.7 0.6 2.8 9.4 177
6 x 1,5 30 x 0,25 13.7 0.6 2.8 10.2 198
7 x 1,5 30 x 0,25 13.7 0.6 2.8 10.2 218
10 x 1,5 30 x 0,25 13.7 0.6 2.8 13.2 307
12 x 1,5 30 x 0,25 13.7 0.6 2.8 15.0 375
14 x 1,5 30 x 0,25 13.7 0.6 2.8 15.6 425
16 x 1,5 30 x 0,25 13.7 0.6 2.8 16.2 488
19 x 1,5 30 x 0,25 13.7 0.6 2.8 17.0 574
2 x 2,5 50 x 0,25 8.21 0.7 3.4 9.0 152
3 x 2,5 50 x 0,25 8.21 0.7 3.4 9.5 182
4 x 2,5 50 x 0,25 8.21 0.7 3.4 10.4 220
5 x 2,5 50 x 0,25 8.21 0.7 3.4 11.4 265
6 x 2,5 50 x 0,25 8.21 0.7 3.4 12.4 305
7 x 2,5 50 x 0,25 8.21 0.7 3.4 12.4 336
10 x 2,5 50 x 0,25 8.21 0.7 3.4 16.6 494
12 x 2,5 50 x 0,25 8.21 0.7 3.4 17.4 569
14 x 2,5 50 x 0,25 8.21 0.7 3.4 18.2 652
16 x 2,5 50 x 0,25 8.21 0.7 3.4 19.2 735
19 x 2,5 50 x 0,25 8.21 0.7 3.4 20.4 861
2 x 4 56 x 0,3 5.09 0.8 4.2 10.4 201
3 x 4 56 x 0,3 5.09 0.8 4.2 11.4 257
4 x 4 56 x 0,3 5.09 0.8 4.2 12.5 324
5 x 4 56 x 0,3 5.09 0.8 4.2 13.9 384
6 x 4 56 x 0,3 5.09 0.8 4.2 15.6 451
7 x 4 56 x 0,3 5.09 0.8 4.2 15.6 499
10 x 4 56 x 0,3 5.09 0.8 4.2 20.0 730
12 x 4 56 x 0,3 5.09 0.8 4.2 21.0 855
14 x 4 56 x 0,3 5.09 0.8 4.2 22.4 977
16 x 4 56 x 0,3 5.09 0.8 4.2 23.4 1103
19 x 4 56 x 0,3 5.09 0.8 4.2 24.6 1320
2 x 6 84 x 0,3 3.39 0.8 4.8 12.4 283
3 x 6 84 x 0,3 3.39 0.8 4.8 12.8 381
4 x 6 84 x 0,3 3.39 0.8 4.8 14.0 461
5 x 6 84 x 0,3 3.39 0.8 4.8 17.4 579
6 x 6 84 x 0,3 3.39 0.8 4.8 18.8 677
7 x 6 84 x 0,3 3.39 0.8 4.8 18.8 746
2 x 10 80 x 0,4 1.95 1.0 6.4 15.4 428
3 x 10 80 x 0,4 1.95 1.0 6.4 18.0 599
4 x 10 80 x 0,4 1.95 1.0 6.4 20.0 774
5 x 10 80 x 0,4 1.95 1.0 6.4 22.0 911
6 x 10 80 x 0,4 1.95 1.0 6.4 22.8 1031
7 x 10 80 x 0,4 1.95 1.0 6.4 22.8 1144
2 x 16 126 x 0,4 1.24 1.2 7.8 19.0 676
3 x 16 126 x 0,4 1.24 1.2 7.8 21.0 866
4 x 16 126 x 0,4 1.24 1.2 7.8 23.2 1069
5 x 16 126 x 0,4 1.24 1.2 7.8 25.6 1319
6 x 16 126 x 0,4 1.24 1.2 7.8 27.8 1511
7 x 16 126 x 0,4 1.24 1.2 7.8 27.8 1682
2 x 25 196 x 0,4 0.795 1.4 9.6 24.0 996
3 x 25 196 x 0,4 0.795 1.4 9.6 25.6 1284
4 x 25 196 x 0,4 0.795 1.4 9.6 29.3 1620
