SILICABLE® MV-VS -60 °C to +280 °C
  • SILICABLE® MV-VS -60 °C to +280 °C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILICABLE® MV-VS -60 °C to +280 °C

SILICABLE® MV-VS -60 °C to +280 °C

Characteristics

  • Continuous operating temperatures: -60 °C to +280 °C.
  • Good resistance to thermal shock.
  • Excellent ageing.
  • Rated voltage: 300/500 V.
  • Test voltage: 2000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer braid colour: grey.
  • Some cables may include a fibreglass tape or other separating tape under the outer braid.

Approvals - standards

  • Halogen-free: IEC 60754-1 / EN 50267-2-1.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 50265-2-1 NF C 32-070 test C2.
  • VERITAS approval certificate: > No. BV.153552. > No. BV.256096 - 2 hours at 400°C.

Applications

  • All cabling in hot atmospheres up to 280 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for industrial furnaces and air ovens, machines for thermoplastics or rubber, welding stations, etc.
  • Cabling for heating resistors, cartridges, bands and plates.

Options

  • Other nominal cross-sections: contact us.
  • Other numbers of conductors (up to 37): contact us.
  • Nickel-plated copper cores: ref. MV-CNVS.
  • Outer flexible armour:

> Galvanised steel braid: ref. BGMV-VS.
> Stainless steel braid: ref. BIMV-VS.

  • Reinforced outer braid: ref. MA-VS.
  • Electrical shielding:

> Tin-plated copper braid: ref. MVBE-VS.
> Aluminium tape + continuity wire: ref. MVBAL-VS.

  • Other options and/or combinations of the options outlined above: contact us.

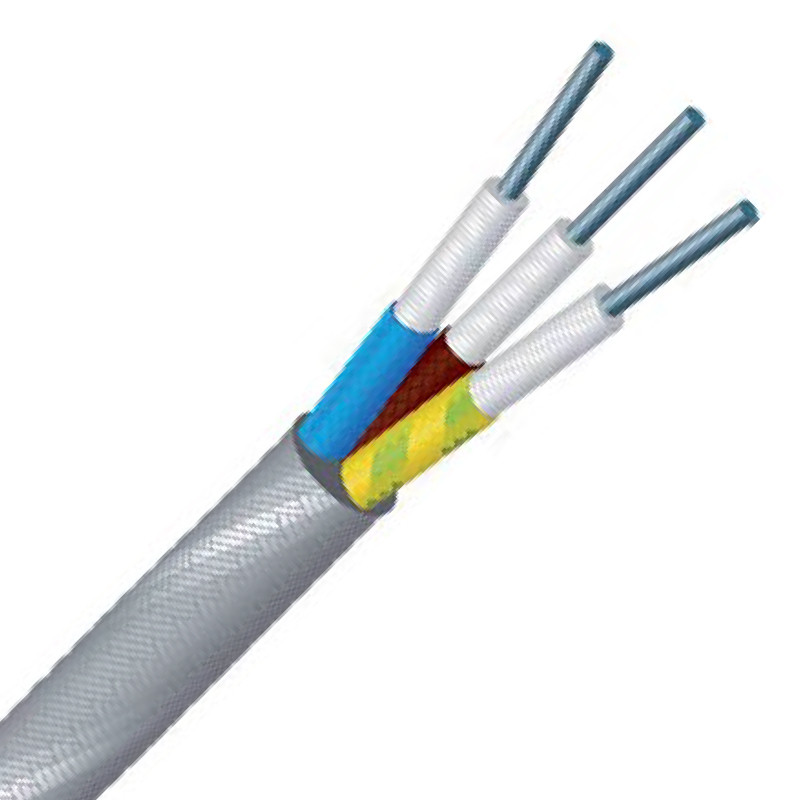

SILICABLE MV-VS -60°C do +280°C kabel bezhalogenowy

1 • Flexible bare copper core - class 5 as per IEC 60228.
2 • Silicone impregnated fibreglass lappings.
3 • Silicone-coated fibreglass braid.
4 • Fillers optional, not shown.
5 • Silicone-coated fibreglass braid.

Standard conductor colours

Number of conductors

With an earth wire

Without an earth wire

2 - Blue – Brown
3 Yellow - Green – Blue – Brown Brown – Black – Grey (or Blue)
4 Yellow - Green – Brown – Black – Grey (or Blue) Blue – Brown – Black – Grey
5 Yellow - Green – Blue – Brown – Black – Grey (or Red) Blue – Brown – Black – Grey – Black
6 Yellow - Green – Black or White non-numbered Black or Grey numbered

Flexible core – Class 5 as per IEC 60228INSULATED CONDUCTORSSHEATHED CABLE
Nominal cross-section (mm2)Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal thickness of insulation (mm)Nominal diameter of the conductor (mm)Nominal diameter of the cable (mm)Approximate linear weight (kg/km)
2 x 0,5 16 x 0,2 39.0 0.6 2.1 4.9 23.8
3 x 0,5 16 x 0,2 39.0 0.6 2.1 5.1 34.6
4 x 0,5 16 x 0,2 39.0 0.6 2.1 5.7 45.9
5 x 0,5 16 x 0,2 39.0 0.6 2.1 6.3 57.4
7 x 0,5 16 x 0,2 39.0 0.6 2.1 6.9 80.4
2 x 0,75 24 x 0,2 26.0 0.6 2.4 5.5 29.5
3 x 0,75 24 x 0,2 26.0 0.6 2.4 5.8 43.4
4 x 0,75 24 x 0,2 26.0 0.6 2.4 6.4 56.5
5 x 0,75 24 x 0,2 26.0 0.6 2.4 7.1 72.5
7 x 0,75 24 x 0,2 26.0 0.6 2.4 7.8 101
2 x 1 32 x 0,2 19.5 0.6 2.5 5.6 41.5
3 x 1 32 x 0,2 19.5 0.6 2.5 6.0 51.3
4 x 1 32 x 0,2 19.5 0.6 2.5 6.6 67.0
5 x 1 32 x 0,2 19.5 0.6 2.5 7.3 85.7
7 x 1 32 x 0,2 19.5 0.6 2.5 8.1 114
12 x 1 32 x 0,2 19.5 0.6 2.5 11.0 194
19 x 1 32 x 0,2 19.5 0.6 2.5 13.1 296
24 x 1 32 x 0,2 19.5 0.6 2.5 15.6 374
27 x 1 32 x 0,2 19.5 0.6 2.5 16.0 420
37 x 1 32 x 0,2 19.5 0.6 2.5 18.2 575
2 x 1,5 30 x 0,25 13.3 0.6 2.8 6.4 51.8
3 x 1,5 30 x 0,25 13.3 0.6 2.8 6.6 70.6
4 x 1,5 30 x 0,25 13.3 0.6 2.8 7.4 87.3
5 x 1,5 30 x 0,25 13.3 0.6 2.8 8.2 114
7 x 1,5 30 x 0,25 13.3 0.6 2.8 9.0 149
12 x 1,5 30 x 0,25 13.3 0.6 2.8 12.2 255
19 x 1,5 30 x 0,25 13.3 0.6 2.8 14.6 404
24 x 1,5 30 x 0,25 13.3 0.6 2.8 17.4 510
27 x 1,5 30 x 0,25 13.3 0.6 2.8 17.8 574
37 x 1,5 30 x 0,25 13.3 0.6 2.8 20.3 787
2 x 2,5 50 x 0,25 7.98 0.6 3.2 7.0 67
3 x 2,5 50 x 0,25 7.98 0.6 3.2 7.5 98.8
4 x 2,5 50 x 0,25 7.98 0.6 3.2 8.3 131
5 x 2,5 50 x 0,25 7.98 0.6 3.2 9.3 168
7 x 2,5 50 x 0,25 7.98 0.6 3.2 10.4 223
12 x 2,5 50 x 0,25 7.98 0.6 3.2 20.4 380
2 x 4 56 x 0,3 4.95 0.8 4.0 8.6 113
3 x 4 56 x 0,3 4.95 0.8 4.0 9.2 158
4 x 4 56 x 0,3 4.95 0.8 4.0 10.3 207
5 x 4 56 x 0,3 4.95 0.8 4.0 11.4 268
7 x 4 56 x 0,3 4.95 0.8 4.0 12.6 356
2 x 6 84 x 0,3 3.30 0.8 4.6 9.8 160
3 x 6 84 x 0,3 3.30 0.8 4.6 10.5 223
4 x 6 84 x 0,3 3.30 0.8 4.6 12 298
5 x 6 84 x 0,3 3.30 0.8 4.6 13.1 298
2 x 10 80 x 0,4 1.91 1.2 6.6 13.8 270
3 x 10 80 x 0,4 1.91 1.2 6.6 14.8 375
4 x 10 80 x 0,4 1.91 1.2 6.6 16.5 496
2 x 16 126 x 0,4 1.21 1.2 7.9 16.4 448
3 x 16 126 x 0,4 1.21 1.2 7.9 17.6 625
4 x 16 126 x 0,4 1.21 1.2 7.9 19.8 825
2 x 25 196 x 0,4 0.780 1.5 10.0 20.7 708
3 x 25 196 x 0,4 0.780 1.5 10.0 22.2 1068
4 x 25 196 x 0,4 0.780 1.5 10.0 24.8 1312
2 x 35 276 x 0.40 0.554 1.8 12.0 25.2 977
3 x 35 276 x 0.40 0.554 1.8 12.0 26.8 1363
4 x 35 276 x 0.40 0.554 1.8 12.0 29.8 1799
