SILICABLE® TPT Lead wire for hermetically sealed motors -30 °C to +125 °C
  • SILICABLE® TPT Lead wire for hermetically sealed motors -30 °C to +125 °C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILICABLE® TPT Lead wire for hermetically sealed motors -30 °C to +125 °C

SILICABLE® TPT Lead wire for hermetically sealed motors -30 °C to +125 °C

Characteristics

• Continuous operating temperatures: -30 °C to +125 °C
• Excellent resistance to R12, R22, R134a, R502, etc. refrigerant gases and refrigerant oils.
• Excellent mechanical properties (abrasion and flexibility).
• Rated voltage: 600 V.
• Test voltage: 2500 V.

Standard products

• Solid white.
• White with coloured spiral stripe(s).

Applications

• Internal cabling for hermetically sealed motors.

Options

• Other metric or American cross-sections: contact us.
• Extra-flexible bare copper core – class 6 as per IEC 60228. See details of the option below.
• Other nominal stranding: contact us.

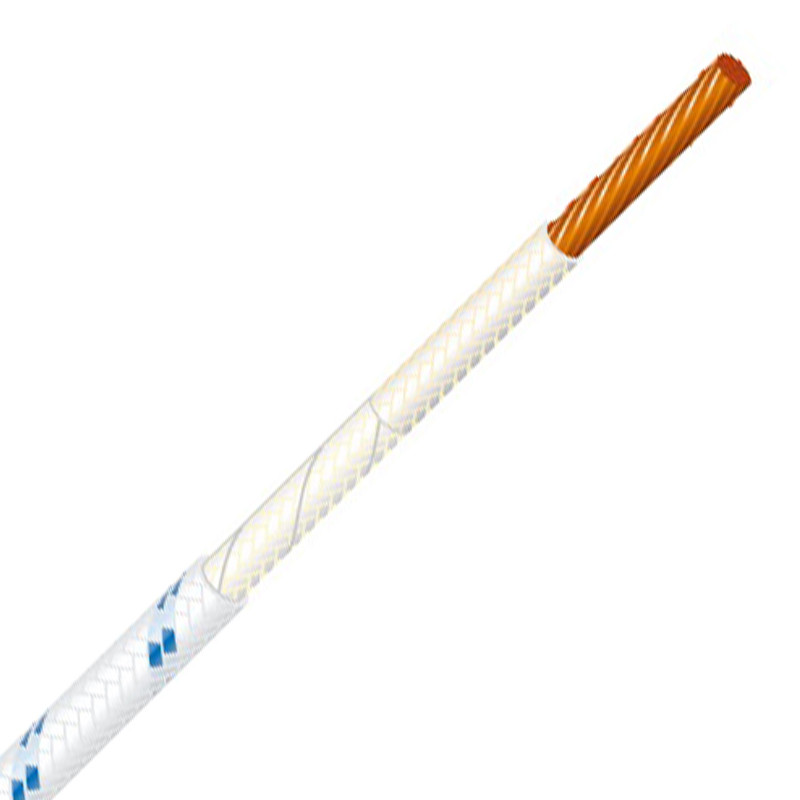

1 • Flexible bare copper core - class 5 as per IEC 60228
2 • Heat-stabilized non-coated high resistance polyester braid.
3 • Polyester tape(s).

Flexible core • Class 5 as per IEC 60228

INSULATED WIRE OR CABLE

Nominal cross-section
[mm2]
Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal diameter (mm)Approximate linear weight (kg/km)
0,5 16 x 0,20 39,0 1,5 5,2
0,75 24 x 0,20 26,0 1,7 7,4
1 32 x 0,20 19,5 1,8 9,5
1,5 30 x 0,25 13,3 2,1 13,6
2,5 50 x 0,25 7,98 2,6 22,1
4 56 x 0,30 4,95 3,2 36,2
6 84 x 0,30 3,30 3,7 53,5
10 80 x 0,40 1,91 5,6 90,4
16 126 x 0,40 1,21 6,7 143
25 196 x 0,40 0,78 8,3 228
35 276 x 0,40 0,554 10,6 312
50 396 x 0,40 0,386 12,1 448
70 360 x 0,50 0,272 14,4 634

Extra-flexible core • Class 6 as per IEC 60228

INSULATED WIRE OR CABLE

Nominal cross-section (mm²)Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal diameter (mm)Approximate linear weight (kg/km)
0,5 28 x 0,15 39,0 1,5 5,3
0,75 42 x 0,15 26,0 1,7 7,5
1 56 x 0,15 19,5 1,8 9,6
1,5 85 x 0,15 13,3 2,3 13,7
2,5 140 x 0,15 7,98 2,8 22,3
4 224 x 0,15 4,95 3,4 36,6
6 301 x 0,15 3,30 4,0 54
10 322 x 0,20 1,91 5,6 91,3
16 126 x 0,40 1,21 6,7 144
25 792 x 0,20 0,780 8,3 230
35 1121 x 0,20 0,554 10,6 315
50 1628 x 0,20 0,386 12,1 452
70 2294 x 0,20 0,272 14,4 640
