Silicon heating cords - C1S - C1S/T - C1S/I
  • Silicon heating cords - C1S - C1S/T - C1S/I

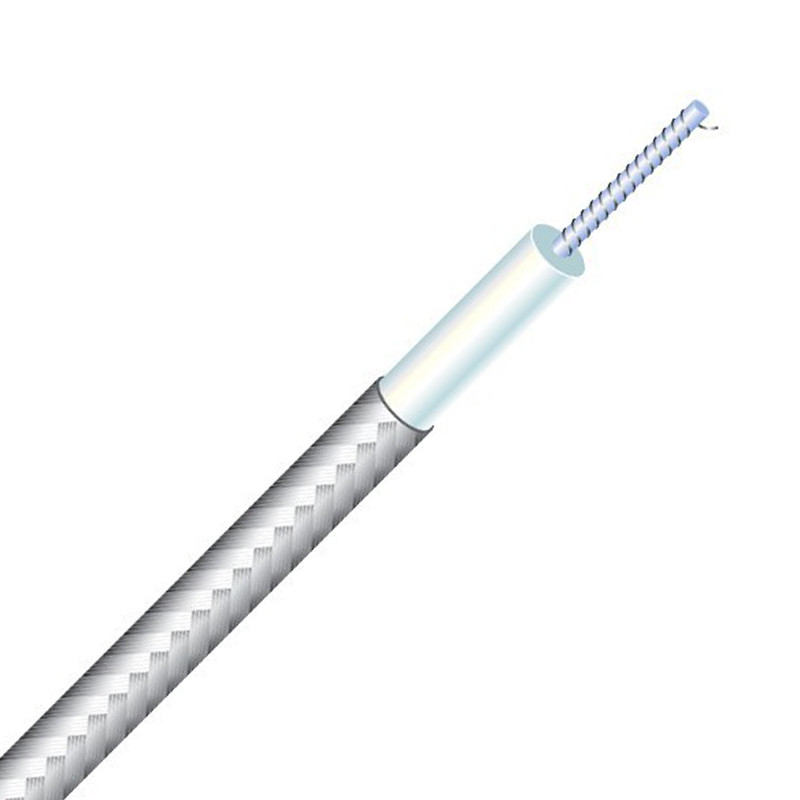

Photos are for informational purposes only. View product specification

Manufacturer: Flexelec

Silicon heating cords - C1S - C1S/T - C1S/I

Silicon heating cords - C1S - C1S/T - C1S/I

Aplications

C1S, C1S/T and C1S/I heating cords are mainly used in the household electrical or refrigeration industries, or in machines requiring protection against freezing or temperature maintenance. To ensure that these heating cables elements enjoy a long service life, we recommend using a control device.


Characterictics
  • UL Recognized cord on request.
  • C1S: silicon elastomer heating cord.
  • C1S/T: silicon elastomer heating cord with tinned copper braid for mechanical protection and earthing.
  • C1S/I: silicon elastomer heating cord with stainless steel braid for mechanical protection and earthing.

PRODUCTSINSULATION CLASS
C1S CLASS 0 (single insualated)
CLASS III (if low voltage)
C1S/T – C1S/I CLASS I (earthing)

 C1SC1S/T - C1S/
Support Fibre glass
Ø 0.7 or Ø 1.1 mm
Heating wire nickel-copper or nickel-chrome
Insultaion Silicon elastomter
Diameter 2.4 ~ 3.5 mm 2.7 ~ 3.8 mm
Max. ohmic value 5000 Ω/m
Max. power 30 W/m
Max. voltage 600 V
Permissible surface temperature from - 70°C to + 200°C
Tolerances Resistance ± 10 %
Diameter + 0.2 /- 0.1 mm
