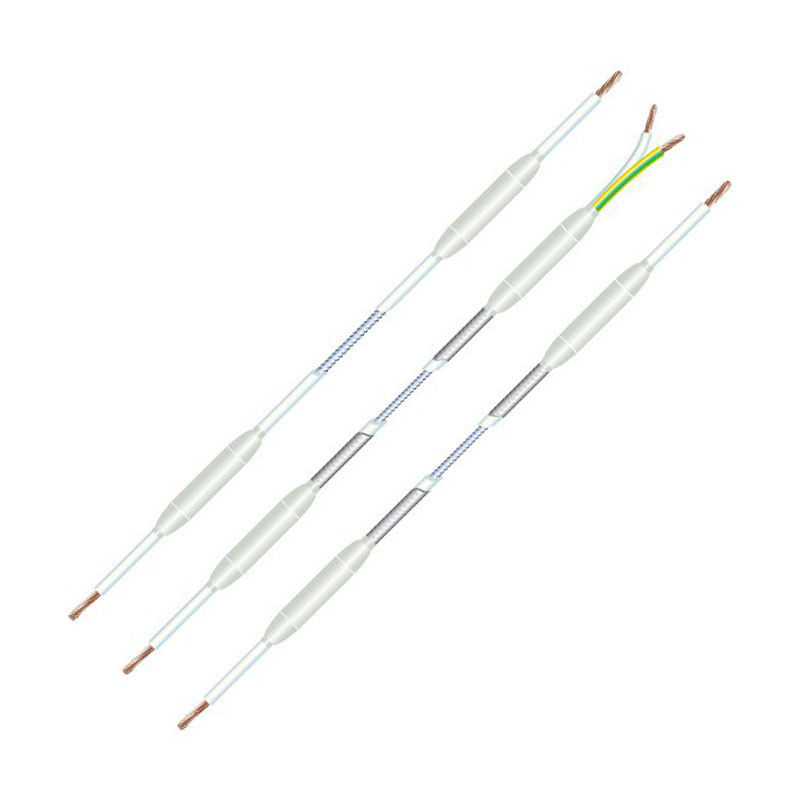

Silicon insulated heating cables - CS - CS/T - CS/TW - CS/I - CS/IW

Silicon insulated heating cables - CS - CS/T - CS/TW - CS/I - CS/IW

Aplications

CS, CS/T, CS/TW, CS/I and CS/IW heating cables are mainly used in the household electrical and refrigeration industries and for equipment where protection against freezing or temperature maintenance is necessary. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characterictics
  • Connections insulated with a silicon moulding.
  • Power cable: standard length: 1 m.
  • CS: silicon elastomer insulated heating cable.
  • CS/T: silicon elastomer insulated heating cable with tinned copper braid and earthing conductor.
  • CS/TW: silicon elastomer insulated heating cable with tinned copper braid for mechanical protection, no earthing conductor.
  • CS/I: silicon elastomer insulated heating cable with stainless steel braid and earthing conductor.
  • CS/IW: silicon elastomer insulated heating cable with stainless steel braid for mechanical protection, no earthing conductor.


 CSCS/T   CS/TW
CS/I   CS/IW
Heating wirenickel-copper or nickel-chrome
InsultaionSilicon elastomer
Diameter2.3 to 3.5 mm3 mm to 4 mm
Max. power30 W/m
VoltageAny voltage on requestup to 500 V
Permissible surface temperaturefrom - 70°C to + 200°C
TolerancesResistance ± 10 %
Diameter + 0.2 /- 0.1 mm
Length: ± 1 %
Connection insulationSealed silicon moulding
