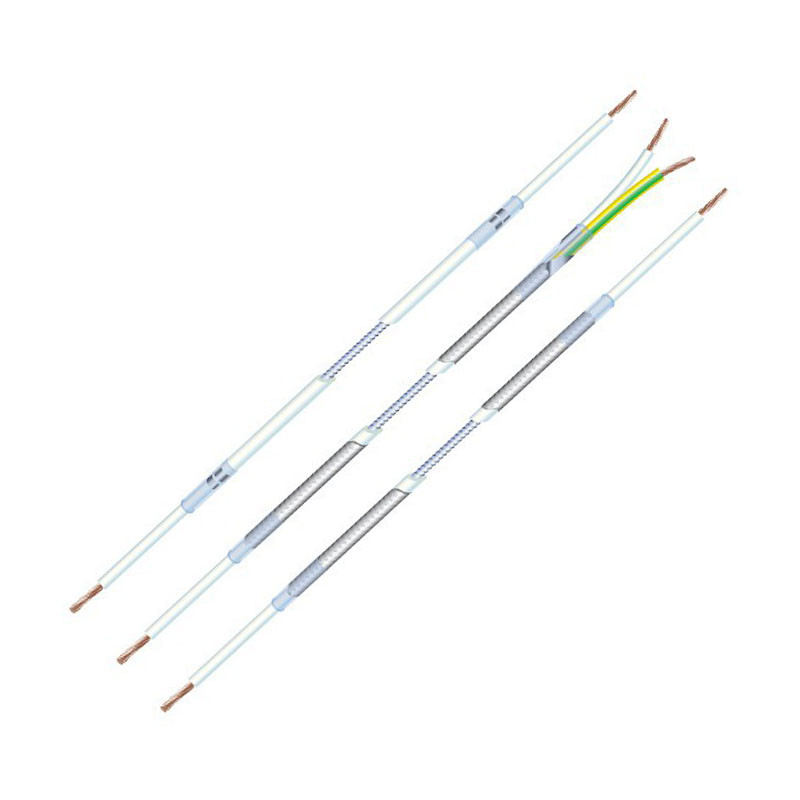

Silicon insulated heating cables - CS2 - CS2/T - CS2/TWW

Silicon insulated heating cables - CS2 - CS2/T - CS2/TWW

Aplications

CS2, CS2/T and CS2/TW heating cables are mainly used in the household electrical and refrigeration industries and for machines where protection against freezing or temperature maintenance is necessary. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characterictics
  • Power cable: standard length: 1 m.
  • CS2: silicon elastomer insulated heating elements.
  • CS2/T: silicon elastomer insulated heating elements with tinned copper braid and earthing conductor.
  • CS2/TW: silicon elastomer insulated heating elements with tinned copper braid for mechanical protection, no earthing conductor.


 CSCS2/T   CS2/TW
Heating wirenickel-copper or nickel-chrome
InsultaionSilicon elastomer
Diameter2.3 to 3.5 mm3 mm to 4 mm
Max. power30 W/m
VoltageAny voltage on requestup to 500 V
Permissible surface temperaturefrom - 70°C to + 200°C
TolerancesResistance ± 10 %
Diameter + 0.2 /- 0.1 mm
Length: ± 1 %
Connection insulationHeat-shrink sheath with adhesive
