SILIFLON® PFA and EPFA -90 °C to +260 °C
  • SILIFLON® PFA and EPFA -90 °C to +260 °C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILIFLON® PFA and EPFA -90 °C to +260 °C

Characteristics

• Continuous operating temperatures: -90 °C to +260 °C
• Excellent resistance to aggressive chemical environments.
• Excellent resistance to humidity and UV.
• Excellent mechanical strength.
• Rated voltage: 450/750 V
• Test voltage: 2500 V.

Standard products

• All colours including translucent.

Approvals - standards

• Series inspired by standards NF C 93-524 and DIN VDE 0250 Part 106.

Applications

• Cabling for rotating machines.
• Cabling in household electrical appliances, electronics.
• Cabling in hot or cold environments (cryogenics).
• Cabling in aggressive environments (humidity, chemicals, etc.).
• Cabling requiring compact size and excellent mechanical strength.

Options

• Nickel-plated copper core: ref. CNPFA.
• Silver-plated copper core: ref. APFA.
• Pure nickel core: ref. NPFA
• Outer electrical shielding: > Tin-plated copper braid: ref. PFABE or EPFABE.
• Other nominal metric or American cross-sections: contact us.
• Other nominal stranding: contact us.
• Other options and/or combinations of the options outlined above: contact us.

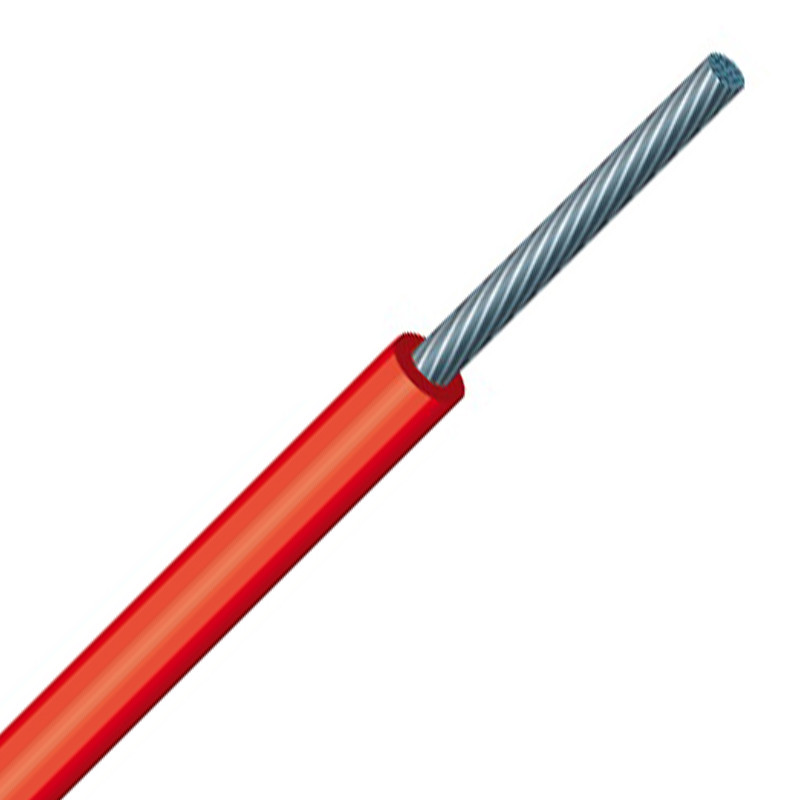

1 • Bare (ref. PFA) or tin-plated (ref. EPFA) copper core.
2 • Insulation: Fluorinated polymer PFA.



CONDUCTING CORE

DRUT LUB KABEL IZOLOWANY

Nominal cross-section
[mm2]
Nominal strandingMaximum linear resistance at 20 °C
[Ω/km]
Nominal thickness of insulation
[mm]
Nominal diameter
[mm]
Approximate linear weight
[kg/km]
0,05 7 x 0,10 373 0,17 0,65 1,1
0,09 7 x 0,13 214 0,17 0,7 1,4
0,12* 7 x 0,15 161 0,17 0,8 1,9
0,14** 7 x 0,16 141 0,17 0,8 2,0
0,15 19 x 0,10 136 0,20 0,9 2,3
0,22 7 x 0,20 89,9 0,20 1,0 3,0
0,25 19 x 0,13 80,0 0,20 1,05 3,4
0,34 7 x 0,25 57,5 0,20 1,15 4,3
0,38** 19 x 0,16 54,1 0,20 1,15 4,6
0,5 7 x 0,30 39,6 0,20 1,3 5,9
0,5 16 x 0,20 39,0 0,20 1,3 6,2
0,6 19 x 0,20 32,8 0,20 1,4 6,7
0,75 24 x 0,20 26,0 0,20 1,45 8,8
0,88 7 x 0,40 22,2 0,20 1,5 9,3
0,93 19 x 0,25 21,0 0,20 1,7 10,5
1 32 x 0,20 19,5 0,20 1,7 11,9
1,34 19 x 0,30 14,6 0,20 1,9 14,3
1,5 30 x 0,25 13,3 0,20 1,95 16,3
2,5 50 x 0,25 7,98 0,20 2,5 26,6
4 56 x 0,30 4,95 0,25 3,1 40,4
6 84 x 0,30 3,30 0,35 3,9 57,7
10 80 x 0,40 1,91 0,40 5,2 104
16 126 x 0,40 1,21 0,40 6,2 150
25 196 x 0,40 0,780 0,60 8,2 248
35 276 x 0,40 0,554 0,60 9,2 328
50 396 x 0,40 0,386 0,70 11,2 478


*Nominalny przekrój niedostępny z ref. EFEP
**Nominalny przekrój niedostępny z ref. FEP
