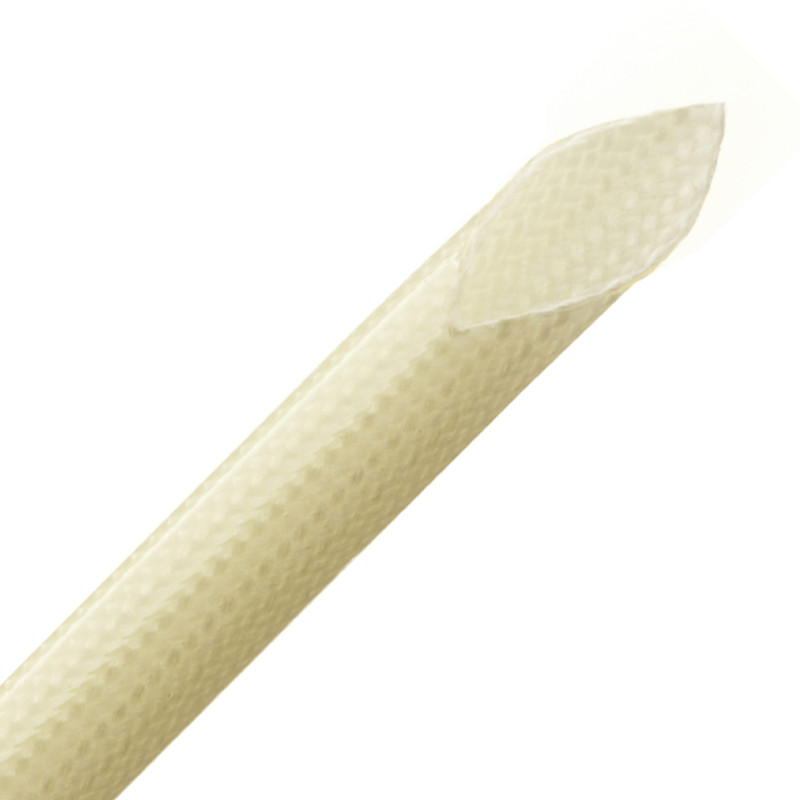

SILIGAINE® 13F4 -30 °C to +155 °C Class F
  • SILIGAINE® 13F4 -30 °C to +155 °C Class F

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILIGAINE® 13F4 -30 °C to +155 °C Class F

SILIGAINE 13F4 -30°C to +155°C (klasa F)

Characteristics
• Continuous operating temperature: -30 °C to +155 °C
• Good resistance to oils and common chemical environments.
• Compatible with most impregnation varnishes class F.
• Flame retardant as per standard UL 1441.
• Very good flexibility.
• Dielectric strength (dry): > 4 kV

Standard products
• Colour: natural.

Packaging
• Diameters from 0.5 to 1.5 mm: 200 m rolls.
• Diameters from 2 to 4.5 mm: 100 m rolls.
• Diameters from 5 to 25 mm: 50 m rolls.

Standards
• IEC 60684-1 and 60684-2
• IEC 60684-3 part 409.
• UL approval, category UZKX2: meets the requirements of the horizontal flame test File no.: E310331.

Applications
• Internal cabling for rotating and static machines, classes B and F (motors, alternators, generators, transformers, inductors, etc.).

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.





INTERNAL DIAMETERSILIGAINE 13F4
Nominal value (mm)Tolerance (mm)Approximate wall thickness (mmApproximate linear weight (kg/km)
0.5±0.200.251.6
0.8±0.200.252.6
1±0.250.253.3
1.5±0.250.355.0
2± 0.250.356.7
2.5± 0.250.48.6
3± 0.250.410.4
3.5± 0.300.412.3
4± 0.300.514.2
4.5± 0.300.516.2
5± 0.300.518.3
6± 0.300.522.5
7± 0.400.526.9
8± 0.400.531.5
9± 0.500.536.3
10± 0.500.6541.2
12± 1.00.6551.7
14± 1.00.6562.9
16± 1.00.6574.9
18± 1.00.6587.7
20± 1.00.65101
22± 1.50.65116
25± 2.00.65125
