SILIGAINE® 15C3-UV -60 °C to +250 °C
  • SILIGAINE® 15C3-UV -60 °C to +250 °C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILIGAINE® 15C3-UV -60 °C to +250 °C

SILIGAINE® 15C3-UV -60 °C to +250 °C

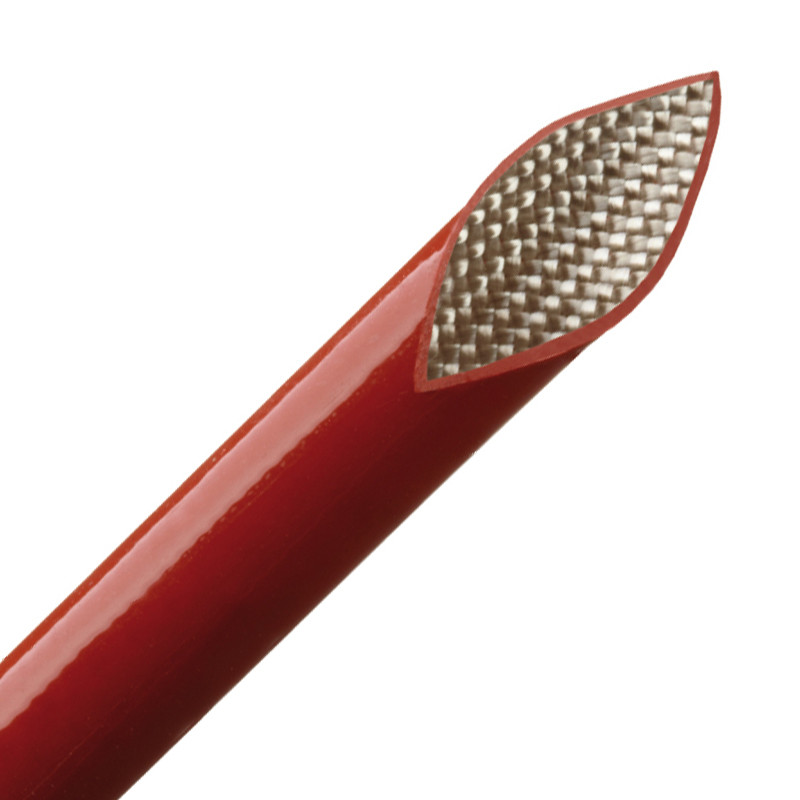

15C3-UV - FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING RESISTANCE TO UV RAYS

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Good resistance to humidity, ozone and UV (direct exposure, outside conditions).
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): > 3 kV.

Standard products:
• Colour : brick red.

Packaging
• Diameters from 0.5 to 4.5 mm: 200 m rolls
• Diameter 5 mm: 100 m rolls
• Diameters from 6 to 16 mm: 100 m spools.
• Diameters from 18 to 22 mm: 50 m spools
• Diameters from 25 to 40 mm: 25 m spools.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 401
• Certificate of resistance to UV CNEP no. NS JR 2011-557.

Applications
• Protection of cables, wiring harnesses, etc. against UV radiation. This sleeving has been developed specially for lasting protection in normal outside conditions

Options
• Other diameters: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETERSILIGAINE 15C3-UV
Nominal value (mm)Tolerance (mm)Minimum wall thickness (mm)Approximate linear weight (kg/km)
0.5±0.150.202.4
0.8±0.150.203.0
1±0.200.203.4
1.5±0.200.204.5
2± 0.200.205.7
2.5± 0.200.206.9
3± 0.200.208.2
3.5± 0.250.209.6
4± 0.250.3011.1
4.5± 0.250.3012.6
5± 0.250.3014.2
6± 0.250.3017.5
7± 0.250.3021.1
8± 0.250.3024.9
9± 0.500.3029.0
10± 0.500.4033.3
12± 0.500.4054.6
14± 1.00.4077.2
16± 1.00.4092.7
18± 1.00.40112
20± 1.00.40134
22± 1.00.40158
25± 1.00.40197
30± 2.00.40267
35± 2.00.40327
40± 2.00.40389
