SILIGAINE 31-1 and 31-2 - 30˚C to + 450˚C
  • SILIGAINE 31-1 and 31-2 - 30˚C to + 450˚C

Photos are for informational purposes only. View product specification

Manufacturer: OMERIN

SILIGAINE 31-1 and 31-2 - 30˚C to + 450˚C

SILIGAINE 31-1 i 31-2 - 30˚C - + 450˚C

Technical data:
- Constant operation temperature -30°C - + 450°C – Momentary temperature + 500°C.
- fire proof
- very elastic
- good resistance for normal chemical environment.
- It shreds a little bit during cutting.
- Dielectric withstand 0.8 kV.

Product:
- standard colour: silver grey (natural).

Packing:
- diameter 0.5 do 8 mm: 100 m (rollers)
- diameter 9 do 12 mm: 50 m (rollers)
- diameter 14 do 16 mm: 25 m (rollers)
- diameter 18 do 45 mm: 100 m (rollers).

Options:
- Other diameters up to 150mm : contact us.
- Delivery of cut jacket: contact us.
- high temperature thermally processed jacket, impregnated with silicone lacquer. ref. 31C1.
- jacket from glass fibre, not thermally processed. ref. 32.
- jacket from glass fibre, not thermally processed, flat. ref. 33.

Application
- Heating elements in very high temperatures.
- Industrial electro thermal machines. (np piece)
- Domestic heating devices, cooking devices.

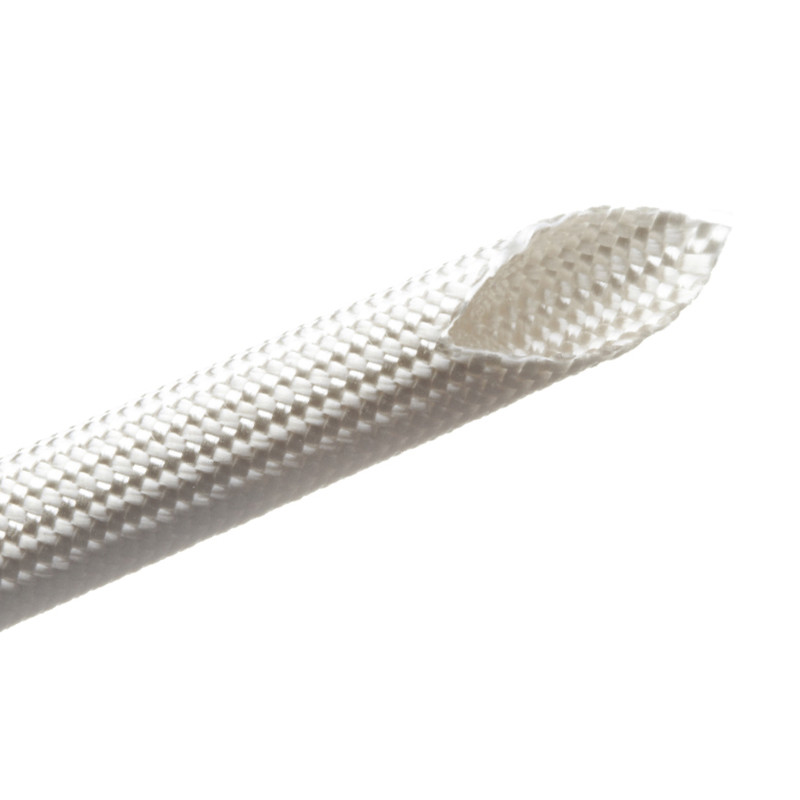

31-1 : Wattle jacket from fibre glass thermally processed, non impregnated.



internal diameter [mm]

SILIGAINE 31-1

SILIGAINE 31-2

min wall thickness
[mm]

Estimated weight
[kg/km]

min wall thickness
[mm]

Estimated weight
[kg/km]

0.5

0.15

1.50

0.30

3.00

0,8 0,15 1,80 0,30

3.60

1

0.25

1.90

0.50

3.80

1.5

0.25

2.30

0.50

4.60

2

0.25

3.10

0.50

6.20

2.5

0.25

3.90

0.50

7.80

3

0.25

4.80

0.50

9.60

3.5

0.25

5.60

0.50

11.2

4

0.25

7.60

0.50

15.2

4.5

0.25

8.00

0.50

16.0

5

0.30

10.0

0.60

20.0

6

0.30

12.0

0.60

24.0

7

0.30

14.0

0.60

27.0

8

0.30

15.0

0.60

30.0

9

0.30

17.0

0.60

35.0

10

0.45

18.0

0.90

36.0

12

0.45

24.0

0.90

48.0

14 0,45

33.0

0.90

66.0

16

0.55

42.0

1.10

84.0

18

0.55

45.0

1.10

90.0

20

0.55

57.0

1.10

114.0

25

0.55

60.0

1.10

120.0

30

0.55

70.0

1.10

140.0

35

0.55

80.0

1.10

160.0

40

0.55

105.0

1.10

210.0

45

0,55 110,0 1,10

220.0

50

0.55

125.0

1.10

250.0
