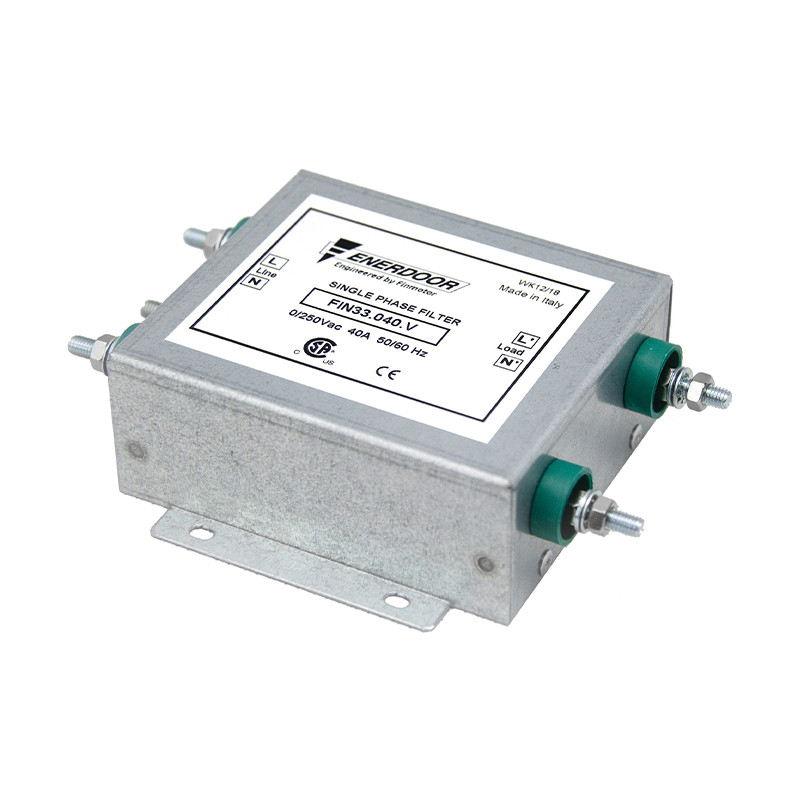

Single phase filter series FIN33

Single Phase Filter  series FIN33

Electric characteristics:
Nominal Voltage 0/250V AC - 50/60 Hz
Phase to phase test voltage
Phase to ground test voltage
1750 VDC (2s)
2150 VDC (2s)
Climatic class -40/+85oC



Technical Specifications

FIN33

IN
[A]
∑Cx [nF]
±5%
Cy [nF]
±5%
L1[mH]
±5%
Pow Loss
 [W]
.003.F 3 0.082 1.7 4.7 1.5
.006.F 6 0.082 1.7 4.7 2.1
.010.F 10 0.082 1.7 4.7 2.8
.020.F 20 0.2 0.8 3.5 3.8
.040.V 40 0.2 0.7 2.5 4.5
.050.V 50 0.2 0.6 2 5.5
.075.V 75 0.2 0.6 2.1 7
Leakage current at 230 V phase to ground- 50 Hz / 40OC <1mA


Mechanical dimensions

FIN33

ABHNFLIVdWeight
[Kg]
Case
.003.F 20.5 33 66 5 56 45 14 6.5 0.13 1
.006.F 20.5 33 66 5 56 45 14 6.5 0.13 1
.010.F 20.5 33 66 5 56 45 14 6.5 0.2 1
.020.F 39 51.8 84 5 74 65 15 6.5 0.18 2
.040.V 40 86.6 107 96 6x4 50/55 100 20 M5 0.18 3
.050.V 50 100 125 115 6x4 120 180 50 M6 0.30 4
.075.V 72 120 152 135 8x4 120 182 30 M8 0.40 5



Typical attenuation

Filtry jednofazowe seria FIN33 charakterystyka



Electric diagram

Filtry jednofazowe seria FIN33 - schemat


Dimensions
Case 1
Filtry jednofazowe seria FIN33 - obudowa
Case 2
Filtry jednofazowe seria FIN33 - obudowa
Case 3
Filtry jednofazowe seria FIN33 obudowa
