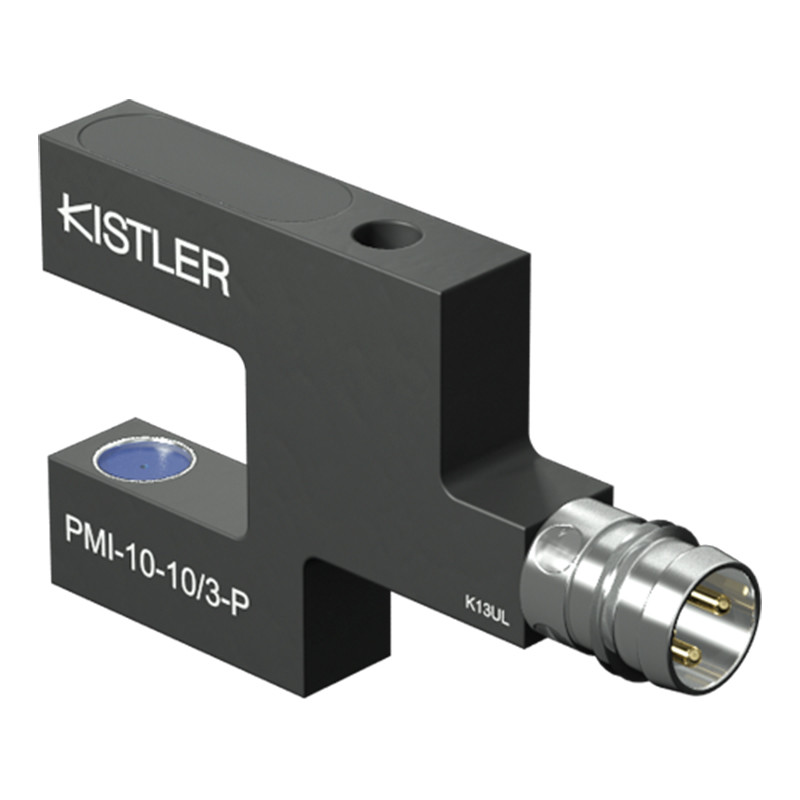

Slotted light barrier (infrared light) - PM type
  • Slotted light barrier (infrared light) - PM type

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Slotted light barrier (infrared light) - PM type

Slotted light barrier (infrared light) - PM type
Specifications:
• Circuit constant light trigger
• Voltage 12...30V
• load current 200mA
• Current consumption: max 60mA
• Operation: static
• Output with LED PNP
• Function dark function
• Output current 500 mA,
• Repeatability: < 0,02mm
• Frequency: > 1 kHz
• Operating temperature: 0...60°C
• EMC: IEC 801.... CE
• Type of protection: IP 65

Accuracy:
Fork width A: element diameter 5 -10 - 20mm,
0,3 - 0,4 - 0,6mm.

Dimensions [mm]





A 5 10 10 10 20
B 10 10 20 30 30

Catalogue number Light barrier with 3 pole M8 socket Terminals - 3 pole M8 socket
PMI-5-10/3-P 6311-00000-3002
PMI-10-10/3-P 6312-00000-3002
PMI-10-20/3-P 6320-00000-3002
PMI-10-30/3-P 6317-00000-3002
P M1-20-30/3-P 6313-00000-3002
