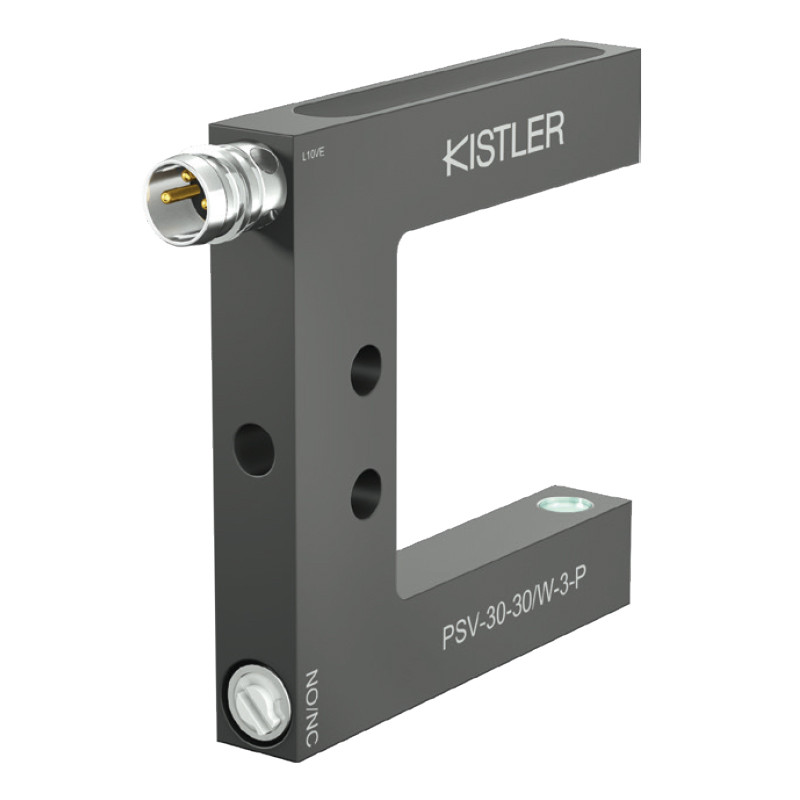

Slotted light barrier (infrared light) - PM type
  • Slotted light barrier (infrared light) - PM type

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Slotted light barrier (infrared light) - PM type

Slotted light barrier (infrared light) - PM type
Specifications:
• Circuit: chopped light trigger
• Wave length red light LED 650 nm
• Voltage 12...30V
• Current consumption max 60mA
• Operation static
• Output with LED PNP
• Function bright-dark switch
• Output current: 500 mA,
• Repeatability: < 0,02mm
• Frequency: 4kHz
• Operating temperature: 0...60°C
• EMC: IEC 801.... CE
• Type of protectiony: IP 65

Accuracy:
  Gap diameter A:    10 - 20/25 - 30 - 40mm,
  Element diameter:        0,2-0,3- 0,4-0,5mm.


Dimensions [mm]

TypeLight barrierDimensionsTerminals -3 pole M8 socket
AB
PSV-10-30/W-3-P 6332-00010-3022 10 30
PSV-20-30/W-3-P 6334-00010-3022 20 30
PSV-20-40/W-3-P 6351-00010-3022 20 40
PSV-20-60/W-3-P 6352-00010-3022 20 60
PSV-25-80/W-3-P 6360-00010-3022 25 80
PSV-30-30/W-3-P 6336-00010-3022 30 30
PSV-30-40/W-3-P 6354-00010-3022 30 40
PSV-30-60/W-3-P 6355-00010-3022 30 60
PSV-40-40/W-3-P 6357-00010-3022 40 40
PSV-40-60/W-3-P 6358-00010-3022 40 60
PSV-40-80/W-3-P 6359-00010-3022 40 80
