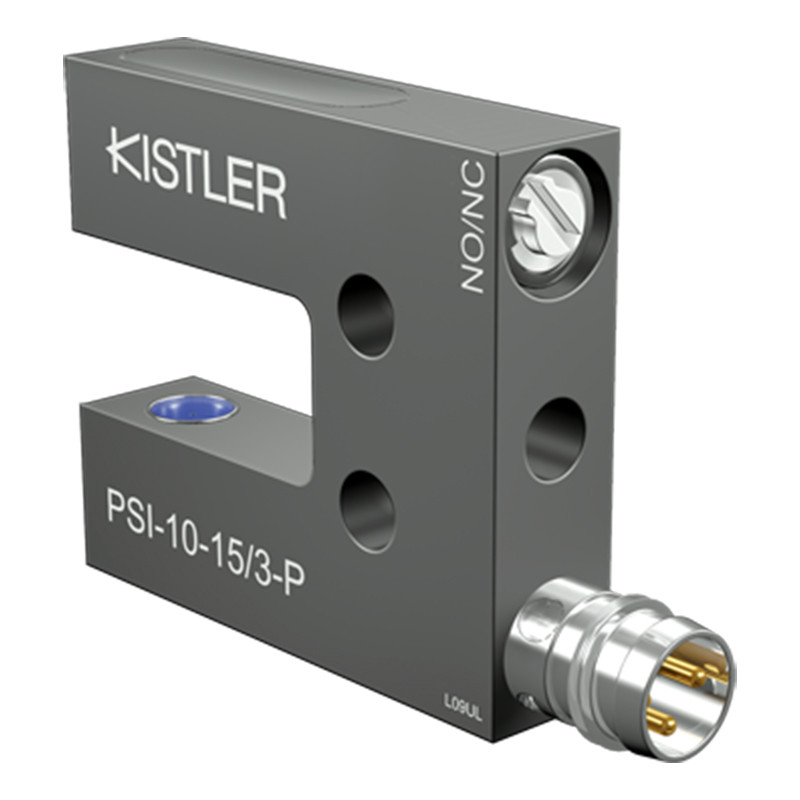

Slotted light barrier (infrared light) - PM type

Slotted light barrier (infrared light) - PM type

Specifications:
• Circuit: type PSI...-constant light trigger
  type PSI-   /W-3-P - chopped light trigger
• Voltage 12...30V
• Current consumption max 60mA
• Operation static
• Output with LED: PNP
• Function: bright-dark switch
• Output current 500mA,
• Repeatability: < 0,02mm
• Frequency: type PSI...             - > 1kHz
  type PSI-    /W-3-P   - > 4kHz
• Operating temperature: 0...60°C
• EMC: IEC 801.... CE
• Type of protection: IP 65

Accuracy:
• type PSI... gap width A:
10 - 20/25 - 30 - 40mm
  element diameter:
   0,4-0,6- 0,7-1mm
• type PSI-...../W-3-P gap width A:
10 - 20/25 - 30/40mm
  element diameter:
    0,2 - 0,3 -    0,4mm


Dimensions[mm]

PSI-...-...



TypeLight barrierDimensions
AB
PSI-10-15/3-P 6331-00000-3002 10 15
PSI-10-30/3-P 6332-00000-3002 10 30
PSI-20-15/3-P 6333-00000-3002 20 15
PSI-20-30/3-P 6334-00000-3002 20 30
PSI-20-40/3-P 6351-00000-3002 20 40
PSI-20-60/3-P 6352-00000-3002 20 60
PSI-25-80/3-P 6360-00000-3002 25 80
PSI-30-15/3-P 6335-00000-3002 30 15
PSI-30-30/3-P 6336-00000-3002 30 30
PSI-30-40/3-P 6354-00000-3002 30 40
PSI-30-60/3-P 6355-00000-3002 30 60
PSI-40-40/3-P 6357-00000-3002 40 40
PSI-40-60/3-P 6358-00000-3002 40 60
PSI-40-80/3-P 6359-00000-3002 40 80
PSI-...-.../W-3-P



TypeLight barrierDimensions
AB
PSI-10-30/W-3-P 6332-00000-3022 10 30
PSI-20-30/W-3-P 6334-00000-3022 20 30
PSI-20-40/W-3-P 6351-00000-3022 20 40
PSI-20-60/W-3-P 6352-00000-3022 20 60
PSI-25-80/W-3-P 6360-00000-3022 25 80
PSI-30-30/W-3-P 6336-00000-3022 30 30
PSI-30-40/W-3-P 6354-00000-3022 30 40
PSI-30-60/W-3-P 6355-00000-3022 30 60
PSI-40-40/W-3-P 6357-00000-3022 40 40
PSI-40-60/W-3-P 6358-00000-3022 40 60
PSI-40-80/W-3-P 6359-00000-3022 40 80
Terminals
3 pole M8 socket
