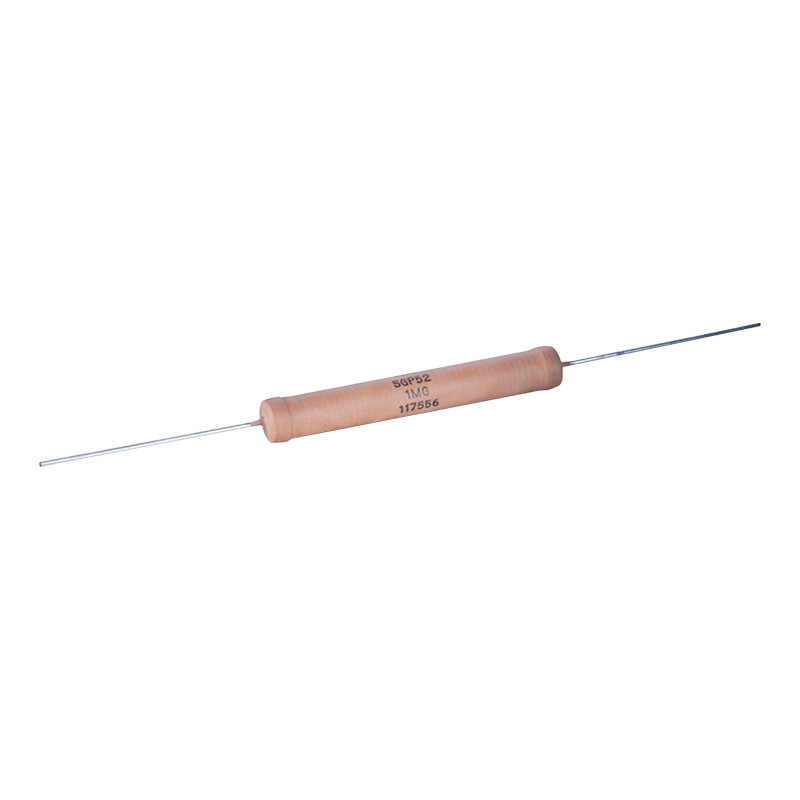

SSP/OSP SERIES – WITH HIGH MAXIMUM OPERATING TEMPERATURE, TC 50PPM/°C

Main parameters
• Non inductive construction
• Full values of power and voltage
• Very high resistances up to 30MΩ

Electrical Data
Tolerance
1% - 10%
Temperature coefficient
for 10Ω and higher -50ppm/°C , TC @ 25°C, ∆R tested at -15°C and 105°C
Dielectric withstand
1000VDC
Insulation resistance
10GΩ min
Overload
5 x nominal power @ U<1.5Un during 5s, ∆R=0.5% max or 0.5Ω max
Maximum operating temperature
275°C

Scheme

Table. Electrical data


TypeP

[W]
Un

[V]
resistancedimensions
Rmin
[Ω]
Rmax
[Ω]
A±0,5

[mm]
B±0,5

[mm]
C±0,5

[mm]
OSP 10 2 1000 0,1 10M 10,9 4,2 0,6
OSP 13 2,4 1000 0,1 12M 13,7 4,2 0,8
OSP 20 3 1000 0,1 15M 19,7 4,2 0,6
SSP 20 4 800 0,1 15M 20,2 8,2 1
SSP 26 6 2000 0,1 15M 26,9 8,2 1
SSP 32 8 4500 0,1 20M 33 8,2 1
SSP 32 F* 10 4500 1 10M 33 8,2 1
SSP 39 10 4500 0,1 20M 39,5 8,2 1
SSP 52 12,5 6000 0,1 30M 52,1 8,2 1
SSP 52 F* 15 6000 1 30M 52,1 8,2 1
SSP 148 40 6000 1 10k 148 16 -
