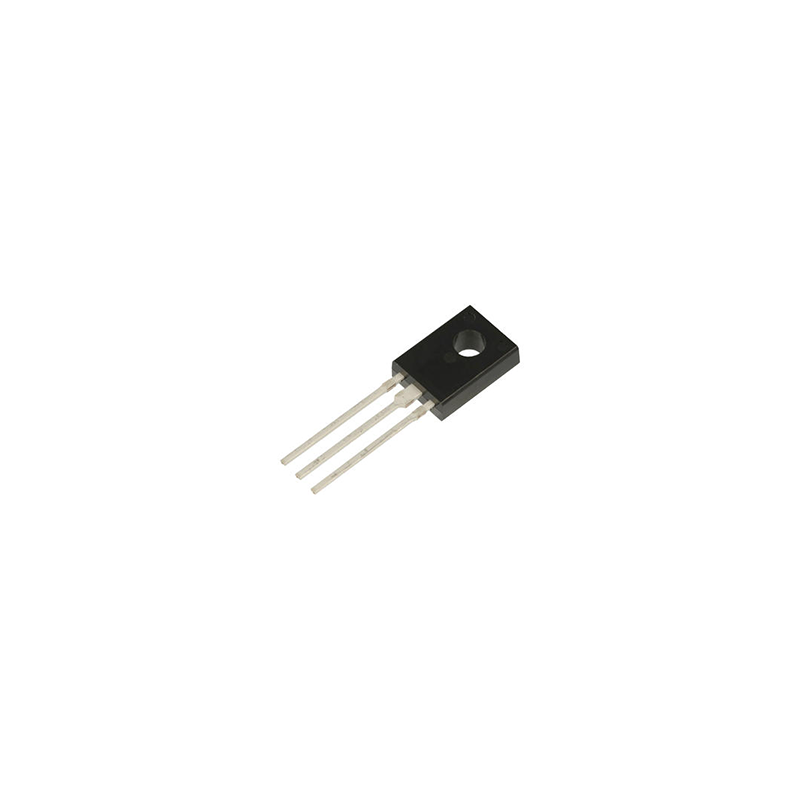

Photos are for informational purposes only. View product specification

Manufacturer: ESTEL

Standard thyristors

STANDARD THYRISTORS - ESTEL


Table. Electrical Data

TypeIT(AV)/TC
[A/°C]
UDRM,URRM
[V]
ITSM
[kA]
(di/dt)pc
[A/µs]
tq(typ)
[µs]
du/dt
[V/µs]
IGT
[mA]
Rthjc
[°C/W]
Casing
drawing
T7-250 250/88 2200-3400 6 160 320 500; 1000 300 0,04 1
T8-630 630/90 1000-1800 14 200 125 500; 1000 300 0,03
T8-800 800/85 1000-1800 15 200 125 500; 1000 300 0,03
T8A-500 500/88 2000-3000 8 200 250 500; 1000 300 0,032
T8A-630 630/77 2000-3000 8,5 200 250 500; 1000 300 0,032
T8B-500 500/88 2800-3600 8 200 320 500; 1000 300 0,034
T8C-400 400/85 3400-4600 7 200 500 500; 1000 300 0,034
T9-1600 1600/101 200-800 30 200 160 500; 1000 300 0,019 6
T9-2000 2000/95 200-800 38 200 125 500; 1000 300 0,019
T9-1000 1000/93 1000-1800 26 200 125 500; 1000 300 0,02
T9-1250 1250/88 1000-1800 28 200 160 500; 1000 300 0,02
T9A-800 800/92 2000-2800 18 200 200 500; 1000 300 0,02
T9A-1000 1000/85 2000-2800 20 200 250 500; 1000 300 0,02
T9C-630 630/95 2200-3600 14 300 250 500; 1000 300 0,021
T9C-800 800/88 2200-3600 16 300 250 500; 1000 300 0,02
T9C-1000 1000/80 2200-3600 18 500 320 500; 1000 300 0,02
T9B-500 500/95 3400-4400 13 300 350 500; 1000 300 0,021
T9B-630 630/92 3400-4400 14 300 400 500; 1000 300 0,021
T9B-800 800/82 3400-4400 15 300 400 500; 1000 300 0,021
T9D-500 500/90 5200-6200 12 160 500 500; 1000 300 0,023
T9M-1000 1000/82 2200-3600 18 300 320 500; 1000 300 0,02
T11-3200 3200/95 400-1000 65 200 200 500; 1000 300 0,01 4
T12-3200 3200/95 400-1000 65 200 200 500; 1000 300 0,01 5
T11A-2500 2500/85 1200-1800 50 200 250 500; 1000 300 0,01 4
T12A-2500 2500/85 1200-1800 50 200 250 500; 1000 300 0,01 5
T11B-2000 2000/85 2000-2600 46 200 320 500; 1000 300 0,01 4
T12B-2000 2000/85 2000-2600 46 200 320 500; 1000 300 0,01 5
T11C-1600 1600/85 3000-3600 36 200 320 500; 1000 300 0,01 4
T12C-1600 1600/85 3000-3600 36 200 320 500; 1000 300 0,01 5
T11D-1250 1250/85 3800-4400 33 200 320 500; 1000 300 0,01 4
T12D-1250 1250/85 3800-4400 33 200 320 500; 1000 300 0,01 5
T271-320 320/90 1200-2000 9 160 125 500; 1000 300 0,075 7
T5-80 80/90 600-1400 1,9 160 100 500; 1000 300 0,21 6
