Supercapacitors
  • Supercapacitors

Photos are for informational purposes only. View product specification

Manufacturer: LS Mtron

Supercapacitors

Specifications:
Rated voltage 2,8V
Zakres pojemności: 3F – 3000F
Capacity range: 10%
Operating temperature range: -40°C ÷ 65°C


Ogniwa

Part No.Capacitance
C[F]
Rated Voltage
UR[V]
ESR DC [m Ω]Max. Current [A]

Leakage Current
[mA]

Gęstośc energii [Wn/kg]Weight [kg]Operating Temperature Range
[oC]
Dimension [mm]

LSUC02R7R 0003F EA

3 2.7 100 3 <1 2.03 0.002 -100 Ø8x20

LSUC02R7R 0005F EA

5 2.7 75 4.5 <1.2 2.03 0.003 -100 Ø10x20

LSUC02R7R 0010F EA

10 2.7 50 9 <1.4 2.89 0.004 -100 Ø10x20

LSUC02R7R 0025F EA

25 2.7 35 19 <1.5 3.89 0.007 -100 Ø16x26

LSUC02R7R 0050F EA

50 2.7 25 30 <1.6 3.62 0.014 -100 Ø18x46

life time(25°C, UR):
- 10 years (ΔC<20% decrease, ΔESR<100% increase of initial specified value)
- 500 000 cycles (ΔC<20% decrease, ΔESR<100% increase of initial specified value)

Part No.Capacitance
C[F]
Rated Voltage
UR[V]
ESR DC [m Ω]Max. Current [A]Leakage Current
[mA]
Gęstośc energii [Wn/kg]Weight [kg]Operating Temperature Range
[oC]
Dimension [mm]

LSUC 002R8S 0100F EA

100 2.8 9 74 < 0.3 4.73 0.023 25 Ø22x46

LSUC 002R8S 0120F EA

120 2.8 9 81 < 0.4 5.23 0.025 25 Ø25x46

LSUC 002R8L 0350F EA

350 2.8 3.2 231 < 1 5.86 0.065 25 Ø35x61

LSUC 002R8L 0400F EA

400 2.8 3 255 <1 5.89 0.074 25 Ø35x71

life time(25°C, UR):
- 10 years (ΔC<20% decrease, ΔESR<100% increase of initial specified value)
- 500 000 cycles (ΔC<20% decrease, ΔESR<100% increase of initial specified value)

Part No.Capacitance
C[F]
Rated Voltage
UR[V]
ESR DC [m Ω]Continuous current[A]Leakage Current[mA]Weight [kg]Operating Temperature Range
[oC]
Dimension [mm]

LSUC 002R7C 0650F EA

650 2.7 0.57 640 <1.5 0.215 -40~65 Ø60x51.5

LSUC 002R7C1200F EA

1200 2.7 0.33 1160 <2.7 0.295 -40~65 Ø60x74

LSUC 002R7C1500F EA

1500 2.7 0.28 1426 <3.0 0.335 -40~65 Ø60x85

LSUC 002R7C 2000F EA

2000 2.7 0.27 1753 <4.0 0.395 -40~65 Ø60x102

LSUC  002R7C 3000F EA

3000 2.7 0.23 2396 <5.0 0.525 -40~65 Ø60x138

life time(25°C, UR):
- 10 years (ΔC<20% decrease, ΔESR<100% increase of initial specified value)
- 1 000 000 cycles (ΔC<20% decrease, ΔESR<100% increase of initial specified value)

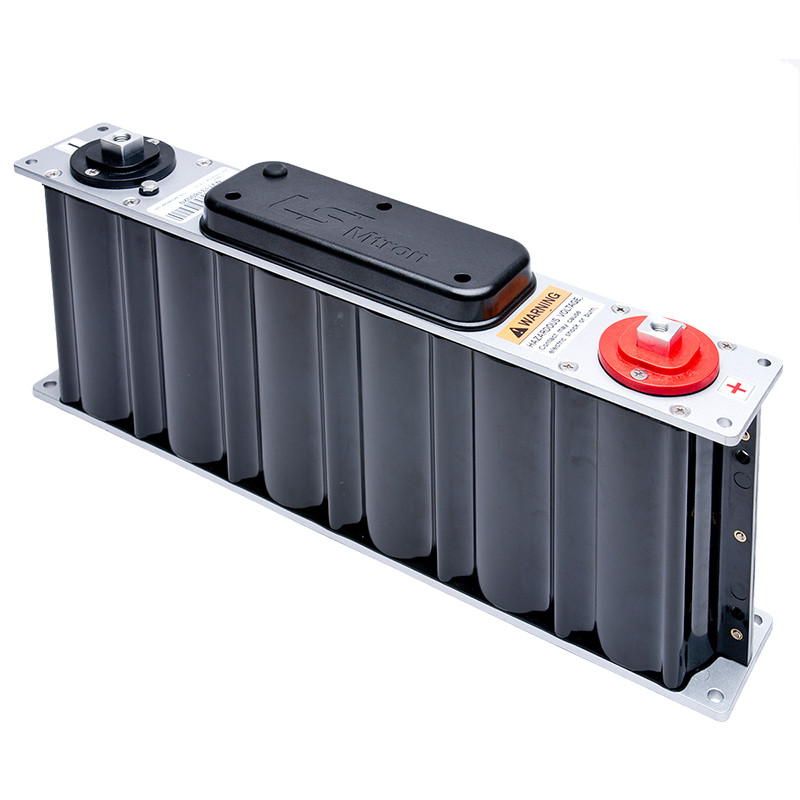

Modules

Part No.Capacitance
C[F]
Rated Voltage
UR[V]
ESR DC
[m Ω]
Continuous current[A]Leakage Current[mA]Weight
[kg]
Wyrówny-
wanie
Monitoro-
wanie
Zakres
temp. pracy
[oC]
Dimension
LxWxH
[mm]

LSUM 016R8L 0058F EA

58 16.8 22 20 <11 0.6 Aktywne
lub pasywne
- -40~65 245x47x76.6

LSUM 016R2C 0500F EA

500 16.2 1.7 200 <5 5.1 Temperatura
(NTC)
-40~65 416.2 x67.2x175.9

LSUM 048R6C 0166F EA

166 48.6 5 150 <5 14.2 -40~65 418x194x175.4

LSUM 048R6C 0166F EA

166 48.6 5 200 <5 16.7 -40~65 418x468,5x 71

LSUM 086R4C 0093F EA

93 86.4 11.3 80 <120 26 Pasywne Temperatura (PT100) -40~65 517x265x194

LSUM 129R6C 0062F EA

62 129.6 13.2 260 <5 53 Aktywne lub pasywne Temperatura
i napięcie (CAN2.0B)(2)
-40~65 720x405x226

Modules 125V - Traction, UPSs, etc.
Primary specification

Part No.Capacitance
C[F]
ESR DC
[m Ω]
Max. Current
[A]
Leakage Current
[mmA]

LSUM 129R6C 0062F EA

62,5 13,2 2,3 <27

Power [&] Energy

Part No.Energia właściwa
[Wh/kg]
Ilość zmagazynowanej energii

LSUM 129R6C 0062F EA

62,5 13,2

Standard [&] Reliability

Rated Voltage 129.6V
Max. Voltage 136.8V
Capacitance Tolerance 0% / +20%
Operating temperature range -40 ~ 65 °C
Storage temperature range -40 ~ 70 °C
Max. continuous current ΔT = 15 oC 189A
ΔT = 40 oC 260A
life time(25oC) After 10 years at rated voltage and 25oC
Capacitance change < 20%
Zmiana ESR  <100%
Cycle life (25oC) After 1000 000 cycles between rated voltage to half rated voltage at +25oC
Capacitance change < 20%
Internal resisteance change  <100%

Monitoring

Part No.Temperature sensorTemperatur [&] Voltage interfaceBalancing

LSUM  0129R6C 0062F EA

NTC Thermistor CAN 2.0B Passive or Active

Safet [&] Physical Proteciton

Isolation voltage (DC)Short circuit current (A)Environmental ProteectionShock [&] vibration Protection
4 kV 9800 IP67 IEC-61373

Dimension i Weight

Part No.Dimension [mm]Weight
LenghtWidthHeight
LSUM 129R6C 0062F EA 720 405 226 53

Dimension [mm]
