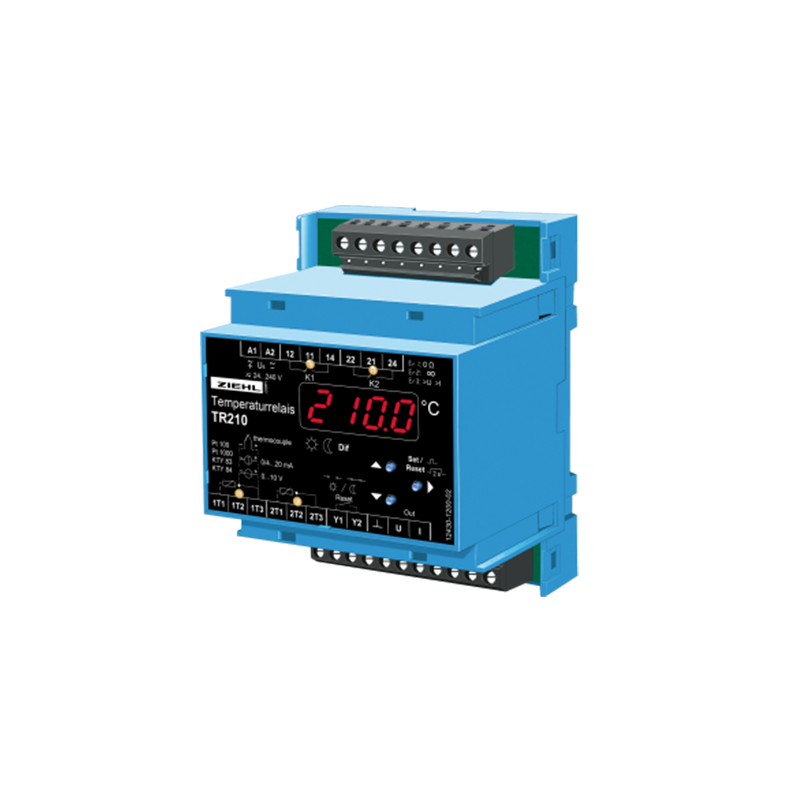

Temperature Relay Type TR210

TR210 jest używany jako The TR210 is used as
  • General temperature protection of machines and installations
  • Temperature control unit, also for cooling applications
  • Difference temperature controller unit for air-conditioning technology
Overview of functions
  • 2 Sensor inputs0.1 °C resolution between –199.9...999.9 °C
    • Pt 100, Pt 1000, KTY 83 or KTY 84 in 2- or 3-wire configuration
    • Thermocouples Type B, E, J, K, L, N, R, S, T
    • Input signal DC 0-10 V; DC 0/4-20 mA
  • 2 Relay outputs (each 1 change-over contact)
  • 1 Analogue output DC 0-10 V or 0/4-20 mA for parameterizing (not potentially separated from the inputs)
  • Universal power supply AC/DC 24-240 V
  • Several selectable programs
  • Storage and indication of the measured MIN- und MAX-values
  • pluggable terminals

Technical data

Rated supply voltage UsAC / DC 24 - 240 V
Tolerance DC20, 4–297 V
Tolerance AC20 - 264 V 50/60 Hz
Power consumption< 3 W < 7 VA
Relay output2 x 1 styk przełączający
Switching voltagemax. AC 415 V.
Switching currentmax. 5 A.
Switching capacitymax. 1250 VA (obciążenie rezystancyjne)
maks. 120 W przy 24 V DC
UL electrical ratings:250 V ac, 5 A, rezystancyjny
E214025240 V ac, 1/2 KM
120 V ac, ¼ KM
B 300 - pilot, UL 508
EnclosureDesign V4, switchgear mounting
Mounting height55 mm
Width4 TE
Dimensions (width x height x depth)70 x 90 x 58 mm
Wire connection, one wireeach 1 x 1.5 mm2
Stranded wire with insulated ferruleseach 1 x 1.0 mm2
Torque0.5 Nm (3,6 lb.in)
Protection class housingIP 30
Protection class terminalIP 20
InstallationSnap mounting on mounting rail 35 mm according to EN 60 715 or with screws M 4 (additional bar in scope of delivery)
Weightapprox. 200 g
