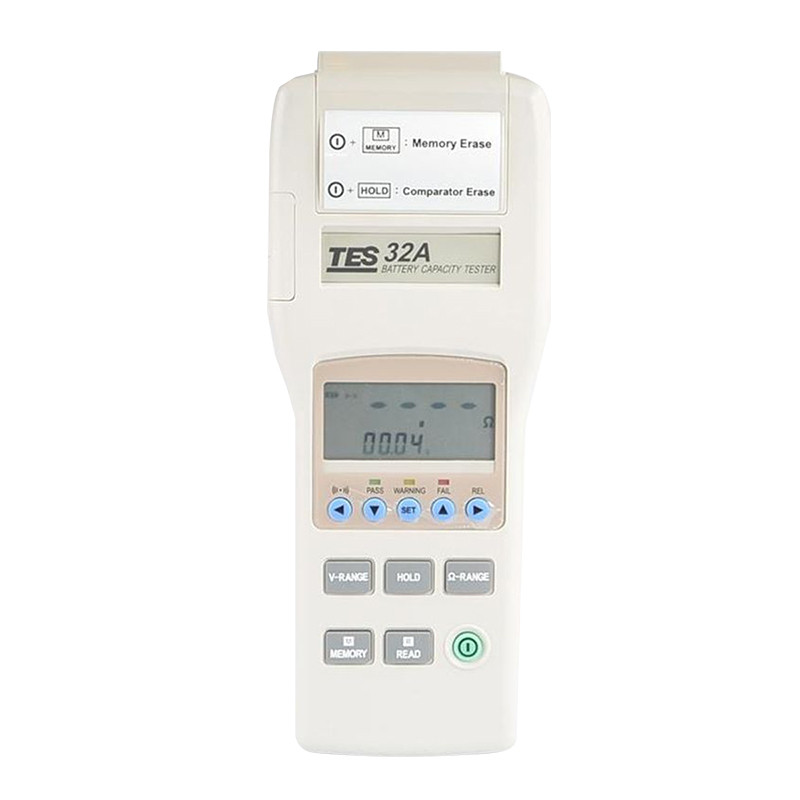

TES-32A - Accumulator capacity tester

TES-32A measures internal resistance and voltage on accumulators (NiMH,NiCd,Li-ion) terminals during open circuit.
Resistance is measured with AC and 4 wires with their resistance compensation function.
Double LCD display allows to simultaneously measure and read internal resistance and voltage.
Results can be compared with standard limits programmed in device memory, which allow for a quick evaluation of tester state(good, quite good, bad).
Tester allows to write in memory up to 500 sets of data, and 9600 sets of data with constant registration. Data can be transmitted to PC.


Properties
  • Internal resistance measurement 40mΩ ~ 40Ω (resolution.10µΩ)
  • Voltage measurement DC 4V~40V with 1mV resolution
  • Resistance measurement with 4 wire method
  • Zero compensation
  • HOLD function
  • COMPARATOR:memory of 99 sets of LO and HI for internal resistance, and HI for DC voltage. Accumulator state is displayed by colour LED green-PASS , LED yellow-WARNING , LED red-BAD
  • Acoustics singal for WARNING and BAD state
  • Manual register of 500 sets of data
  • Constant registration of 9600 set of dataZ
  • Optic interface RS 232 for PC connection
  • Interval selection 1s - 255s for constant registration
  • "OL" - over range signal
  • "—" -measurement errors indication
  • Automatic turn off

General data

Display Double LCD and 3 diodes LED
Sampling 1 time/s (simultaneous voltage and resistance measurement)
Operation environment 0°C~40°C, humidity 80%(without compensation)
Storage -10°C~50°C, humidity. 80% (without compensation)
Power supply 9V DC: 6 baterry1,5V LR 06 (tester)
Max current consumption 1,0VA
Constant operation time about 7 hours
Max operation height under 2000m n.p.m.
Dimensions 100x45x250mm (tester) [WxDxL]
Weight 500g
Equipment Measuring cables. crocodiles, Instr. Serv., batteries: 6x1, 6V LR06, RS 232 optical cable, software CD
Optional AC power supply
Specyfikacja elektryczna

Tested accumulators NiMH,NiCd,Li-ion
Accumulator capacity 0~1200Ah
Internal resistance Test current frequency 40,00m/400,0m/4,000/40,00Ω4mΩ:
±(1%ww±10c);1kHz±10%
DC voltage 4,000/40,00V ±(0,1 %ww ±6c)
Open circuit voltage 3,5Vpp DC max
