Thermoelectric or resistant temperature sensor. Type kt1
  • Thermoelectric or resistant temperature sensor. Type kt1

Photos are for informational purposes only. View product specification

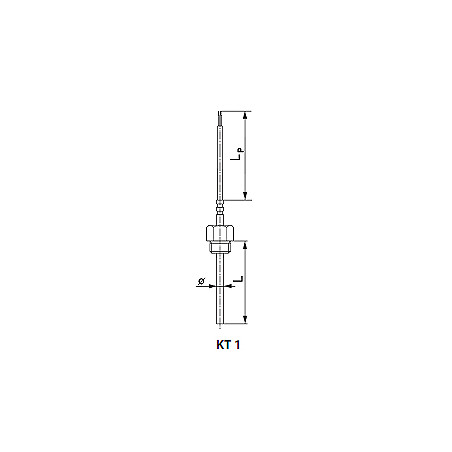

Thermoelectric or resistant temperature sensor. Type kt1

Thermo-element type:

Pt100 Pt500 Pt100 Ni100 Ni1000 K J T U

Sensor external diameter
1,5 2 3 4,5 6 9 10 12 14 15 other for client request
Sensor length and diameter
for client request
Thread type
M8x1 M10x1 M12x1 M14x1,5other for client request

Application:
Sensor is used in technology processes temperature measurement.

For resistant sensors - 2,3,4 cables execution. For thermo electric electric sensors immersion element in coat execution or other. Sensor cover material and wire type according to client request.

Order method
TypeTypeConnectionClassThreadSensor external diameter Ø [mm]Length  L/Lp [mm] pProtective pipe material
KT 1

Pt100
Pt500
Pt1000
Ni100
K
J
T
U

2 - 2 cable.
3 - 3 cable.
4 - 4 cable.

1
2
A
B

M8x1
M10x1
M12x1 M14x1,5

3
4,5
6
8

..../.... mm Metal 1.4301 1.4541 1.4841 1.4571 Inconel 600
