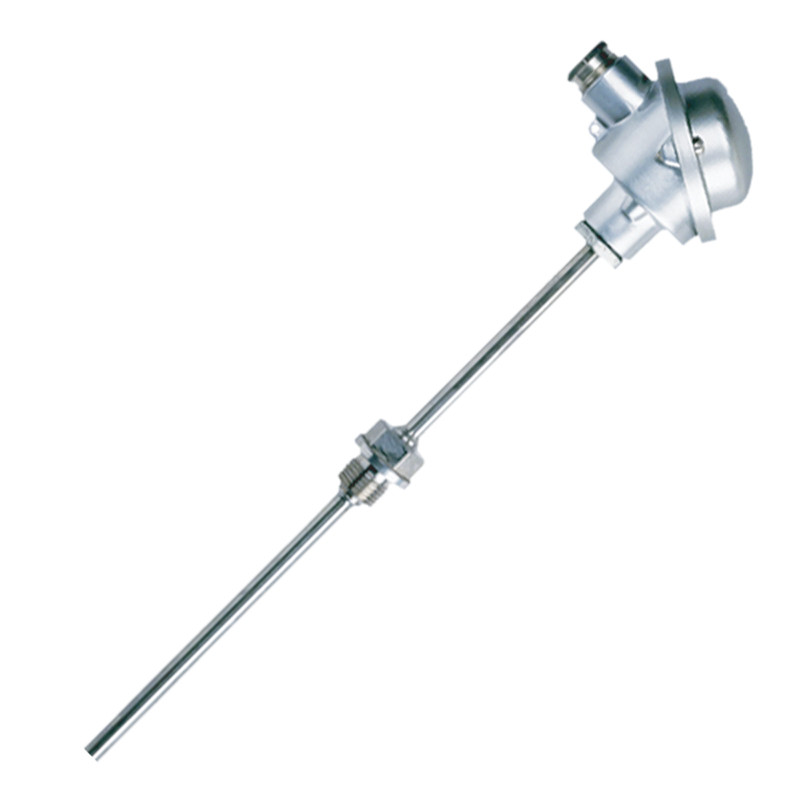

Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TD1
  • Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TD1

Photos are for informational purposes only. View product specification

Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TD1

Thermo-element type:
K, N, J, L
Thermo-electrode wire diameter
1,0 1,38 1,6 2,0 3,0
Sensor length:
for client request
standard execution:
insulated weld

Application:
Sensor is used in technology processes temperature measurement.
It is possible to make sensors in non standard version.

WD1 - changeable measurement insert

Order method
TypeInsert typeTypeClassLength L
[mm]
Wire diameter
Ø [mm]
HeadProtective shield diameter. [mm]Protective pipe material
TD 1 1 - single.
2 - double.
K
N
J
L
1
2
... ...mm 1,0
1,38
1,6
2,0
3,0
A
DA
DAW
B
DAN DANW
MA
GHP
A - D
8
10
15
18
20
22
Metal
1.305
1.4762 1.4841 1.4541 Inconel Hastelloy Kanthal Kanthal-super
