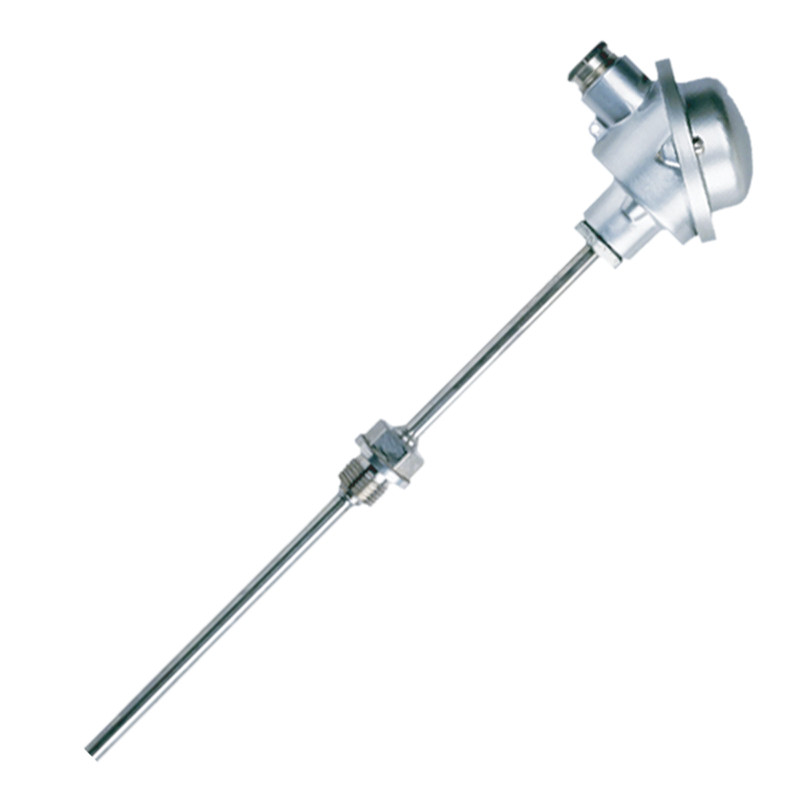

Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TD2
  • Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TD2

Photos are for informational purposes only. View product specification

Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TD2

Thermo-element type:
K, N, U, J, L, S, B, R
Thermo-electrode wire diameter
0,2  0,35  0,5  0,8   1,0   1,38 mm
Sensor length:
for client request
standard execution:
insulated weld



Application:
Sensor is used in technology processes temperature measurement

It is possible to make sensors in non standard version.

WD 1, WD 2 - changeable measurement insert

Order method
TypeInsert typeTypeClassLength L [mm]Wire diameter Ø [mm]HeadProtective shield diameter. [mm]Protective pipe material
TD 2 1 - single.
2 - double

K
N
J
L
S
B
R

 1
2		 ........ mm 0,25
0,35
0,5
0,8
1,0
1,38
1,6
2,0
3,0		 A
DA
DAW
B
DAN
DANW
MA
GHP
A - D

8
10
12
15
20

24

 Ceramic
C530
C610
C799
Less
