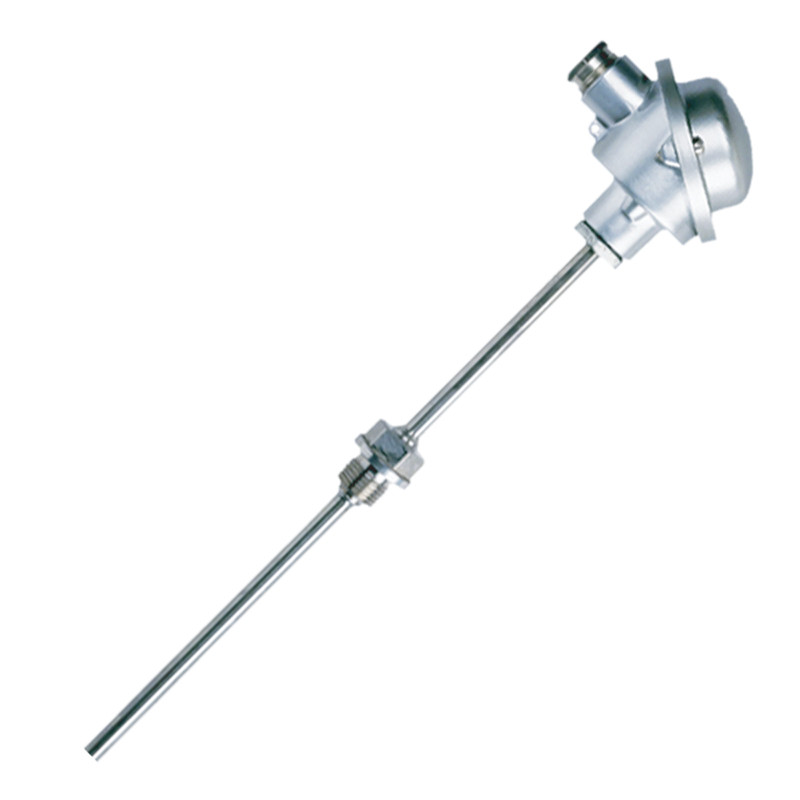

Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TP1
  • Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TP1

Photos are for informational purposes only. View product specification

Thermoelectric temperature sensor with replaceable measure jacket insert in a metal protective pipe TP1

Thermo-element type:
K, N, J, L, S
Thermo-electrode wire diameter
0,25; 0,5; 1; 1,5; 1,6; 2; 3; 3,2; 4,5; 5; 6; 8 mm
Sensor length:
for client request
standard execution:
insulated weld

Application:
Sensor is used in technology processes temperature measurement.

It is possible to make sensors in non standard version.

W1 PŁ -changeable measurement insert

Order method:
TypeInsert typeTypeClassLength L [mm]Wire diameter
Ø [mm]		HeadProtective shield diameter [mm]Protective pipe material
TP 1 1 - single.
2 - double.		 K
N
J
L		 1
2		 ... ...mm

0,25
0,5
1,0
1,5
1,6
2,0
3,0
3,2
4,5
6
8

A
DA
DAW
B
DAN DANW
MA
GHP
A - D

 8
10
15
18
20
22		 Metal
1.305
1.4762 1.4841 1.4541 Inconel Hastelloy Kanthal Kanthal-super
Less
