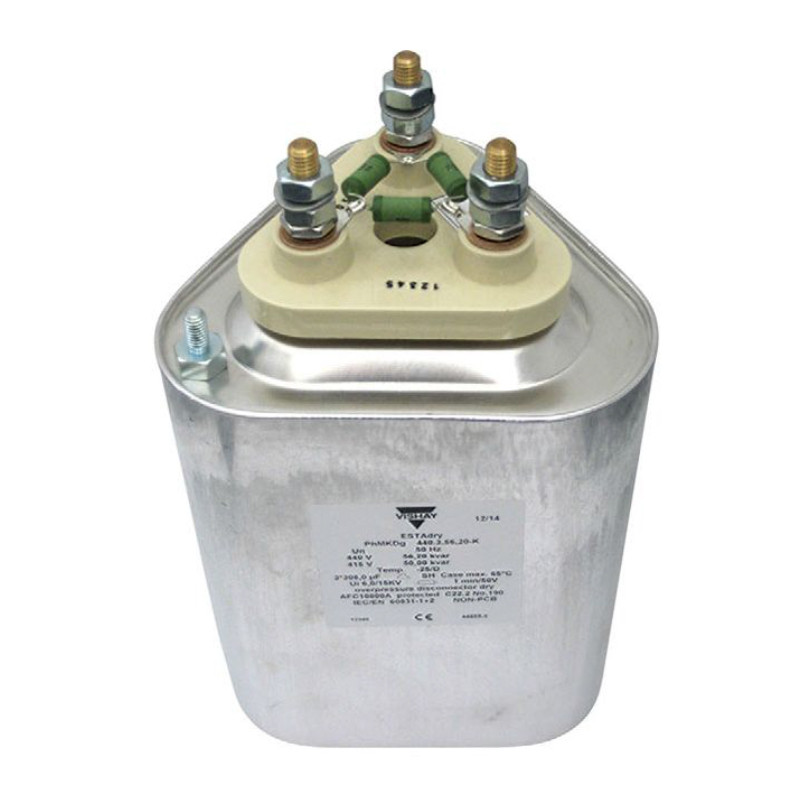

Three phase capacitors for power factor correction - D series

THREE PHASE CAPACITORS FOR POWER FACTOR CORRECTION - D SERIES

Electrical data
Voltage range:
400V, 415V, 440V, 460V, 525V, 690V, 760V
Operation frequency
50Hz
Power:
50kVAR
IP
IP00 (na życzenie IP54)
Dielectric
polypropylene foil
Operation temperature
-25°C - 55°C
Test current
200 x IN
Voltage test:
(terminal - terminal) 2.15 x UN/2s

(terminal - casing) 6000V/10s


TypeVoltage
[kV]
Power
[kVAR]
Capacity
[µF]
Current
[A]
Weight
[kg]
PhMKDg 400.3.50 400 50 3x331 ∆ 72 4,9
PhMKDg 415.3.50 415 50 3x308 ∆ 70 4,9
PhMKDg 440.3.50 440 50 3x274 ∆ 66 4,9
PhMKDg 440.3.56,2 440 56,2 3x308 ∆ 74 4,9
PhMKDg 460.3.50 460 50 3x250 ∆ 63 4,9
PhMKDg 525.3.50 525 50 3x192 ∆ 55 4,9
PhMKDg 690.2.50 690 50 3x331 Y 42 4,9
PhMKDg 760.2.50 760 50 3x274 Y 38 4,9

Area to assemble

Discharge resistors
