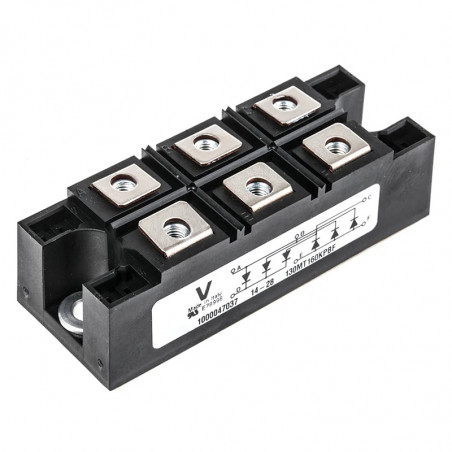

Photos are for informational purposes only. View product specification

Three phase full and half controlled

THREE PHASE FULL AND HALF CONTROLLED BRIDGE RECTIFIERS

Table. Electrical Data


Bridge typeIO
[A]
URRM
[V]
ITSM
[A]
I2t
[A2s]
I GT
[mA]
duD/dt
[V/µs]
Rthjc
[°C/W]
Rthcs
[°C/w]
Screw torque
[Nm]
Casing
53MT...K 52MT...K 51MT...K 55 800-1600 390 770 60 500 0,179 0,033 4-6 INT-A-Pak
93MT...K 92MT...K 91MT...K 90 800-1600 950 4525 100 500 0,144 0,033 4-6
113MT...K 112MT...K 111MT...K 110 800-1600 1130 6380 100 500 0,117 0,033 4-6
54MT...K 50 800-1600 390 770 60 500 0,524 0,033 4-6
94MT...K 90 800-1600 950 4525 100 500 0,385 0,033 4-6
104MT...K 100 800-1600 1130 6380 100 500 0,344 0,033 4-6



D-63
INT-A-Pak
