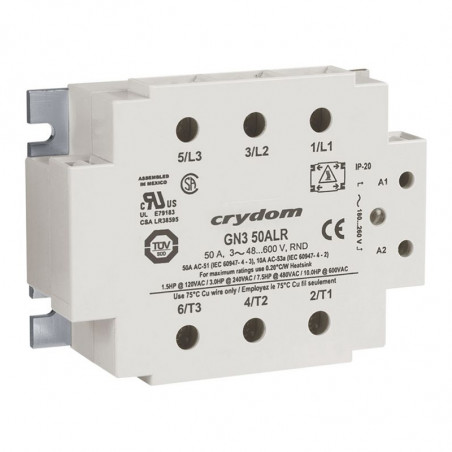

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

Three phase semiconductor relays - gn3 series

DC Control voltage



Output parameters

Load current (40 °C)
25A50A
Voltage
48-600Vac 48-600Vac
Peak voltage (Vpk , t = 1 min.)
1100 1100
Min current [mArms]
100 100
Test current
(Apk, Ta = 25°C)
275-300 710-750
I2T [A2s]
380-370 2520-2320
Terminal/casing thermal resistance[ °C/W]
0.24 0.12



Output parameters

Control voltage
4-32Vdc
Min Input current
24mA
Max Input current
35mA
Input resistance
Current regulator



General parameters

Operation temperature range °C
-40 4- +80
I/O insulation voltage
2500 Vrms
I/O insulation voltage to metal base
4000 Vrms
I/O capacity
8pF (typical)
Operation frequency range
47 4- 63Hz
Casing material
UL 94V0 (self extinguished)
Weight
360g

Marking
Turn on at 0 voltage

w

i

t

h

s
n
u
b
b
e
r

a
Nominal currentNapięcie wyjścioweOutput voltageMarking
25 A 48-600 VAC 4-32Vdc GN325DLZ
50 A 48-600 VAC 4-32Vdc GN350DLZ
Załączane natychmiast
25 48-600 VAC 4-32Vdc GN325DLR
50 48-600 VAC 4-32Vdc GN350DLR

Marking
Turn on at 0 voltage

w

i

t

h

s
n
u
b
b
e
r

Nominal currentOutput voltageControl voltageMarking
25 A 48-530 VAC 4-32Vdc GN325DLR
50 A 48-530 VAC 4-32Vdc GN350DLR
immediate turn on
25 48-530 VAC 4-32Vdc GN325DSR
50 48-530 VAC 4-32Vdc GN350DSR

AC Control voltage


Output parameters

Load (40 °C)
25A50A
Voltage 48-600Vac 48-600Vac
Peak voltage (Vpk , t = Imin.)
1100 1100
Nominal current [mArms]
100 100
Test current(1 cykl)
(Apk, Ta = 25°C)
275-300 710-750
I2T [A2s]
380-370 2520-2320
Terminal/casing thermal resistance[ °C/W]
0.24 0.12


Output parameters

Control voltage
18-36VAC 90-140VAC 180-280VAC
Min Input current
15mA 7mA 7mA
Max Input current
20mA 16mA 20mA
Input resistance
Current regulator


General parameters

Operation temperature range
-40 4- +80
I/O insulation voltage
4200Vrms
I/O insulation voltage to metal base
4000 Vrms
I/O capacity
8pF
Operation frequency range
47 4- 63Hz
Casing material
UL 94V0
Weight
360g
Marking

Turn on at 0 voltage

w

i

t

h

o

u

t


s
n
u
b
b
e
r

Nominal currentOutput voltageControl voltageMarking
25 A 48-600Vac 180-260VAC GN325ALZ
25 A 48-600Vac 90-140VAC GN325BLZ
25 A 48-600Vac 18-36Vac GN325ELZ
50 A 48-600Vac 180-260VAC GN350ALZ
50 A 48-600Vac 90-140VAC GN350BLZ
50 A 48-600Vac 18-36Vac GN350ELZ
Immediate turn on
25 A 48-600Vac 180-260VAC GN325ALR
25 A 48-600Vac 90-140VAC GN325BLR
25 A 48-600Vac 18-36Vac GN325ELR
50 A 48-600Vac 180-260VAC GN350ALR
50 A 48-600Vac 90-140VAC GN350BLR
50 A 48-600Vac 18-36Vac GN350ELR

Turn on at zero voltage

w

i

t

h

s
n
u
b
b
e
r

Nominal currentOutput voltageControl voltageMarking
25 A 48-530Vac 180-260VAC GN325ASZ
25 A 48-530Vac 90-140VAC GN325BSZ
25 A 48-530Vac 18-36Vac GN325ESZ
50 A 48-530Vac 180-260VAC GN350ASZ
50 A 48-530Vac 90-140VAC GN350BSZ
50 A 48-530Vac 18-36Vac GN350ESZ
immediate turn on
25 A 48-530Vac 180-260VAC GN325ASR
25 A 48-530Vac 90-140VAC GN325BSR
25 A 48-530Vac 18-36Vac GN325ESR
50 A 48-530Vac 180-260VAC GN350ASR
50 A 48-530Vac 90-140VAC GN350BSR
50 A 48-530Vac 18-36Vac GN350ESR

Wymiary mechaniczne


Zależność prądu obciążenia od temperatury otoczenia
