Traction Fuses Series 170M, 2400VDC, from 100A to 400A
  • Traction Fuses Series 170M, 2400VDC, from 100A to 400A

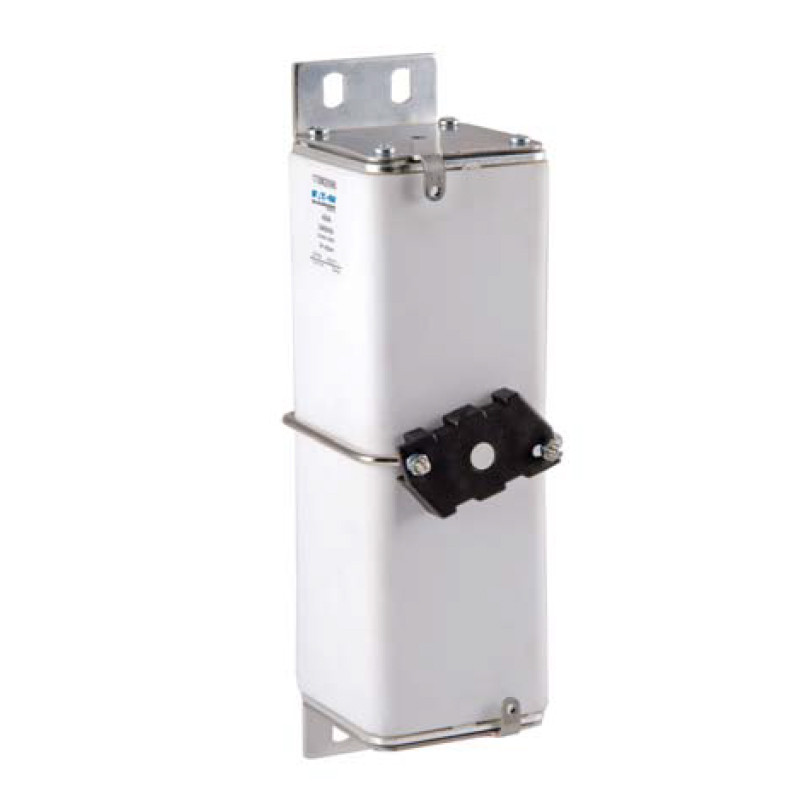

Photos are for informational purposes only. View product specification

Manufacturer: EATON Bussmann

Traction Fuses Series 170M, 2400VDC, from 100A to 400A

  • Nominal current: 200-600A

  • Rated voltage: 2400VDC

  • Breaking capacity: 100kA at 2400Vdc, L / R < 15ms100kA at 2000Vdc, L / R


CodeRated voltage [Vdc]Rated current [A]I2t[A2s]Watts Loss[W]
Pre-ArcingTotal at2000V0,8lnln

170M2090

2400 100 5468 15,457 20 39

170M2091

160 16,427 46,439 43 84

170M2092

200 25,667 72,561 53 97

170M2093

250 36,96 104,488 60 103

170M2094

315 66,977 189,346 82 162

170M2095

350 87,48 247,309 89 175

170M2096

400 110,717 313 103 203

Bezpieczniki trakcyjne sererii 170M, 2400Vdc, od 100A do 400A wymiar
