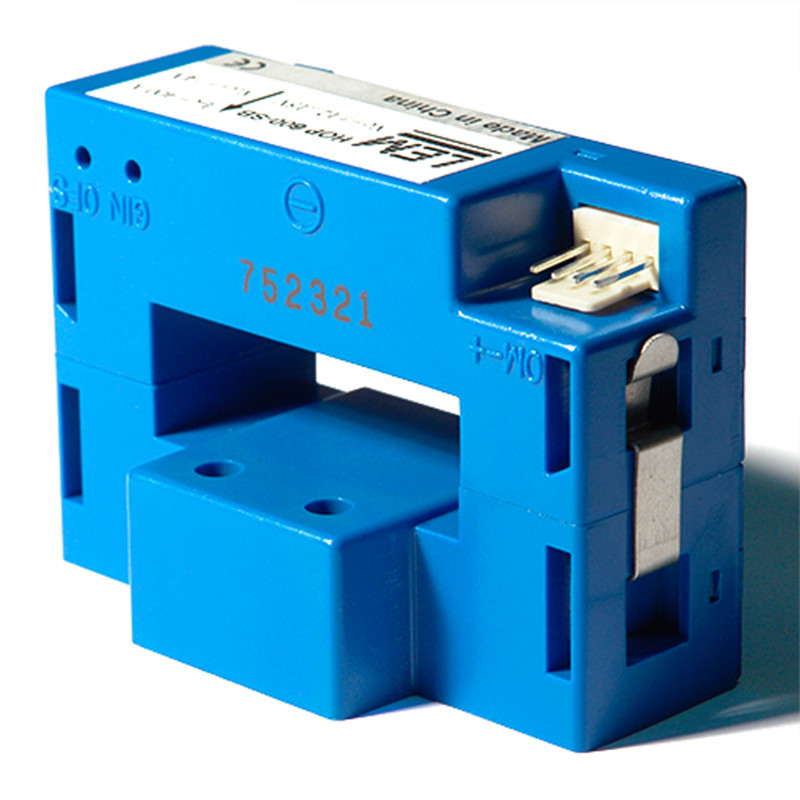

LEM HOP

HOP 200-SB

HOP 300-SB

HOP 400-SB

HOP 500-S

HOP 600-SB

Primary nominal  current rms IPNsk 200A 300A 400A 500A 600A
Primary current,measuring range IPmax ±300A ±450A ±600A ±750A ±900A

Mechanical characteristics
• General tolerance
± 1 mm
• Primary through hole
41 x 12.5 mm
• Busbar fastening or panel mounting
2 holes ø4
• Connection of secondary
MOLEX 5045-04/AG

Remarks
VOUT is positive when IP flows in the direction of the arrow.
The return busbar and primary conductor elbow must be  located at least at 2.5 x window length more far away from the transducer case.
Temperature of the primary busbar cannot exceed 90°C.
Dynamic performances are best with a primary busbar completely filling the primary aperture.
This is a standard model. For different versions (supply voltages, different output, unidirectional measurements ...), please contact us.


Dimensions[mm]
