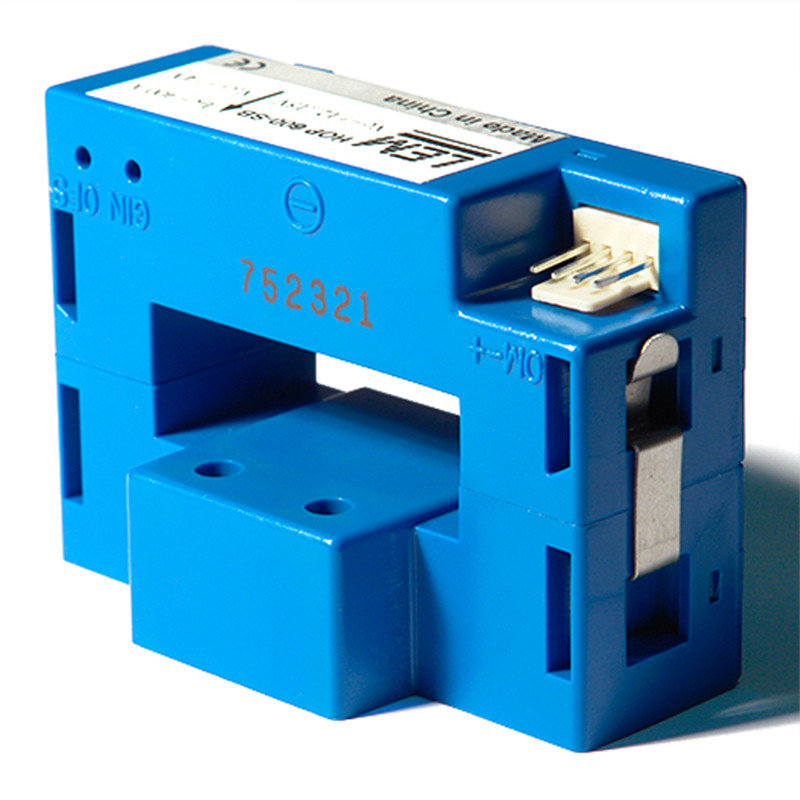

Transducers - HOP 500-SB/SP1 and HOP 800 to 2000-SB



HOP 500-SB/SP1

HOP 800-SB

HOP 1000-SB

HOP 1500-SB

HOP 2000-SB

Primary nominal current rmsIPNSK 500A 800A 1000A 1500A 2000A
Primary current measuring range,IPMAX ±1000A ±1600A ±2000A ±3000A ±3000A

Mechanical characteristics
• General tolerance
± 1 mm
• Primary through hole
104 x 40 mm
• Busbar fastening or panel mounting
1 hole ø5,5 i 2 slot 5,5 x 30
• Panel mounting
4 holesy ø3,2
• Distance between holes axes
15 x 150 mm
• Secondary connection
MOLEX 5045-04AG

Remarks
VOUT is positive when IP flows in the direction of the arrow.
The return busbar and primary conductor elbow must be
located at least at 2.5 x window length more far away from the transducer case.
Temperature of the primary busbar cannot exceed 90°C.
• Parametry dynamiczne są najlepsze gdy szyna pierwotna wypełnia całkowicie okno przetwornika
Dynamic performances are best with a primary busbar completely filling the primary aperture.


DImensions [mm]

LEM HOP
